Product Details:
Payment & Shipping Terms:
|
| Motor: | AC Motor | Drill Hole Diameter: | <100mm |
|---|---|---|---|
| Drill Hole Depth: | 30-50m | Bit Type: | Drag Bit |
| Drilling Way: | Impactor | Type: | Pillar Type Gasoline |
| Highlight: | Pillar Type Transmission Line Stringing Tools,Gasoline Portable Sampling Rig,Gasoline Portable Sampling Rig 50m |
||

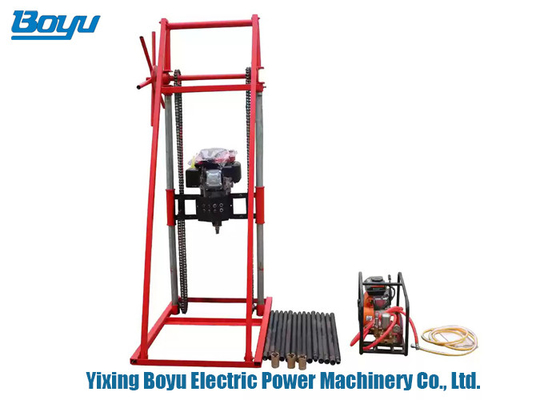

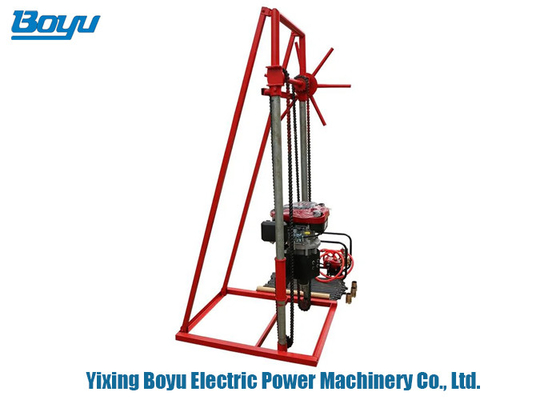

Transmission Line Stringing Tools Pillar Type Gasoline Portable Sampling Rig
Backpack Sampling Rig Drill with CE
The hand-held sampling rig can take soil samples, core samples, and guide holes for grouting. It is a multi-purpose micro-engineering rig. A core drilling rig that can be operated by 2 people, with a drilling depth of up to 20 meters.
Product Accessories Advantages
The accessories of the lawn mowers we use are all brand-name accessories with good quality, which will not be damaged if there is no artificial damage. Once there is damage, you can take a video to us first, and we will guide you to repair, if necessary Replacement accessories, we can provide you with accessories for free.
| Drilling diameter(mm) | 45-108 | ||
| Drilling Depth(m) | 30 | ||
| Drill pipe diameter(mm) | 32 | ||
| Gasoline engine | Displacement(cc) | 224 | |
| Horsepower(HP) | 6(4.5KW) | ||
| Rig weight(KG) | 100 | ||
| Name | Model | Unit | Quantity |
| Gasoline Engine Sampling Rig | P-ZC-30B | Set | 1 |
| Drill pipe | φ32*750 | Piece | 20 |
| Lock takeover | φ40 | Piece | 20 |
| Head | φ45male/38 famale | Piece | 2 |
| Core tube | 0.75m/pieceφ45 | Piece | 1 |
| Alloy drill | φ46 | Piece | 1 |
| Head | φ60male/38fama le | Piece | 1 |
| Core tube | 0.75m/pieceφ60 | Piece | 1 |
| Alloy drill | φ60 | Piece | 1 |
| Sweeper bit | φ73 | Piece | 1 |
| Manual winc h | Piece | 1 | |
| Wire rope | Set | 1 | |
| Pulley | Pjece | 1 | |
| Fork | Pjece | 1 | |
| Fork | Piece | 1 | |
| Steering wheel | Set | 1 | |
