| Type: | Conductors Steel Reinforced | Code: | 160/40 |
|---|---|---|---|
| Areas: | 199.16mm2 | Diameter: | 17.04mm |
| Breaking Load: | 65.06kN | Weight: | 730Kg/km |
| High Light: | Conductors Steel Reinforced,Transmission Line Stringing Tools Conductors,160/40 Conductors Steel Reinforced |
||

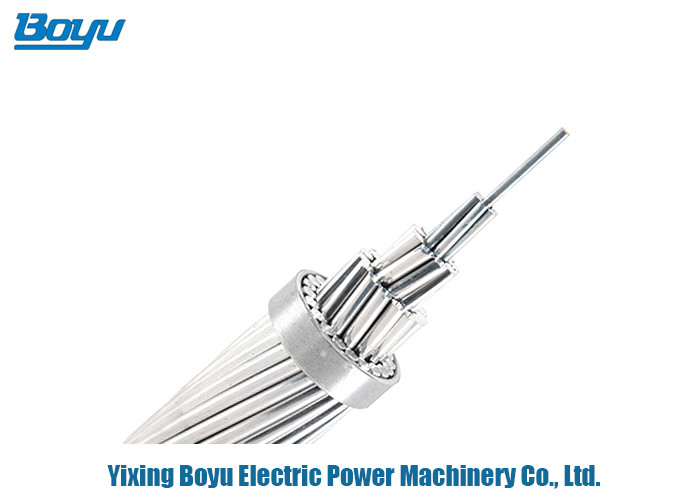

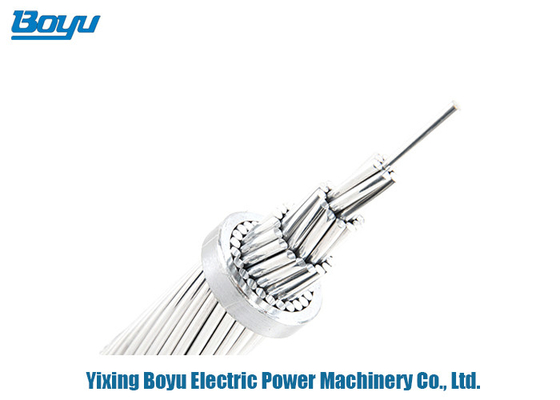

Transmission Line Stringing Tools Conductors Steel Reinforced Breaking Load 65.06kN
Conductor Type:
AAC-All Aluminum Conductors
AAAC -All Aluminum Alloy Conductors
ACSR- Aluminum Conductors Steel Reinforced
ACSR/AW -Aluminum Conductors Aluminum Clad Steel Reinforced
ACAR-All Aluminum Conductor Alloy Reinforced
AACSR-Aluminum Alloy Conductors Steel Reinforced
GSW-Zinc-Coated (Galvanized) Steel Overhead Ground Wire Strand
ACS-aluminum-clad steel conductors
Technical details
Invar Conductor
Invar Conductor made is a kind of special overhead conductor stranded with high-strength aluminum-clad invar core and super thermal resistant aluminum alloy wire. It takes advantage of the low linear expansion coefficient of invar material to make "low sag" and uses a thermal resistant aluminum alloy to have " large-capacity", making full use of original transmission line and tower resources and saving space. It has the feature of doubling capacity with the same diameter and the same sag, which can ensure power transmission at peak season.
Characteristics
2 times current carrying capacity without increasing sag.
More economical for fittings.
Easier installation than ACCC Conductor.
More reliable operation experience.
In compliance with or exceeding the industry’s most stringent requirements, including:
IEC 62004
IEC 61089
IEC 62219
Q/320623-AP25
Applications
Reconstruction of old transmission lines.
Capacity increasing transmission line.
| Code | Structure | Areas | Diameter | Breaking load |
DC resistance at 20℃ |
Weight | Curent capacity | |||
| Al | Steel | TACIR | ZTACIR | |||||||
| Nos/mm | mm2 | mm | kN | 2/km | Kg/km | A | ||||
| 160/40 | 18/337 | 7/2.65 | 199.16 | 17.04 | 65.06 | 0.1759 | 730 | 71 | 957 | |
| 200/45 | 17/387 | 7/285 | 244.62 | 18.87 | 76.87 | 0.1412 | 883 | 890 | 1105 | |
| 200/50 | 17/387 | 7/295 | 24781 | 19.01 | 80.39 | 0.1409 | 906 | 892 | 1110 | |
| 250/45 | 18/420 | 7/285 | 294.04 | 20.64 | 8264 | 0.1141 | 1019 | 1017 | 1268 | |
| 250/40 | 18/4.13 | 7/275 | 290.96 | 20.51 | 8112 | 0.1143 | 996 | 1014 | 1264 | |
| 240/55 | 18/4.13 | 7/3.20 | 29743 | 20.82 | 9312 | 0.1169 | 1083 | 1007 | 1138 | |
| 240/50 | 18/471 | 7/3.00 | 290.62 | 20.55 | 88.13 | 0.1157 | 1032 | 1000 | 1131 | |
| 315/55 | 18/471 | 7/3.20 | 396.92 | 2315 | 104.06 | 0.0907 | 1266 | 1182 | 1479 | |
| 315/50 | 18/471 | 7/3.00 | 36310 | 2291 | 97.20 | 0.0910 | 1232 | 1176 | 1471 | |
| 330/60 | 18/481 | 7/330 | 386.95 | 2368 | 10970 | 0.0869 | 1329 | 1216 | 1522 | |
| 350/55 | 20/471 | 7/3.20 | 404.77 | 2419 | 10933 | 0.0819 | 1379 | 1262 | 1580 | |
