| Type: | Stock Bridge Damper | Application: | Transmission Line |
|---|---|---|---|
| Applicable Conductor: | 7.0-12.0 | Weight: | 0.7kg |
| High Light: | Stringing Tools Stock Bridge Damper,Stock Bridge Damper,Shock-proof Damper |
||

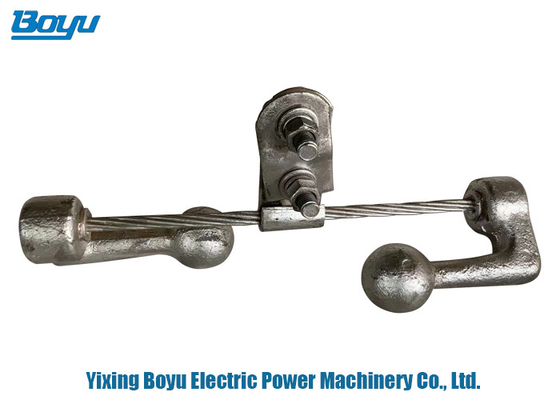

Transmission Line Stringing Tools Stock Bridge Damper/Shock-proof Damper
Spacer Damper FDZ Series
A common and undesirable phenomenon in overhead transmission lines is the high frequency and short wave vibration of conductors, shields and overhead communication cables due to natural wind currents. This phenomenon is extremely easy to happen and unavoidable.
FDZ series combined spacing damper is suitable for all conductor and ground wire structures. Including: ACSR, AAC, AAAC, AACSR (reinforced aluminum alloy conductor steel).
| Item No. | Applicable Conductor | Dimensions(mm) | Specification | Weight(kg) | Specification | |||
| a | h | L1 | L | |||||
| FDZ-1 | 7.0-12.0 | 50 | 66 | 120 | 320 | 19/1.8 | 0.7 | 1.8 |
| FDZ-2 | 11.0-15.0 | 50 | 66 | 130 | 350 | 19/1.8 | 0.9 | 2.3 |
| FDZ-3 | 14.0-19.0 | 60 | 66 | 150 | 430 | 19/2.2 | 1.7 | 4.4 |
| FDZ-4 | 18.0-22.5 | 60 | 66 | 160 | 470 | 19/2.2 | 2.1 | 5.5 |
| FDZ-5F | 22.0-29.0 | 60 | 95 | 180 | 520 | 19/2.6 | 3 | 7.1 |
| FDZ-6F | 28.0-35.0 | 60 | 95 | 180 | 520 | 19/2.6 | 3.6 | 8.3 |
| FDZ-1T | 7.8 | 60 | 30.7 | 120 | 320 | 19/1.8 | 0.7 | 1.8 |
| FDZ-2T | 9.0-9.6 | 60 | 30.7 | 130 | 350 | 19/1.8 | 0.9 | 2.3 |
| FDZ-3T | 11.0-11.5 | 60 | 44.7 | 150 | 430 | 19/2.2 | 1.7 | 4.4 |
| FDZ-4T | 13 | 60 | 44.7 | 160 | 470 | 19/2.2 | 2.1 | 5.5 |
Stockbridge Damper Instructions/Descrption
|
|
|
|
|
|
|
|
|
