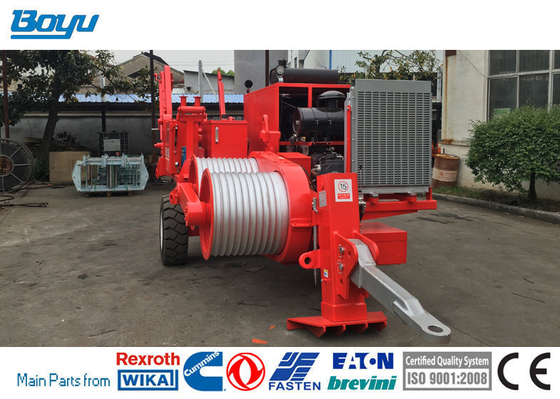

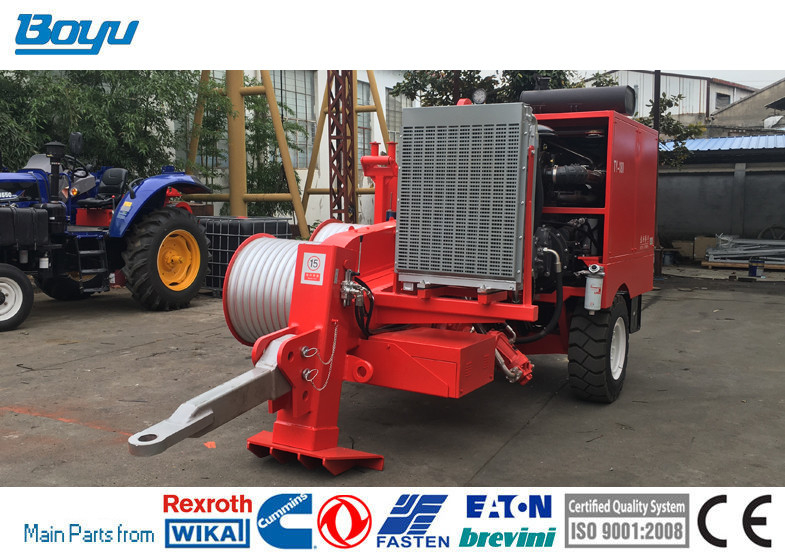

Max Pulling Force 180kN Hydraulic Puller Mahcine For Overhead Line Construction

Max Pulling Force 180kN Hydraulic Puller Mahcine For Overhead Line Construction
Max Pulling Force 180kN Hydraulic Puller Mahcine For Overhead Line Construction Max Pulling Force 180kN Hydraulic Puller Mahcine For Overhead Line Construction

Large Image :  Max Pulling Force 180kN Hydraulic Puller Mahcine For Overhead Line Construction

Product Details:
Place of Origin: China
Brand Name: Boyu
Certification: ISO9001
Model Number: TY180
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Container
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 100sets/month.
Detailed Product Description
Type: Hydraulic Puller Mahcine For Overhead Line Construction Max Intermittent Pulling Force: 180kN
Max Diameter Of Applicable Pulling Rope: 30mm Pull At Max Speed: 75 KN
Engine Starting: 24V Electric Starting Weight: 7800kg
High Light:

180kN Hydraulic Puller

,

Hydraulic Cable Puller For Overhead Line

,

24V electric starting Hydraulic Cable Puller

Max Pulling Force 180kN Hydraulic Puller Mahcine for Overhead Line Construction





Main technical performance parameter

Max intermittent pulling force

180kN



Max continuous pulling force

150 kN



Speed at max pull

2.5 km/h



Max speed

5 km/h



Pull at max speed

75 kN



Structure parameter

Bull-wheel diameter

750mm



Groove number

10



Max diameter of applicable pulling rope

30mm



Weight

7800kg



Overall dimension (length×width×height)

4800×2350×2550 mm


Engine

Type

Cummins 6L8.9AA-C325



Cylinder diameter × stroke

114×144.5 mm



Total air output

8.9 L



Rated speed

2200 r/min



Rated power (one hour power)

239 kw



Max torque

1230Nm



Rotary speed when maximum torque

1400 r/min



Fuel consumption rate (bench test)

225g/kw.h


Drive system

Closed type circuit hydraulic drive system adjusts speed through hydraulic plunger pump with bi-directional variable displacement, reduces speed through planet gear and drives pulling wheels to rotate in positive and negative directions through the first level gear terminal drive.



Cooling mode

forced cooling



Main pump



Model

sloping cam plate bi-directional plunger pump (German Rexroth)



Type

A4VG250HDDT1/32R



Hydraulic motor



Model

inclined-axis bi-directional constant displacement tapered plunger motor (German Rexroth)



Type

A2FE160/61W-VZL106



Speed reducer



Model

two-grade planet gear reduction (German Rexroth)



Type

GFB60T2B24-06



Reduction ratio

34



Brake response pressure

1.8Mpa


Auxiliary oilway hydraulic system

Open type constant displacement throttle speed governing hydraulic system is supplied oil by gear pump and controls oil liquor’s cooling and hoisting tail bracket’s lifting of the whole hydraulic system through hand operated direction valve and ball valve.



System working pressure

12Mpa



Duplex gear pump

1PF2G2-4X/016+014RR20MRL



Fan motor

GM5-12-1FE13-S-20



Hoisting motor

J2K-305



Sleeve extension oil cylinder

3TG110×250



Radiator

B5024



Electric system

System voltage

24V



Storage battery

6-QA-120(2 pcs)



Engine starting

24V electric starting



Max Pulling Force 180kN Hydraulic Puller Mahcine For Overhead Line Construction 0
