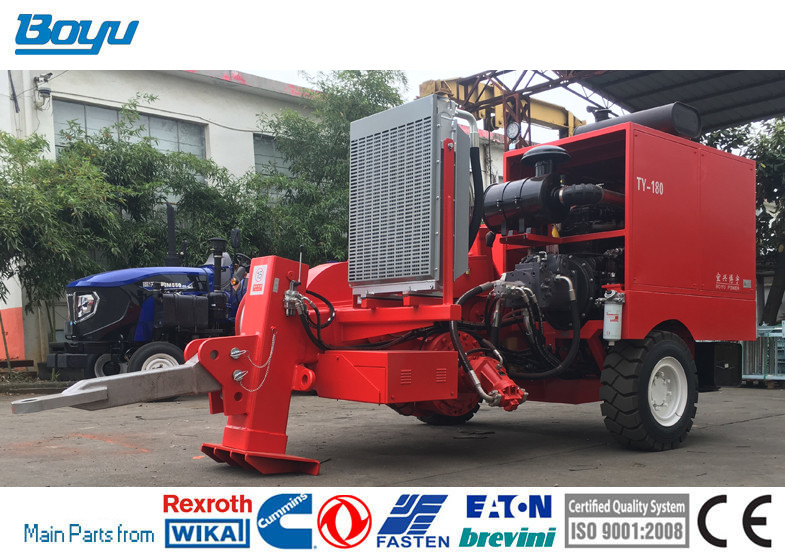

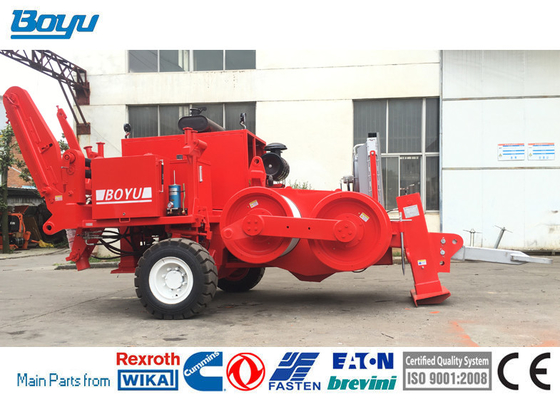

Groove Number 10 Hydraulic Cable Puller With 24V Electric Starting Engine

Groove Number 10 Hydraulic Cable Puller With 24V Electric Starting Engine
Groove Number 10 Hydraulic Cable Puller With 24V Electric Starting Engine Groove Number 10 Hydraulic Cable Puller With 24V Electric Starting Engine

Large Image :  Groove Number 10 Hydraulic Cable Puller With 24V Electric Starting Engine

Product Details:
Place of Origin: China
Brand Name: Boyu
Certification: ISO9001
Model Number: TY180
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Container
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 100sets/month.
Detailed Product Description
Type: Hydraulic Cable Puller With Engine Engine: Cummins 6L8.9AA-C325
Max Torque: 1230Nm Max Intermittent Pulling Force: 180kN
Pull At Max Speed: 75 KN Max Diameter Of Applicable Pulling Rope: 30mm
High Light:

Groove Number 10 Hydraulic Cable Puller


Hydraulic Cable Puller with Engine


180kN hydraulic wire puller

Hydraulic Cable Puller with 24V Electric Starting Engine Groove Number 10


Structure parameter

  • Bull-wheel diameter 750mm
  • Groove number 10
  • Max diameter of applicable pulling rope 30mm
  • Weight 7800kg
  • Overall dimension (length×width×height) 4800×2350×2550 mm

Main technical performance parameter

  • Max intermittent pulling force 180kN
  • Max continuous pulling force 150 kN
  • Speed at max pull 2.5 km/h
  • Max speed 5 km/h
  • Pull at max speed 75 kN


  • Type Cummins 6L8.9AA-C325
  • Cylinder diameter × stroke 114×144.5 mm
  • Total air output 8.9 L
  • Rated speed 2200 r/min
  • Rated power (one hour power) 239 kw
  • Max torque 1230Nm
  • Rotary speed when maximum torque: 1400 r/min
  • Fuel consumption rate (bench test) 225g/kw.h

Drive system

Closed type circuit hydraulic drive system adjusts speed through hydraulic plunger pump with bi-directional variable displacement, reduces speed through planet gear and drives pulling wheels to rotate in positive and negative directions through the first level gear terminal drive.

  • Cooling mode forced cooling

Main pump

  • Model sloping cam plate bi-directional plunger pump (German Rexroth)
  • Type A4VG250HDDT1/32R

Hydraulic motor

  • Model inclined-axis bi-directional constant displacement tapered plunger motor (German Rexroth)
  • Type A2FE160/61W-VZL106

Speed reducer

  • Model two-grade planet gear reduction (German Rexroth )
  • Type GFB60T2B24-06
  • Reduction ratio 34
  • Brake response pressure 1.8Mpa

Electric system

  • System voltage 24V
  • Storage battery 6-QA-120(2 pcs)
  • Engine starting 24V electric starting

Auxiliary oilway hydraulic system

Open type constant displacement throttle speed governing hydraulic system is supplied oil by gear pump and controls oil liquor’s cooling and hoisting tail bracket’s lifting of the whole hydraulic system through hand operated direction valve and ball valve.

  • System working pressure 12Mpa
  • Duplex gear pump 1PF2G2-4X/016+014RR20MRL
  • Fan motor GM5-12-1FE13-S-20
  • Hoisting motor J2K-305
  • Sleeve extension oil cylinder 3TG110×250
  • Radiator B5024



1. The puller is comprised of engine, closed-type hydraulic system, speed reducer drive system, pulling wheel, coiling mechanism of pulling rope, operation system and mainframe. The main puller and coiling mechanism of pulling ropes make up a whole. There is hydraulic lifting stabilizer in the forepart of frame, double stabilizer in the rear part, when working, you can adjust them to working location. The whole machine has compact layout, reasonable space position and operation convenience.

2. The puller adopts installation mode of two-wheel single spindle trailer to be convenient for trans-field transportation. Pulling wheel, engine, hydraulic oil tank and operation board are reasonably arranged on both sides of main girder to make complete machine realize single-point hoisting and convenient hoisting transportation and reduce length of complete machine. The strength safety coefficient of anchor point is big, safe and reliable.

3. The pulling wheel, through special technological treatment, is rustless and abrasion resistant.

4. The pulling wheel can rotate in positive and negative directions, pull pulling rope and deliver pulling rope, and the pulling force can be preset and displayed visually from pressure gauge.

5. The puller is hydraulic drive type, adopts German Rexroth hydraulic control sloping cam plate variable displacement pump, inclined-axis hydraulic motor to form closed type circuit hydraulic drive system. It has advanced technique, power saving, high drive efficiency, reliable quality and self overload protection function to avoid damage of hydrodynamic shock and acceleration of oil temperature rise.

6. Adopt German Rexroth planetary speed reducer with compact structure and reliable quality.

7. Adopt international advanced hydraulic servo control for pulling or backing the machine at present and realize smooth regulation and operation convenience, flexibility and reliability of pulling speed.

8. Adopt friction plate type wet brake; integrated in planetary speed reducer; being free of routine maintenance, with spring brake, hydraulic pressure release, easy operation and rapid reaction speed; zero clearance brake can be realized, safe and reliable. In stopped state, conductor-sliding off accident arising from release of tail rope can be avoided. When the engine flames out suddenly or fails, the brake owns automatic brake protection function.

9. The control handle adopts locating design to be convenient for timely and accurate regulation and control, easy operation and reducing fatigue strength of operator. The operation board can be opened directly from the front to be convenient for inspection and maintenance.

10. Adopt aluminum alloy plate fin radiator. The radiator is carried out forced cooling through hydraulic motor drive fan, with good heat radiation effect and long steady operation time, and can conveniently and in time regulate air output of fan according to practical environment and working temperature.

11. All kinds of hydraulic filters have by-pass value to protect the system free from damage.
