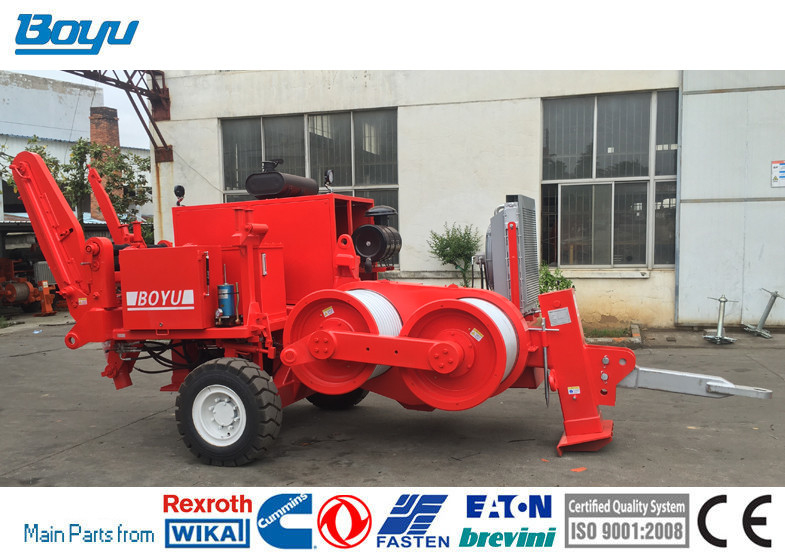

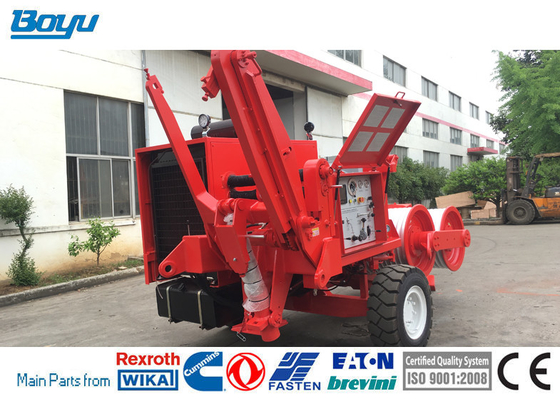

Stringing Equipment Hydraulic Cable Puller With Cummins Engine

Stringing Equipment Hydraulic Cable Puller With Cummins Engine
Stringing Equipment Hydraulic Cable Puller With Cummins Engine Stringing Equipment Hydraulic Cable Puller With Cummins Engine

Large Image :  Stringing Equipment Hydraulic Cable Puller With Cummins Engine

Product Details:
Place of Origin: China
Brand Name: Boyu
Certification: ISO9001
Model Number: TY180
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Container
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 100sets/month.
Detailed Product Description
Type: Stringing Equipment Hydraulic Cable Puller Weigh: 7800kg
Engine: Cummins 6L8.9AA-C325 Cylinder Diameter × Stroke: 114×144.5 Mm
Rated Speed: 2200 R/min Max Torque: 1230Nm
High Light:

Stringing Equipment Hydraulic Cable Puller

,

hydraulic wire puller with Cummins Engine

,

hydraulic wire puller 2200 r/min

Stringing Equipment Hydraulic Cable Puller with Cummins Engine



Purposes and characteristic

  • The machine is a kind of high efficiency electric construction machinery, with good entire performance, high configuration of main functional components, large power reserve, quick pulling speed and wide application.
  • The machine is mainly matched with small efficiency tensioner, is used for the stringing of pulling ropes and also pulls conductor under meeting pulling force.
  • It can satisfy the stringing of 220KV double-bundle LGJ-630 and below conductor in mountainous area and foothills, 220KV double-bundle LGJ-720 and below conductor in flatlands, OPGW or AESS optical cable in various terrains and single conductor LGJ-720 and below in mountainous area and foothills, and 500KV and below wire pulling ropes in various terrains.



Main technical performance parameter
Max intermittent pulling force 180kN
Max continuous pulling force 150 kN
Speed at max pull 2.5 km/h
Max speed 5 km/h
Pull at max speed 75 kN



Structure parameter
Bull-wheel diameter 750mm
Groove number 10
Max diameter of applicable pulling rope 30mm
Weight 7800kg
Overall dimension (length×width×height) 4800×2350×2550 mm



Drive system
Closed type circuit hydraulic drive system adjusts speed through hydraulic plunger pump with bi-directional variable displacement, reduces speed through planet gear and drives pulling wheels to rotate in positive and negative directions through the first level gear terminal drive.
Cooling mode forced cooling
Main pump
Model sloping cam plate bi-directional plunger pump (German Rexroth)
Type A4VG250HDDT1/32R
Hydraulic motor
Model inclined-axis bi-directional constant displacement tapered plunger motor (German Rexroth)
Type A2FE160/61W-VZL106
Speed reducer
Model two-grade planet gear reduction (German Rexroth)
Type GFB60T2B24-06
Reduction ratio 34
Brake response pressure 1.8Mpa



Auxiliary oilway hydraulic system
Open type constant displacement throttle speed governing hydraulic system is supplied oil by gear pump and controls oil liquor’s cooling and hoisting tail bracket’s lifting of the whole hydraulic system through hand operated direction valve and ball valve.
System working pressure 12Mpa
Duplex gear pump 1PF2G2-4X/016+014RR20MRL
Fan motor GM5-12-1FE13-S-20
Hoisting motor J2K-305
Sleeve extension oil cylinder 3TG110×250
Radiator B5024



Engine
Type Cummins 6L8.9AA-C325
Cylinder diameter × stroke 114×144.5 mm
Total air output 8.9 L
Rated speed 2200 r/min
Rated power (one hour power) 239 kw
Max torque 1230Nm
Rotary speed when maximum torque 1400 r/min
Fuel consumption rate (bench test) 225g/kw.h



Electric system

System voltage

24V

Storage battery

6-QA-120(2 pcs)

Engine starting

24V electric starting
