| Type: | Tension Machine For Transmission Line | Rated Tension: | 2x80kN/1x160kN |
|---|---|---|---|
| Pull At Max Speed: | 2x40kN/1x80kN | Max Reverse Pulling Force: | 2x40kN/1x80kN |
| Max Conductor Diameter: | 48.75mm | Total Weight: | 10000kg |
| High Light: | ISO9001 overhead transmission line stringing equipment,2x40kN overhead transmission line stringing equipment,2x6 Groove Number conductor stringing tools |
||

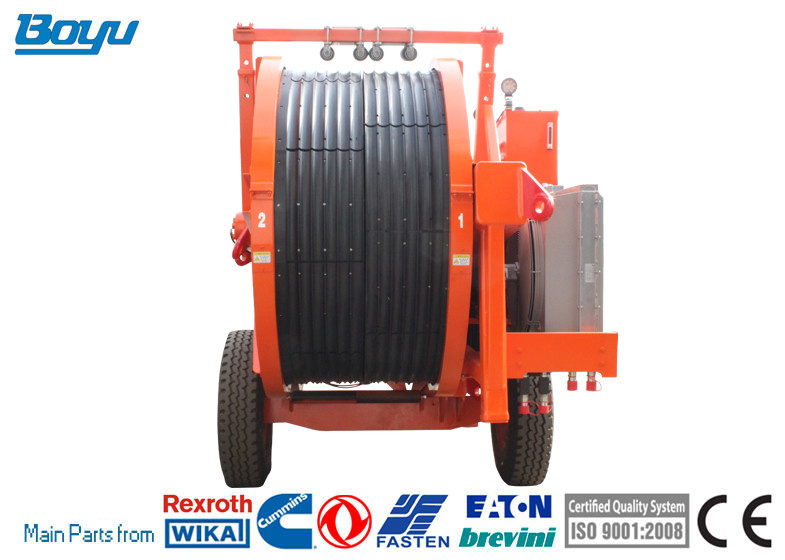

Tension Machine For Transmission Line Stringing Equipment 2x6 Groove Number
TY2x80 Hydraulic Tensioner | The machine allows for the tension stringing of twin-bundle conductor of 1000mm2 in flat lands; | |
besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains | ||
| Performance | Max tension | 2x100kN/1x200kN |
Rated tension | 2x80kN/1x160kN | |
Max reverse pulling force | 2x40kN/1x80kN | |
Pull at max speed | 2x40kN/1x80kN | |
Max feeding speed | 5km/h | |
Max reverse pulling speed | 3km/h | |
| Speed at max tension | 2.5km/h | |
| Engine | Diesel | 97kw(130hp) |
| Electrical system | 24V | |
| Cooling system | water | |
| Characteristics | Overall dimension (length*width*height) | 5520*2280*2850mm |
| Max conductor diameter | 48.75mm | |
Groove number | 2x6 | |
Bull-wheel diameter | 1850mm | |
Total weight | 10000kg | |
| ||
| Main configuration | Engine | Cummins |
| Speed reducer | German Rexroth | |
Hydraulic pump | German Rexroth/Dnish Danfoss | |
Main motor | German Rexroth/French Leduc | |
Operating handle | German Rexroth | |
Hydraulic meter | German WIKA | |
| ||
| Configuration | Hydraulic oil cooling system | |
Control instruments for hydraulic system and diesel engine | ||
2 hydraulic dynamometers | ||
2 negative self-acting hydraulic brakes | ||
Hydraulic power pack to control up to 2 separate drum stands with hydraulic motor | ||
Grounding connection point | ||
2 digital meter counters | ||

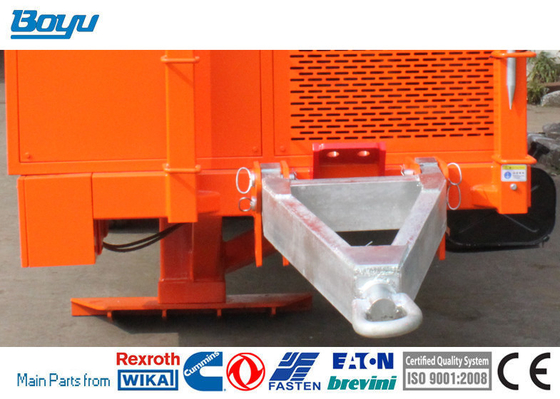

Rigid axle for towing at max speed of 30km/h with mechanical parking brake | ||
2 digital speed meters | ||
| Hydraulic Transmission | The machine can realize step less speed. | |
| The machine is provided with tension presetting system. | ||
| ||
| Additional Devices | Lighting system for the trailer | |
Trailer for towing at max speed of 30 km/h | ||
Swivel guide rope roller | ||
Air brake system for the trailer | ||
Digital speed and meter counter | ||
| 2 hydraulic rope/conductor clamp (extra charge) | ||
