Cable Pulling Hydraulic Tensioner Conductor Stringing Equipment Hydraulic Cable Tensioner

Cable Pulling Hydraulic Tensioner Conductor Stringing Equipment Hydraulic Cable Tensioner
Cable Pulling Hydraulic Tensioner Conductor Stringing Equipment Hydraulic Cable Tensioner Cable Pulling Hydraulic Tensioner Conductor Stringing Equipment Hydraulic Cable Tensioner

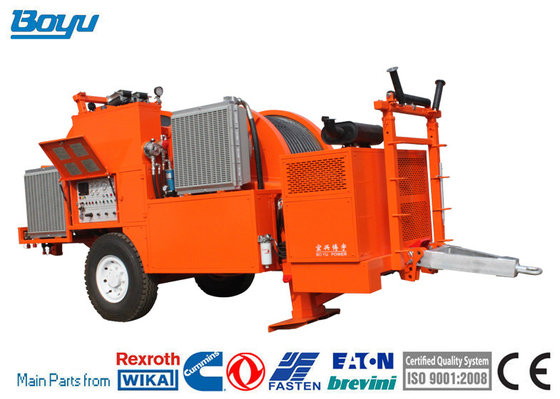

Large Image :  Cable Pulling Hydraulic Tensioner Conductor Stringing Equipment Hydraulic Cable Tensioner

Product Details:
Place of Origin: China
Brand Name: BOYU
Certification: ISO9001
Model Number: TY2x80
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Container
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 100sets/month.
Contact Now
Detailed Product Description
Type: Hydraulic Cable Tensioner With Cummins Engine Diesel: 97kw(130hp)
Cooling System: Water Electrical System: 24V
Engine: Cummins Main Motor: German Rexroth/French Leduc
High Light:

power line hydraulic tensioner

,

cable pulling hydraulic tensioner

,

conductor stringing equipment hydraulic cable tensioner

Hydraulic Cable Tensioner Hydraulic Pump German Rexroth/Dnish Danfoss



Quick Detail:

  1. Max tension: 2x100kN/1x200kN
  2. Rated tension: 2x80kN/1x160kN
  3. Max reverse pulling force: 2x40kN/1x80kN
  4. Pull at max speed: 2x40kN/1x80kN
  5. Max reverse pulling speed: 3km/h
  6. Speed at max tension: 2.5km/h
  7. Max feeding speed: 5km/h
  8. Diesel engine: 97kw(130hp)
  9. Cooling system: water
  10. Electrical system: 24V



Model Bull-wheel diameter Max conductor diameter Max optical fiber cable diameter Groove width Groove number Total weight Overall damension
mm mm mm mm   kg mm
TY1X7.5 1100 24 21 220 1 850 2300*1250*1620
TY1X20 1300 40 21 55 5 1920 4080*1930*2300
TY1X20II 800 23   45 5 950 2400*1500*1650
TY1X20III 800 22.5   55 5 1150 2500*1500*1700
TY1X30 1300 40 21 60 5 2064 3700*1950*2150
TY1X40 1300 40 21 55 5 3430 4000*2000*2300
TY1x40DQ 1300/1500 40 21 55 5 2800 4200*2000*2500
TY1x40DV 1300/1500 40 21 55 5 2800 4200*2000*2500
TY1X50 1300/1500 55 21 68 6 2400 4000*1900*2300
TY140IV 1500 40     16 10000 5500*2280*2700
TY2X35 1300 40     2x5 4500 4300*2250*2700
TY2X40 1300/1500 40     2x5 6230 4300*2250*2700
TY2X50 1300/1500 40     2x5 6000 4700*2300*2700
TY2X70 1700 40     2x6 7500 4700*2300*2700
TY2x70IV 1500 40     2x8 10000 5500*2280*2700
TY2x80 1850 48.75     2x6 10000 5520*2280*2850
TY2X90 1900 50     2x6 7500 5400*2300*2700
TY4x50 1500 40     4x5 13000 5900*2300*2700



Configuration

  1. Control instruments for hydraulic system and diesel engine
  2. Rigid axle for towing at max speed of 30km/h with mechanical parking brake
  3. 2 digital speed meters
  4. 2 hydraulic dynamometers
  5. 2 digital meter counters
  6. 2 negative self-acting hydraulic brakes
  7. Hydraulic oil cooling system
  8. Grounding connection point
  9. Hydraulic power pack to control up to 2 separate drum stands with hydraulic motor

Additional Devices

  1. Air brake system for the trailer
  2. 2 hydraulic rope/conductor clamp (extra charge)
  3. Trailer for towing at max speed of 30 km/h
  4. Lighting system for the trailer
  5. Digital speed and meter counter
  6. Swivel guide rope roller

Hydraulic Transmission

  1. The machine is provided with tension presetting system.
  2. The machine can realize step less speed.



Cable Pulling Hydraulic Tensioner Conductor Stringing Equipment Hydraulic Cable Tensioner 0
