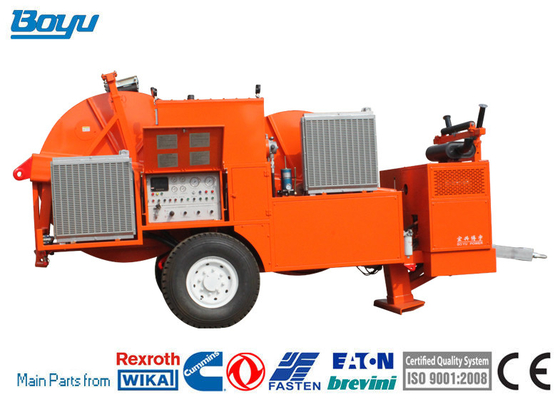

2x100 KN Hydraulic Cable Tensioner 1850mm For Transmission Line

2x100 KN Hydraulic Cable Tensioner 1850mm For Transmission Line
2x100 KN Hydraulic Cable Tensioner 1850mm For Transmission Line 2x100 KN Hydraulic Cable Tensioner 1850mm For Transmission Line

Large Image :  2x100 KN Hydraulic Cable Tensioner 1850mm For Transmission Line

Product Details:
Place of Origin: China
Brand Name: BOYU
Certification: ISO9001
Model Number: TY2x80
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Container
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 100sets/month.
Detailed Product Description
Type: TY2x80 Hydraulic Cable Tensioner Bull-wheel Diameter: 1850mm
Groove Number: 2x6 Max Conductor Diameter: 48.75mm
Total Weight: 10000kg Overall Dimension (length*width*height): 5520*2280*2850mm
High Light:

Hydraulic Transmission Line Cable Tensioner

,

Hydraulic 2x100 kN Cable Tensioner

,

Hydraulic 1850mm Cable Tensioner

Hydraulic Cable Tensioner Max Tension 2x100kN/1x200kN For Tranmsission Line



TY2x80 Hydraulic Tensioner

The machine allows for the tension stringing of twin-bundle conductor of 1000mm2 in flat lands; besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains

Characteristics

Bull-wheel diameter: 1850mm

Groove number: 2x6

Max conductor diameter: 48.75mm

Total weight: 10000kg

Overall dimension (length*width*height): 5520*2280*2850mm

Performance

Max tension: 2x100kN/1x200kN

Rated tension: 2x80kN/1x160kN

Speed at max tension: 2.5km/h

Max feeding speed: 5km/h

Pull at max speed: 2x40kN/1x80kN

Max reverse pulling force: 2x40kN/1x80kN

Max reverse pulling speed: 3km/h

Main configuration

Engine: Cummins

Hydraulic pump: German Rexroth/Dnish Danfoss

Main motor:German Rexroth/French Leduc

Speed reducer: German Rexroth

Hydraulic meter: German WIKA

Operating handle: German Rexroth

Engine

Diesel: 97kw(130hp)

Cooling system: water

Electrical system: 24V

Hydraulic Transmission

The machine can realize step less speed.

The machine is provided with tension presetting system.

Configuration

2 negative self-acting hydraulic brakes

2 hydraulic dynamometers

Hydraulic oil cooling system

2 digital meter counters

2 digital speed meters

Control instruments for hydraulic system and diesel engine

Rigid axle for towing at max speed of 30km/h with mechanical parking brake

Hydraulic power pack to control up to 2 separate drum stands with hydraulic motor

Grounding connection point

Additional Devices

Lighting system for the trailer

2 hydraulic rope/conductor clamp (extra charge)

Swivel guide rope roller

Trailer for towing at max speed of 30 km/h

Digital speed and meter counter

Air brake system for the trailer



2x100 KN Hydraulic Cable Tensioner 1850mm For Transmission Line 0



Customer support

Customer is our first priority

Our contact person will do the best to deal with the problems our customers encountered, in order to ensure our customers' satisfaction and without any commitment from your side. An introduction course has been planned for all the customers that buy BOYU machines, we provide free technical support by means of phone or mail. Also our customers can download operation and maintenance videos from our website.

We will provide some easily damaged parts of the equipment to ensure the normal operation.

If any quality problems such as design, manufacture, function or procedure occur within the guarantee period, BOYU shall take full responsibility and bear all the economic losses incurred.

If any other quality problems occurs within the guarantee period, BOYU shall provide online video service after receive the buyer’s notice in 24 hrs.

If any big quality problems occurs out of the guarantee period, BOYU will also provide online video service after receive the buyer’s notice in 48 hrs.

BOYU will provide a lifetime favorable price to the buyer with the materials and spare parts used in system operation, equipment maintenance, and guarantee 7days courier door by door.
