Product Details:
Payment & Shipping Terms:
|
| OEM: | Available | After Sales Service: | Available |
|---|---|---|---|
| Material: | High Strength Steel | Rated Load: | 20~120kN |
| Weight: | 5.6~26kg | Steel Rope Diameter(mm): | 7~35 |
| Highlight: | overhead line tools,transmission line construction equipment |
||
Rated load 100kn Transmission Line Stringing Tools Bolt Type Anti-Twisting Steel Wire Rope Gripper
Quick details:
1. Transmission Line Stringing Equipment Accessories & Tools
2. Bolt Type Anti-Twisting Steel Wire Rope Gripper
3. Weight: 5.6~26kg
4. Rated Load: 20~120kN
5.Material: high strength steel
6. Boyu Brand
Description:

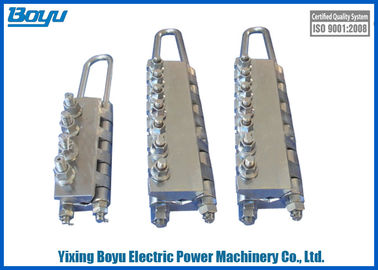

The Bolt Type Anti-Twisting Steel Wire Rope Gripper can be use to anchor and to string anti-twist steelrope. It is made of high strength steel. It is made up of a series of hinged elements,which
can be locked by nuts.
Specification:
| Model | steel rope diameter(mm) | Rated load (kN) | Weight (kg) |
| SKGF-2 | 7/9 | 20 | 5.6 |
| SKGF-3 | 11 | 30 | 5.6 |
| SKGF-5 | 13/15 | 50 | 18 |
| SKGF-6 | 16/18 | 60 | 18 |
| SKGF-8 | 20 | 80 | 20 |
| SKGF-10 | 22/24 | 100 | 20 |
| SKGF-12 | 30-35 | 120 | 26 |
Quality Control:
We have the complete production equipments and professional production team to manage the whole process from production to packing shipment.All products will 100% test before delivery to ensure the quality.
