Rated load 200kn Transmission Line Stringing Tools Self Gripping Clamps
Quick details:
1. Transmission Line Stringing Equipment Accessories & Tools

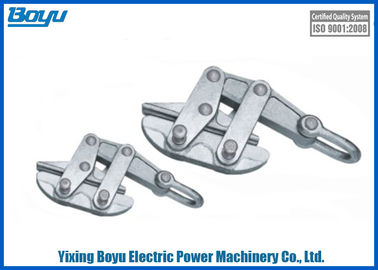

2. Self Gripping Clamps
3. Weight: 7~23.5kg
4. Rated Load: 50~200kN
5. Boyu Brand
Description:
The self-gripping clamps can be use to anchor and to string anti-twist steel rope. Single V type clipper gap. two side load symmetry acting force ,lighten weight .
Specification:
| Model | Rated load(kn) | Applicable steel rope Dia.(mm) | Weight(kg) |
| TYSKG-50N | 50 | 11-15 | 7 |
| TYSKG-70N | 70 | 16-18 | 8 |
| TYSKG-120N | 120 | 19-21 | 11.6 |
| TYSKG-120NA | 120 | 22-24 | 11.6 |
| TYSKG-200N | 200 | 26-30 | 23.5 |
note :please writing clearly the detail specification of anti-twist wirerope
More picture:
Quality Control:
We have the complete production equipments and professional production team to manage the whole process from production to packing shipment.All products will 100% test before delivery to ensure the quality.
