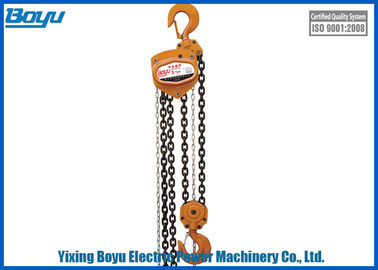

Standard Lifting Height 2.5-3m Capacity 0.5t - 50t Chain Hoist Lifting Chain Number 1, 2, 4, 8

Standard Lifting Height 2.5-3m Capacity 0.5t - 50t Chain Hoist Lifting Chain Number 1, 2, 4, 8
Standard Lifting Height 2.5-3m Capacity 0.5t - 50t Chain Hoist Lifting Chain Number 1, 2, 4, 8 Standard Lifting Height 2.5-3m Capacity 0.5t - 50t Chain Hoist Lifting Chain Number 1, 2, 4, 8 Standard Lifting Height 2.5-3m Capacity 0.5t - 50t Chain Hoist Lifting Chain Number 1, 2, 4, 8

Large Image :  Standard Lifting Height 2.5-3m Capacity 0.5t - 50t Chain Hoist Lifting Chain Number 1, 2, 4, 8

Product Details:
Place of Origin: China
Brand Name: Boyu
Certification: ISO9001
Model Number: TYHSA
Payment & Shipping Terms:
Minimum Order Quantity: 10 set
Price: Negotiable
Packaging Details: Container
Delivery Time: 25-35 days
Payment Terms: TT/LC
Supply Ability: 100 sets/month
Price terms: FOB(Shanghai) or CIF (assigned port)
Contact Now
Detailed Product Description
OEM: Available After Sales Service: Available
Capacity: 0.5t~20t Color: Self Choice
Brand: Boyu Standard Lifting Height: 2.5~3m
High Light:

overhead line tools

,

overhead transmission line stringing equipment

0.5t - 50t Chain Hoist Transmission Line Stringing Tools Capacity Ranges





Quick details:

  1. Transmission Line Stringing Equipment Accessories & Tools
  2. TYHSA Chain hoist
  3. Capacity ranges from 0.5t~20t
  4. Heavy duty of 30t,50t is available
  5. Other colors available
  6. Standard lifting height from 2.5m to 3m
  7. Boyu Brand



Description:



The lifting hoist are made of steel and equipped with mechanical brake; they are designed to facilitate and accelerate chain positioning operations. Chains with different lengths are available on demand.





Specification:



Model

TYHSA-0.5A

 TYHSA -1A TYHSA-1.5A TYHSA -2A TYHSA -3A TYHSA -5A TYHSA -10A TYHSA -20A TYHSA -30A TYHSA -50A

Rated lifting weight

(T)

 0.5 1 1.5 2 3 5 10 20 30 50

Rated lifting height

(M)

 2.5 2.5 2.5 3 3 3 3 3 3 3

Rated load

(kn)

 6.3 12.5 18.7 25 37.5 63 125 250 375 625
Hand pull fully loaded N(kg) 200(20.5) 304(31) 343(35) 410(41.8) 343(35) 414(42.2) 423(43.2) 435*2(44.3*2) 435*2(44.3*2) 435*2(44.3*2)
Lifting chain number 1 1 1 1 2 2 4 8 12 22

Lifting chain Dia.(mm)

 6 6 8 8 8 10 10 10 10 10


































Main size (mm)

 A 137.5 146.5 170 170 170 190.4 190 209 312 496
B 137 162 183 194 220 288 384 625 691 958
C 270 317 399 414 465 618 798 890 1380 2578
D 35 35.5 45 42.5 50 64 85 110 110 170
K 28 26 32.5 32 37 46 50 81 81 125

Weight

(kg)

 8.4 11 16.2 18.5 25.6 42.8 79.5 193 220 1092

Parking size

(cm)

 22*15*20 23*18*20 28*21*24 28*21*24 32*21*26 40*21*26 50*41*21 64*38*64 72*50*68

110*100*

130

Every meter lifting increase weight

(kg)

 1.7 1.7 2.3 2.3 3.7 5.3 9.7 19.4 28.2 50.2
















More pictuires:






Standard Lifting Height 2.5-3m Capacity 0.5t - 50t Chain Hoist Lifting Chain Number 1, 2, 4, 8 0





Standard Lifting Height 2.5-3m Capacity 0.5t - 50t Chain Hoist Lifting Chain Number 1, 2, 4, 8 1


Maufacturer Introduction:

Yixing Boyu Electric Power Machinery Company is located in west side of the beautiful and fertile Taihu Lake. We are near Shanghai seaport, Nanjin airport, Hangzhou airport, about 2~3 hours by car.
Our company is high-tech enterprise of Jiangsu province having six patents, including two invention patents. Our company has a total area of 42800 square meters, having formed four series products:
  • Line Stringing Equipment and accessories and tools.
  • Nonmetallic galvanized the production equipment (Achieved high-tech products)
  • Numerical control machine
  • Low voltage no power-arc furnace compensation system.





0.5t to 50t Chain Hoist Transmission Line Stringing Tools Capacity Ranges
