| Type: | Hydraulic Cable Tensioner For Transmission Line | Speed Reducer: | Planet Gear Decelerator |
|---|---|---|---|
| Diesel Engine Starting: | 24V Electric Starting | Corresponding Speed: | 2.5Km/h |
| Corresponding Tension: | 40KN | Maximum Continuous Tension: | 80KN |
| High Light: | 24V Hydraulic Cable Tensioner,40KN Hydraulic Cable Tensioner,Electric Starting hydraulic tensioner For Transmission |
||

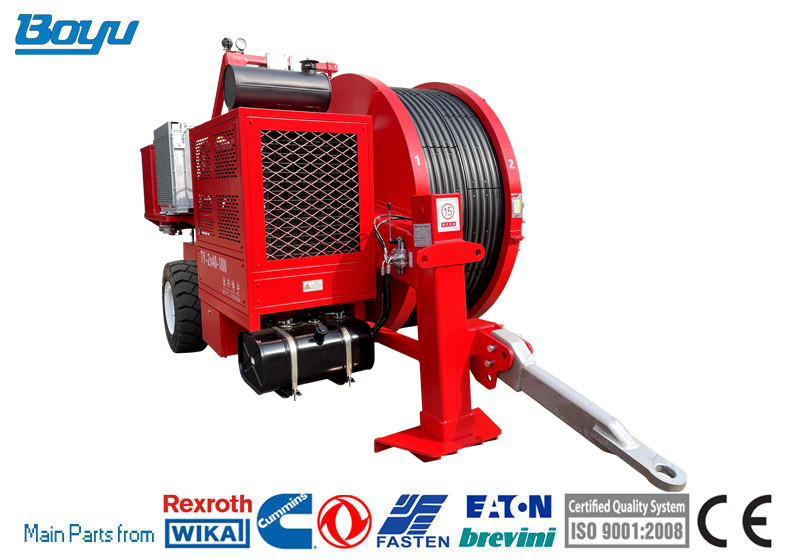

Hydraulic Cable Tensioner For Transmission Line 24V Electric Starting
Main technical performance
|
Tension condition
|
||
| Deliver the two wires (or steel wires) at the same time | Maximum discontinuous tension | 2×50KN |
| Maximum continuous tension | 2×40KN | |
| Corresponding speed | 2.5Km/h | |
| Maximum continuous payout speed | 5Km/h | |
| Corresponding tension | 2X20KN | |
| Deliver one wire (or steel wire) in two juxtaposed wheels | Maximum continuous tension | 80KN |
| Corresponding speed | 2.5Km/h | |
| Maximum continuous payout speed | 5Km/h | |
| Corresponding tension | 40KN | |
|
Traction condition
|
||
|
Deliver one wire or steel wire not in two juxtaposed wheels (single wheel traction)
|
Maximum traction force | 40KN |
| Corresponding speed | 1.5Km/h | |
| Maximum continuous payout speed | 5Km/h | |
| Corresponding tension | 20KN | |
| Deliver one wire or steel wire in two juxtaposed wheels | Maximum tension | 80KN |
| Corresponding speed | 1.5Km/h | |
| Maximum continuous payout speed | 5Km/h | |
| Corresponding tension | 40KN | |
|
Engine
|
|
| Model | Cummins 4BT3.9 |
| Nominal speed | 2800r/min |
| Nominal power (1 hour) | 77KW |
|
Structure Parameters
|
|
| Diameter of tensile force wheel | 1800mm |
| Concave-groove numbers | 5 |
| Maximum applicable diameter of wire | 40mm |
| Deadweight of the whole machine | 7800kg |
| Overall dimension (length, width, height) | 4900X2310X2900 |
| Slinging method | double point slinging |
|
Transmission System
|
|
|
With closed double-loop hydraulic transmission system and planet decelerator, tension wheel is driven by primary gear.
With inversion, the magnitude of reverse traction force is led by exit pressure of pump.
In tension condition, hydraulic motor rotation is driven by the tension wheel; the magnitude of tension is controlled by regulating the motor exit pressure.
|
|
|
Main pump
|
|
|
Type
|
Hydraulic control bidirectional variable plunger pump(Germany Rexroth )
|
|
Model
|
A4VG71HD
|
|
Hydraulic motor
|
|
|
Type
|
Two-way Quantitative Plunger Piston Motor (Germany Rexroth )
|
|
Model
|
A2FE63/61W
|
|
Speed reducer
|
|
|
Type
|
planet Gear Decelerator
|
|
Model
|
306L2 18.1
|
|
Reduction ratio
|
18.1
|
|
Brake opening pressure
|
1.8MPA
|
|
Main technical performance
|
|
|
Tension condition
|
|
|
Deliver the two wires (or steel wires) at the same time
|
|
| Maximum discontinuous tension | 2×50KN |
| Maximum continuous tension | 2×40KN |
| Corresponding speed | 2.5Km/h |
| Maximum continuous payout speed | 5Km/h |
| Corresponding tension | 2X20KN |
|
Deliver one wire (or steel wire) in two juxtaposed wheels
|
|
| Maximum continuous tension | 80KN |
| Corresponding speed | 2.5Km/h |
| Maximum continuous payout speed | 5Km/h |
| Corresponding tension | 40KN |
|
Traction condition
|
|
| Maximum traction force | 40KN |
| Corresponding speed | 1.5Km/h |
| Maximum continuous payout speed | 5Km/h |
| Corresponding tension | 20KN |
|
Deliver one wire or steel wire in two juxtaposed wheels
|
|
| Maximum tension | 80KN |
| Corresponding speed | 1.5Km/h |
| Maximum continuous payout speed | 5Km/h |
| Corresponding tension | 40KN |
|
Structure Parameters
|
|
| Diameter of tensile force wheel | 1800mm |
| Concave-groove numbers | 5 |
| Maximum applicable diameter of wire | 40mm |
| Deadweight of the whole machine | 7800kg |
| Overall dimension (length, width, height) | 4900X2310X2900 |
| Slinging method | double point slinging |
|
Engine
|
|
| Model | Cummins 4BT3.9 |
| Nominal speed | 2800r/min |
| Nominal power (1 hour) | 77KW |
