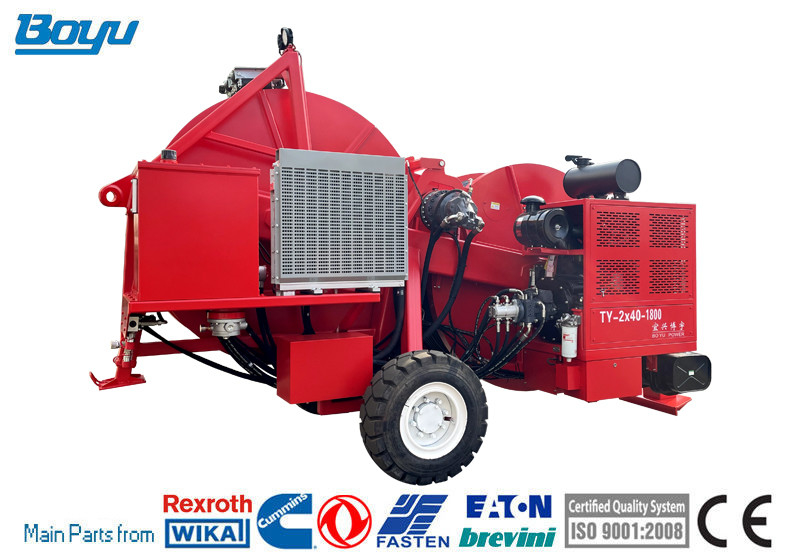

1800mm Hydraulic Cable Tensioner For Overhead Line Transmission Stringing Equipment

Large Image : 1800mm Hydraulic Cable Tensioner For Overhead Line Transmission Stringing Equipment

Product Details:

Place of Origin:	China
Brand Name:	BOYU
Certification:	ISO9001
Model Number:	TY2x40-1800

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	Negotiable
Packaging Details:	Container
Delivery Time:	15~25 days
Payment Terms:	L/C, T/T
Supply Ability:	100sets/month.

Contact Now

Detailed Product Description

Type:	Hydraulic Cable Tensioner For Overhead Line	Maximum Continuous Tension:	2×40KN
Diameter Of Tensile Force Wheel:	1800mm	Main Pump:	Hydraulic Control Bidirectional Variable Plunger Pump(Germany Rexroth )
Hydraulic Motor:	A2FE63/61W	System Voltage:	24V
Highlight:	1800mm Hydraulic Cable Tensioner , transmission line stringing equipment , Hydraulic Tensioner For Overhead Line

Hydraulic Cable Tensioner For Overhead Line 5 Concave-groove Numbers

Summary

In the process of tension stringing construction, tension machine is one of the indispensable main equipment.
Its performance will directly affect the quality and progress of tension stringing construction.

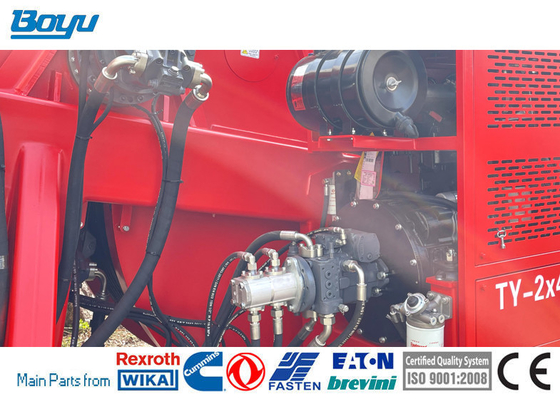

Our tension machine has reasonable design and high safety factor. The main components are selected from the world's leading professional manufacturers, such as Germany Rexroth, Germany , U.S. Eaton, Italy Atos and so on, other corollary parts are also chose from the best domestic products.
In addition, our company has strict production management, which effectively ensures the excellent performance and reliable quality of the product and has won the favor of users.

Tension condition

Maximum discontinuous tension: 2×50KN
Maximum continuous tension: 2×40KN
Corresponding speed: 2.5Km/h
Maximum continuous payout speed: 5Km/h
Corresponding tension: 2X20KN

Traction condition

Maximum traction force: 40KN
Corresponding speed: 1.5Km/h
Maximum continuous payout speed: 5Km/h
Corresponding tension: 20KN

Structure Parameters

Diameter of tensile force wheel: 1800mm
Concave-groove numbers: 5
Maximum applicable diameter of wire: 40mm
Deadweight of the whole machine: 7800kg
Overall dimension (length, width, height): 4900X2310X2900
Slinging method: double point slinging

Engine

Model: Cummins 4BT3.9
Nominal speed: 2800r/min
Nominal power (1 hour): 77KW

Electrical System

System voltage: 24V
Storage battery: 6-QA-110
Diesel engine starting: 24V electric starting

Check and maintenance before working every day

To guarantee reliable work of tensioner, be sure to check following items before working, and eliminate off-normal phenomenon.

1. Whether fasteners in each connecting location get loose.

2. Whether cooling system of engine is filled up with water; whether water pipe connector has water leak.

3. Whether oil sump of engine is enough filled with engine oil according to engine oil scale label.

4. Whether fuel oil in the fuel tank is enough; whether each oil pipe joint has oil leak.

5. Whether accumulator is live; whether starting circuit joints of engine get loose; check lighting equipment.

6. Whether there is enough lubricating oil in speed reducer.

7. Whether hydraulic oil with code designation is enough in hydraulic reservoir; whether each oil pipe joint has oil leak.

8. Check each control handle whether they’ve put in middle position.

9. Check the engine whether it is prepared.
