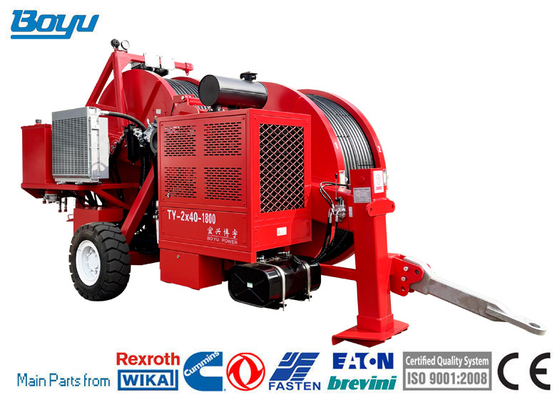

Stringing Equipment Hydraulic Tensioner 2×40KN 5 Concave Groove

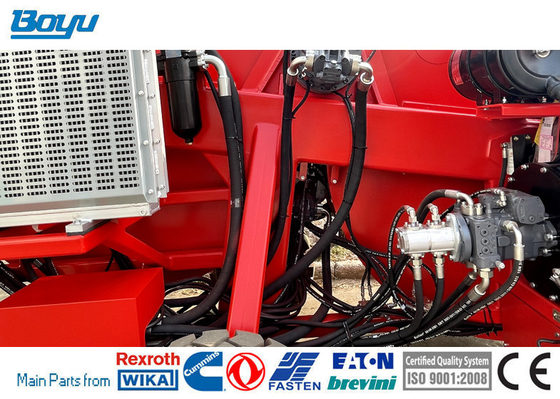

During the process of construction under tension stringing, tension machine is an indispensable one of the main equipment. Whether its performance is good or bad will impact the quality and schedule of construction under tension stringing directly. Our tension machine has rational design and high safety factor, its main components are chose from world’s leading professional manufacturer, such as Germany Rexroth, Germany , U.S. Eaton, Italy Atos and so on, other corollary parts are also chose from the best domestic products. Otherwise, our company has strict production management, thereby all these effectively ensure the excellent performance and credible quality of this product and win the favor of users.

Maximum discontinuous tension	2×50KN
Maximum continuous tension	2×40KN
Corresponding speed	2.5Km/h
Maximum continuous payout speed	5Km/h
Corresponding tension	2X20KN
Maximum traction force	40KN
Corresponding speed	1.5Km/h
Maximum continuous payout speed	5Km/h
Corresponding tension	20KN
Diameter of tensile force wheel	1800mm
Concave-groove numbers	5
Maximum applicable diameter of wire	40mm
Deadweight of the whole machine	7800kg
Overall dimension (length, width, height)	4900X2310X2900
Slinging method	double point slinging
Engine	Cummins 4BT3.9
Nominal speed	2800r/min
Nominal power (1 hour)	77KW
System voltage	24V
Storage battery	6-QA-110
Diesel engine starting	24V electric starting
