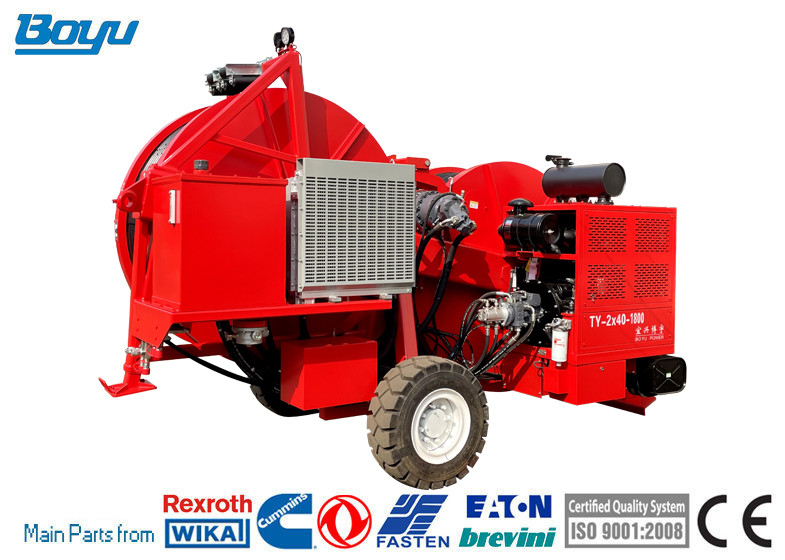

77KW Hydraulic Cable Tensioner With 4BT3.9 Engine Wire Stringing Equipment

77KW Hydraulic Cable Tensioner With 4BT3.9 Engine Wire Stringing Equipment
77KW Hydraulic Cable Tensioner With 4BT3.9 Engine Wire Stringing Equipment 77KW Hydraulic Cable Tensioner With 4BT3.9 Engine Wire Stringing Equipment

Large Image :  77KW Hydraulic Cable Tensioner With 4BT3.9 Engine Wire Stringing Equipment

Product Details:
Place of Origin: China
Brand Name: BOYU
Certification: ISO9001
Model Number: TY2x40-1800
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Container
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 100sets/month.
Detailed Product Description
Maximum Discontinuous Tension: 2×50KN Engine: Cummins 4BT3.9
Diameter Of Tensile Force Wheel: 1800mm Maximum Applicable Diameter Of Wire: 40mm
Deadweight Of The Whole Machine: 7800kg Overall Dimension (length, Width, Height): 4900X2310X2900
High Light:

77KW Hydraulic Cable Tensioner

,

4BT3.9 Engine Stringing Equipment

,

wire stringing equipment

Hydraulic Cable Tensioner With Cummins 4BT3.9 Engine Stringing Equipment



Characteristics

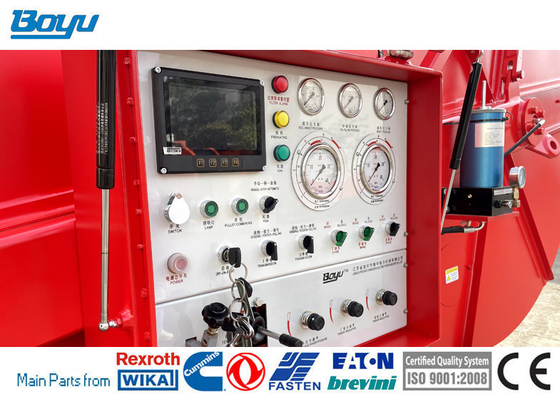

1. It could deliver or counter-stretch two wires at the same time, tension and traction of every wire could be adjusted separately and seen from manometer directly. Otherwise, one wire could stop or deliver under tension while another wire is counter-stretching and collecting.
2. It adopts hydraulic motor from Germany Rexroth and compose double-circuit hydraulic transmission system. It has advanced technology, high transmission efficiency and credible quality and could save power.
3. It adopts planetary reducer from Germany Rexroth, has compact configuration and credible quality.
4. Friction plate type wet brake is adopted and integrated in planetary reducer, it Can be free from routine maintenance. With spring brake, hydraulic release, simple operation, short reaction time, it can realize gapless braking, it’s safe and reliable. In shutdown mode, all kinds of hydraulic filters have bypass valves to protect the system from damage.



Main technical performance
Tension condition
Deliver the two wires (or steel wires) at the same time
Maximum discontinuous tension
2×50KN
Maximum continuous tension
2×40KN
Corresponding speed
2.5Km/h
Maximum continuous payout speed
5Km/h
Corresponding tension
2X20KN
Deliver one wire (or steel wire) in two juxtaposed wheels
Maximum continuous tension
80KN
Corresponding speed
2.5Km/h
Maximum continuous payout speed
5Km/h
Corresponding tension
40KN
Traction condition
Maximum traction force
40KN
Corresponding speed
1.5Km/h
Maximum continuous payout speed
5Km/h
Corresponding tension
20KN
Deliver one wire or steel wire in two juxtaposed wheels
Maximum tension
80KN
Corresponding speed
1.5Km/h
Maximum continuous payout speed
5Km/h
Corresponding tension
40KN
Structure Parameters
Diameter of tensile force wheel
1800mm
Concave-groove numbers
5
Maximum applicable diameter of wire
40mm
Deadweight of the whole machine
7800kg
Overall dimension (length, width, height)
4900X2310X2900
Slinging method
double point slinging
Engine
Model
Cummins 4BT3.9
Nominal speed
2800r/min
Nominal power (1 hour)
77KW
