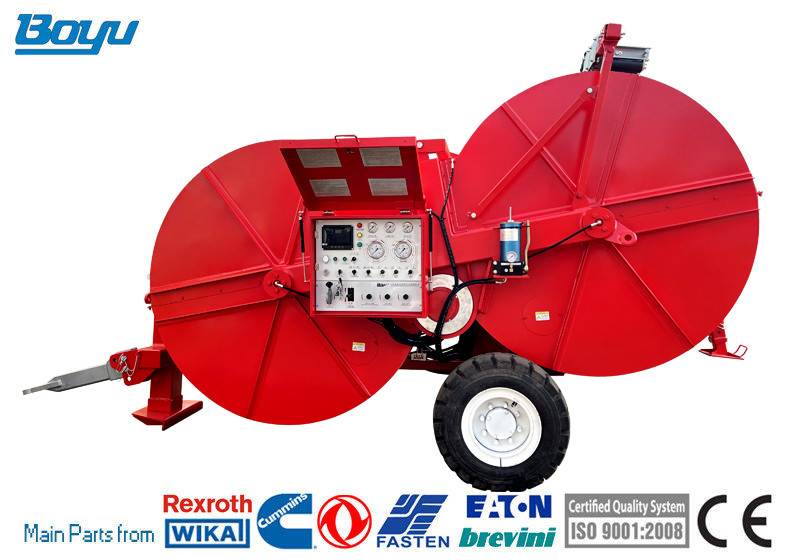

TY2x40-1800 Hydraulic Cable Tensioner 5Km/H 80KN Stringing Equipment

TY2x40-1800 Hydraulic Cable Tensioner 5Km/H 80KN Stringing Equipment
TY2x40-1800 Hydraulic Cable Tensioner 5Km/H 80KN Stringing Equipment TY2x40-1800 Hydraulic Cable Tensioner 5Km/H 80KN Stringing Equipment

Large Image :  TY2x40-1800 Hydraulic Cable Tensioner 5Km/H 80KN Stringing Equipment

Product Details:
Place of Origin: China
Brand Name: BOYU
Certification: ISO9001
Model Number: TY2x40-1800
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Container
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 100sets/month.
Contact Now
Detailed Product Description
Maximum Discontinuous Tension: 2×50KN Maximum Continuous Tension: 2×40KN
Corresponding Speed: 2.5Km/h Maximum Continuous Payout Speed: 5Km/h
Corresponding Tension: 2X20KN Engine: Cummins 4BT3.9
High Light:

5Km/h Hydraulic Cable Tensioner

,

80KN Cable Tensioner

,

cable stringing equipment

TY2x40-1800 Hydraulic Cable Tensioner 2×50KN Maximum Discontinuous Tension



Performance Parameter
Main technical performance

1. Tension condition
a. Deliver the two wires (or steel wires) at the same time:
Maximum discontinuous tension: 2×50KN
Maximum continuous tension: 2×40KN
Corresponding speed: 2.5Km/h
Maximum continuous payout speed: 5Km/h
Corresponding tension: 2X20KN

b. Deliver one wire (or steel wire) in two juxtaposed wheels
Maximum continuous tension: 80KN
Corresponding speed: 2.5Km/h
Maximum continuous payout speed: 5Km/h
Corresponding tension: 40KN

2. Traction condition
a. Deliver one wire or steel wire not in two juxtaposed wheels (single wheel traction)
Maximum traction force: 40KN
Corresponding speed: 1.5Km/h
Maximum continuous payout speed: 5Km/h
Corresponding tension: 20KN

b. Deliver one wire or steel wire in two juxtaposed wheels
Maximum tension: 80KN
Corresponding speed: 1.5Km/h
Maximum continuous payout speed: 5Km/h
Corresponding tension: 40KN

Structure Parameters
Diameter of tensile force wheel: 1800mm
Concave-groove numbers: 5
Maximum applicable diameter of wire: 40mm
Deadweight of the whole machine: 7800kg
Overall dimension (length, width, height): 4900X2310X2900
Slinging method: double point slinging

Engine
Model: Cummins 4BT3.9
Nominal speed: 2800r/min
Nominal power (1 hour): 77KW

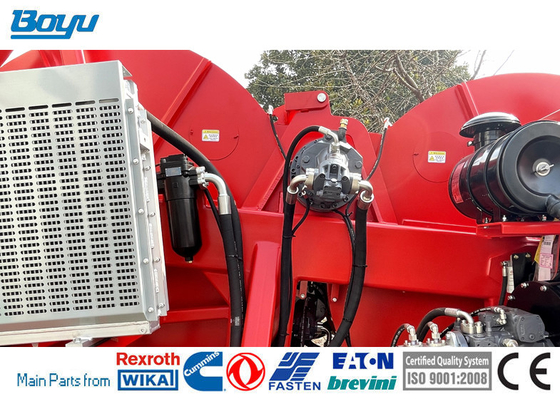

Transmission System
With closed double-loop hydraulic transmission system and planet decelerator, tension wheel is driven by primary gear. With inversion, the magnitude of reverse traction force is led by exit pressure of pump. In tension condition, hydraulic motor rotation is driven by the tension wheel; the magnitude of tension is controlled by regulating the motor exit pressure.

Main pump:
Type: Hydraulic control bidirectional variable plunger pump(Germany Rexroth )
Model: A4VG71HD

Type: Two-way Quantitative Plunger Piston Motor (Germany Rexroth )
Model: A2FE63/61W

Speed reducer:
Type: planet Gear Decelerator
Model: 306L2 18.1
Reduction ratio: 18.1
Brake opening pressure: 1.8MPA

Electrical System
System voltage: 24V
Storage battery: 6-QA-110
Diesel engine starting: 24V electric starting

Oil and Capacity Table
Oiling position
Kinds of oil
Capacity
Oil level observation
Oil tank
Winter: -10# or -35# light  diesel oil;
Summer: 0# or 10# light  diesel oil;
70L

Hydraulic oil tank
8# hydraulic transmission oil
200L
oil-height detector
Engine sump
CD level special for diesel engine
10.5L
oil gauge dipstick
Oil lubrication
position
N0.2 lubricating oil
(GB7323-89)
Fully
filled




TY2x40-1800 Hydraulic Cable Tensioner 5Km/H 80KN Stringing Equipment 0
