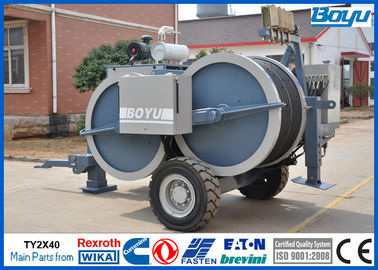

High Voltage Electrical Cable Stringing Equipment for OPGW ADSS Conductor Stringing

High Voltage Electrical Cable Stringing Equipment for OPGW ADSS Conductor Stringing
High Voltage Electrical Cable Stringing Equipment for OPGW ADSS Conductor Stringing
video play

Large Image :  High Voltage Electrical Cable Stringing Equipment for OPGW ADSS Conductor Stringing

Product Details:
Place of Origin: China
Brand Name: Boyu
Certification: ISO9001
Model Number: TY2X40-3
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Container
Delivery Time: 25-35 days
Payment Terms: TT/LC
Supply Ability: 100sets/month.
Price terms: FOB(Shanghai) or CIF (assigned port).
Detailed Product Description
Highlight:

transmission line equipment

,

conductor stringing equipment


Max 9Tons 2x45kN Hydraulic Cable Stringing Equipment Conductor OPGW ADSS Cable


Quick details
1. HydraulicTension Stringing Equipment
2. Hydraulic Tensioner for Conductor OPGW or ADSS
3. Max conductor diameter: 40mm
4. Groove number: 2x5
5. Bull-wheel diameter: 1300/1500mm
6. Engine: Cummins
7. Max tension: 2x45kN/90kN 9Tons
8. Diesel: Cummins 77kw 103hp
9. Main pump and motor and speed reducer: German Rexroth
10. Hydraulic meter: German

11. Boyu Brand

Quick details
1. HydraulicTension Stringing Equipment
2. Hydraulic Tensioner for Conductor OPGW or ADSS
3. Max conductor diameter: 40mm
4. Groove number: 2x5
5. Bull-wheel diameter: 1300/1500mm
6. Engine: Cummins
7. Max tension: 2x45kN/90kN 9Tons
8. Diesel: Cummins 77kw 103hp
9. Main pump and motor and speed reducer: German Rexroth
10. Hydraulic meter: German
Description
The machine allows for the tension stringing of twin-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains; besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains


Engine

  1. Diesel 77kw(103hp)
  2. Cooling system water
  3. Electrical system 24V


Performance

  1. Max intermittent tension: 2x45kN
  2. Max continuous tension: 2x40kN
  3. Speed at max tension: 2.5km/h
  4. Max speed: 5km/h
  5. Tension at max speed: 2x20kN
  6. Max reverse pulling force: 2x35kN
  7. Max reverse pulling speed: 5km/h


Characteristics

  1. Bull-wheel diameter: 1300/1500mm
  2. Max conductor diameter: 40mm
  3. Groove number: 2x5
  4. Total weight: 5800kg
  5. Overall dimension (length*width*height): 4300×2250×2700mm


Main configuration

  1. Engine: Cummins
  2. Hydraulic pump: German Rexroth
  3. Main motor: German Rexroth
  4. Speed reducer: German Rexroth
  5. Hydraulic meter: German


Configuration

  1. 2 hydraulic dynamometers
  2. Hydraulic oil cooling system
  3. 2 digital meter counters
  4. 2 digital speed meters
  5. Control instruments for hydraulic system and diesel engine
  6. Hydraulic front stabilizer
  7. Grounding connection point


Hydraulic Transmission
The machine can realize step less speed.
The machine is provided with tension presetting system.

Additional Devices
Lighting system for the trailer
Hydraulic brake system for the trailer
2 hydraulic conductor clamps for drum change operations
Electronic pull and speed recorder

Manufacturer Introduction
Jiangsu Province Yixing Boyu Electric Power Machinery Company is located in west side of the beautiful and fertile Taihu Lake.

Our company is high-tech enterprise of Jiangsu province having six patents, including two invention patents. Our company has a total area of 42800 square meters, having formed four series products:
Hydraulic Tension Stringing Equipment and accessories and tools.
Nonmetallic galvanized the production equipment (Achieved high-tech products)
Numerical control machine
Low voltage no power-arc furnace compensation system

Established in 1994, Yixing Boyu Electric Power Machinery Co., Ltd. is a manufacturer specialized in the research, development and production of Electric Power Machinery.
We are located in beautiful and rich city: Yixing city. We are a High-tech enterprise in Jiangsu Province, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
  1. Main configurations of our machine are from Germany and USA
  Engine: American Cummins
  Main pump: German Rexroth
  Main motor& speed reducer: German Rexroth
  Tail bracket hoisting motor: American Eton
  Hydraulic meter: German
  2. Our company was founded in 1994, having 27 years rich experience in this field. Our product sells in distant markets: Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Germany etc. Our product is also very popular in china.
  3. We have one year quality guarantee, if internal components go wrong within one year, we will change another for free.
  4. We can supply the specific components to the buyers with cost price after warranty period.





Max 9Tons 2x45kN Hydraulic Cable Stringing Equipment Conductor OPGW ADSS Cable
