Single Conductor Hydraulic Cable Stringing Equipment Pulling Machine 40kN 4T , Cummins Engine

Single Conductor Hydraulic Cable Stringing Equipment Pulling Machine 40kN 4T , Cummins Engine
Single Conductor Hydraulic Cable Stringing Equipment Pulling Machine 40kN 4T , Cummins Engine
video play

Large Image :  Single Conductor Hydraulic Cable Stringing Equipment Pulling Machine 40kN 4T , Cummins Engine

Product Details:
Place of Origin: China
Brand Name: Boyu
Certification: ISO9001, CE
Model Number: TY1X40-24
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Container
Delivery Time: 25-35 days
Payment Terms: TT/LC
Supply Ability: 100sets/month.
Price terms: FOB(Shanghai) or CIF (assigned port).
Detailed Product Description
Name: Puller Usage: Single Conductor
Max Pull: 45kN Max Speed: 5km/h
High Light:

cable pulling equipment

,

transmission line equipment


Single Conductor 40kN 4T Hydraulic Cable Stringing Equipment with German Rexroth Hydraulic Pump

Quick details

  • 1. HydraulicTension Stringing Equipment
  • 2. Hydraulic Cable Stringing Equipment
  • 3. Diesel: Cummins 77kw 103hp
  • 4. Main pump and motor and speed reducer: German Rexroth
  • 5. Hydraulic meter: German
  • 6. Max tension: 1x45kN
  • 7. Max conductor diameter: 40mm
  • 8. Max Optical fiber cable diameter: 21mm
  • 9. Groove number: 5
  • 10. Bull-wheel diameter: 1300mm
  • 11. Engine: Cummins
  • 12. Boyu Brand



Configuration

  • Hydraulic dynamometers
  • Hydraulic oil cooling system
  • Mechanical meter counters
  • Grounding connection point


Description

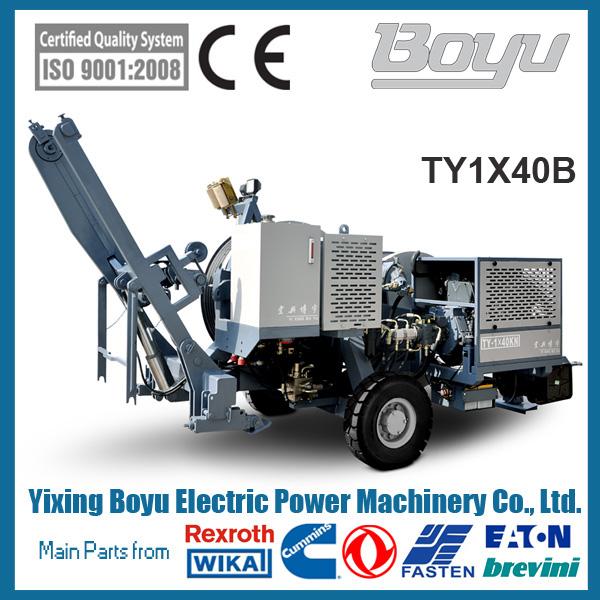

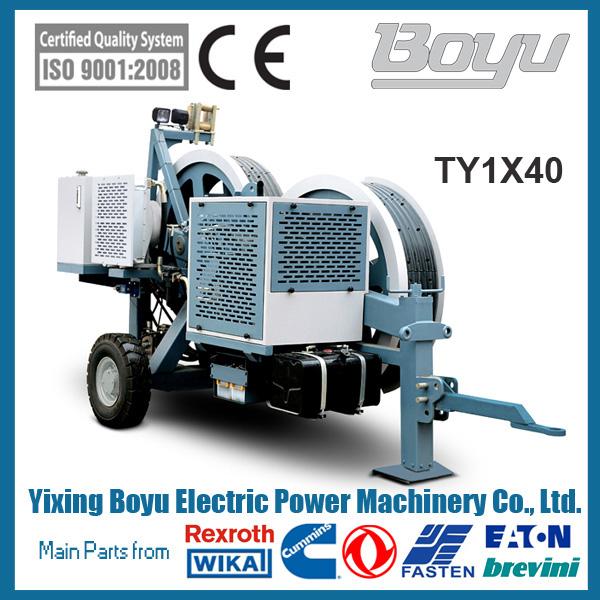

Single Conductor Hydraulic Cable Stringing Equipment Pulling Machine 40kN 4T , Cummins Engine 0Single Conductor Hydraulic Cable Stringing Equipment Pulling Machine 40kN 4T , Cummins Engine 1
Operated with 40kN tension machine, this machine is mainly applied in hilly and flat lands for tension stringing of 500kV conductors, and because of the great convenience brought by the reverse traction function, it is the better choice for the construction in small projects of transmission lines such as the modification works of rural and urban networks.


Performance



Max intermittent tension: 1x45kN

Max continuous tension: 1x40kN

Speed at max tension: 2.5km/h

Max speed: 5km/h

Tension at max speed: 1x20kN

Max reverse pulling force: 1x35kN

Max reverse pulling speed: 5km/h



Engine

  1. Diesel   77kw(103hp)
  2. Cooling system   water
  3. Electrical system  24V


Characteristics

  • Bull-wheel diameter: 1300mm
  • Max conductor diameter: 40mm
  • Max Optical fiber cable diameter: 21mm
  • Groove width: 68mm
  • Groove number: 5
  • Total weight: 2300kg

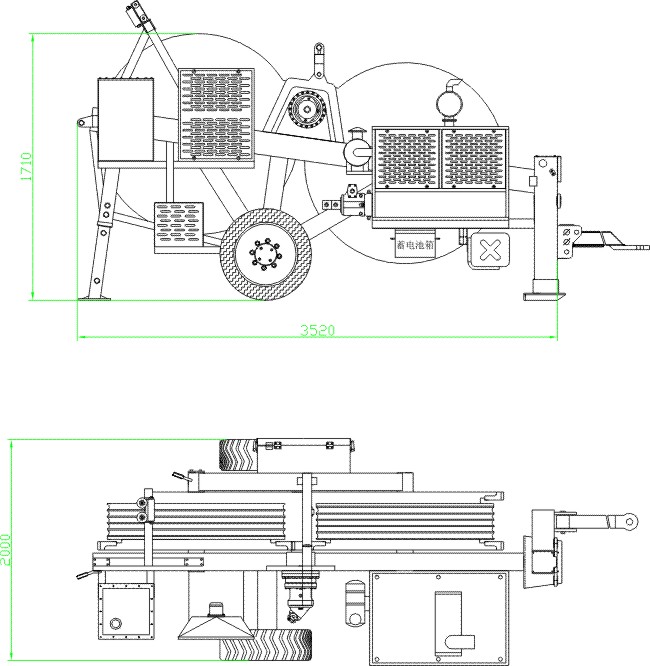

  • Overall dimension (length*width*height): 3520×2000×1710mm


Main configuration

  1. Engine: Cummins
  2. Hydraulic pump: German Rexroth
  3. Main motor: German Rexroth
  4. Speed reducer: German Rexroth
  5. Hydraulic meter: German


Hydraulic Transmission

  • The machine can realize step less speed.
  • The machine is provided with tension presetting system.


Additional Devices

  1. Lighting system for the trailer
  2. Hydraulic brake system for the trailer
  3. Hydraulic conductor clamps for drum change operations
  4. Electronic pull and speed recorder


Single Conductor Hydraulic Cable Stringing Equipment Pulling Machine 40kN 4T , Cummins Engine 2

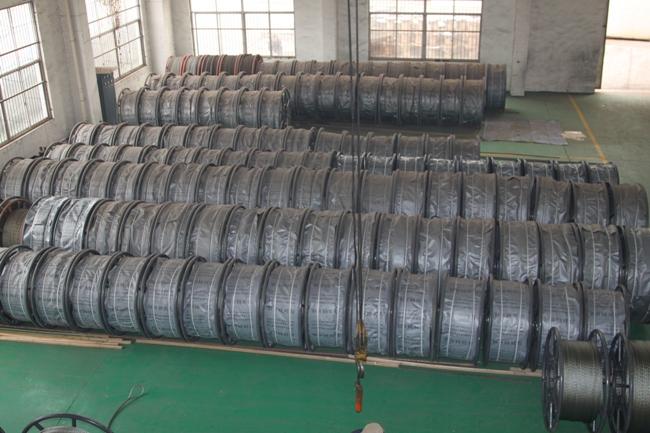

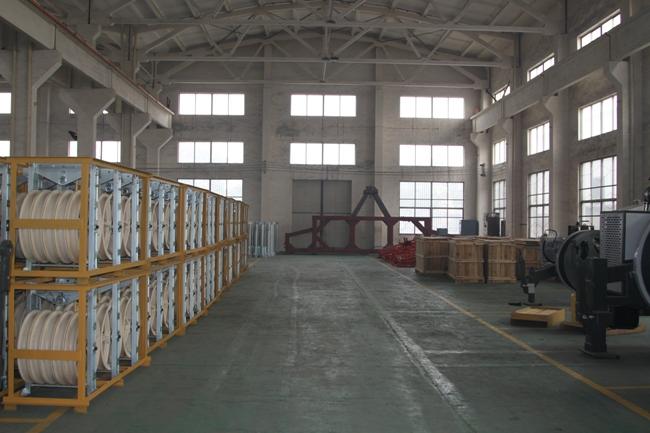

Manufacturer Introduction


Jiangsu Province Yixing Boyu Electric Power Machinery Company is located in west side of the beautiful and fertile Taihu Lake.
We are located in beautiful and rich city: Yixing city. We are a High-tech enterprise in Jiangsu Province, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world. Our company has a total area of 42800 square meters, having formed four series products:

  • Hydraulic Tension Stringing Equipment and accessories and tools.
  • Nonmetallic galvanized the production equipment (Achieved high-tech products)
  • Numerical control machine
  • Low voltage no power-arc furnace compensation system

Single Conductor Hydraulic Cable Stringing Equipment Pulling Machine 40kN 4T , Cummins Engine 3Single Conductor Hydraulic Cable Stringing Equipment Pulling Machine 40kN 4T , Cummins Engine 4



Single Conductor 40kN 4T Hydraulic Cable Stringing Equipment with German Rexroth Hydraulic Pump
