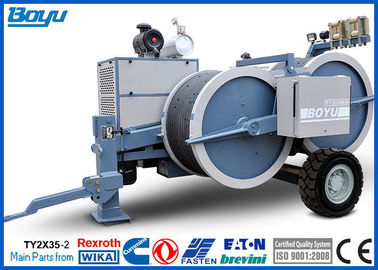

Two Rope Conductors Hydraulic Cable Tensioner 8 Ton for Overhead Transmission Line Stringing

Two Rope Conductors Hydraulic Cable Tensioner 8 Ton for Overhead Transmission Line Stringing
Two Rope Conductors Hydraulic Cable Tensioner 8 Ton for Overhead Transmission Line Stringing
video play

Large Image :  Two Rope Conductors Hydraulic Cable Tensioner 8 Ton for Overhead Transmission Line Stringing

Product Details:
Place of Origin: China
Brand Name: Boyu
Certification: ISO9001
Model Number: TY2X35-22
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Container
Delivery Time: 25-35 days
Payment Terms: TT/LC
Supply Ability: 100sets/month.
Price terms: FOB(Shanghai) or CIF (assigned port).
Detailed Product Description
Name: Hydraulic Tensioner Application: 2 Bundled Conductors
Bull Wheel Size: 2x1300mm Hydraulic Pump: German Rexroth / Dnish Danfoss
High Light:

hydraulic cable puller

,

Power Line Stringing Equipment


Max 8Tons 2x40kN Tension Stringing Equipment Two Rope Conductors Hydraulic Cable Tensioner

Quick details
1. Max tension: 2x40kN/80kN 8Tons
2.
Diesel: Cummins 77kw 103hp
3. Groove number: 2x5
4. Bull-wheel diameter: 1300mm
5.
HydraulicTension Stringing Equipment
6. Hydraulic Tensioner Two Rope Conductors
7. Main pump and motor and speed reducer: German Rexroth
8. Hydraulic meter: German
9. Max conductor diameter: 40mm
10. Groove number: 2x5

11. Boyu Brand

Performance


Max intermittent tension: 2x40kN

Max continuous tension: 2x35kN

Speed at max tension: 2.5km/h

Max speed: 5km/h

Tension at max speed: 2x20kN

Max reverse pulling force: 2x30kN

Max reverse pulling speed: 5km/h


Main configuration

  • Engine: Cummins
  • Hydraulic pump: German Rexroth
  • Main motor: German Rexroth
  • Speed reducer: German Rexroth
  • Hydraulic meter: German

 Description
  The machine allows for the tension stringing of twin-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains; besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains


Engine

  • Diesel   77kw(103hp)
  • Cooling system   water
  • Electrical system  24V


 Characteristics

  • Bull-wheel diameter: 1300mm
  • Max conductor diameter: 40mm
  • Groove number: 2x5
  • Total weight: 4500kg
  • Overall dimension (length*width*height): 4300×2250×2700mm


Configuration

  • Hydraulic dynamometers
  • Hydraulic oil cooling system
  • Mechanical meter counters
  • Grounding connection point


Hydraulic Transmission

  • The machine can realize step less speed.
  • The machine is provided with tension presetting system.


Additional Devices

  • Lighting system for the trailer
  • Hydraulic brake system for the trailer
  • 2 hydraulic conductor clamps for drum change operations
  • Electronic pull and speed recorder


Manufacturer Introduction
Jiangsu Province Yixing Boyu Electric Power Machinery Company is located in west side of the beautiful and fertile Taihu Lake.
Established in 1994, Yixing Boyu Electric Power Machinery Co., Ltd. is a manufacturer specialized in the research, development and production of Electric Power Machinery.
We are located in beautiful and rich city: Yixing city. We are a High-tech enterprise in Jiangsu Province, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
  1. Main configurations of our machine are from Germany and USA
  Engine: American Cummins
  Main pump: German Rexroth
  Main motor& speed reducer: German Rexroth
  Tail bracket hoisting motor: American Eton
  Hydraulic meter: German
  2. Our company was founded in 1994, having 27 years rich experience in this field. Our product sells in distant markets: Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Germany etc. Our product is also very popular in china.
  3. We have one year quality guarantee, if internal components go wrong within one year, we will change another for free.
  4. We can supply the specific components to the buyers with cost price after warranty period.

Our company is high-tech enterprise of Jiangsu province having six patents, including two invention patents. Our company has a total area of 42800 square meters, having formed four series products:
Hydraulic Tension Stringing Equipment and accessories and tools.
Nonmetallic galvanized the production equipment (Achieved high-tech products)
Numerical control machine
Low voltage no power-arc furnace compensation system
