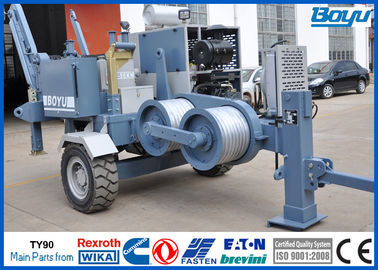

330KV Power Line Stringing Equipment Puller 100kN 10T with American Eton hoisting motor

Max Pulling Force 100kN 10T 330kv Power Line Stringing Equipment Hydraulic Puller machine


Quick details:

1. 330kv Tansmission Line Stringing Equipment
2. Main pump and motor: German--Rexroth
3. Max rope diameter: 21mm
4. Max reel size: 1400mm
5. Hydraulic Puller machine
6. Max pull: 100kN--10Ton
7. Diesel: Cummins 118kw--158hp
8. Tail bracket hoisting motor: American--Eton
9. Boyu Brand
10. Operating handle: German Rexroth

Characteristics

1. Max rope diameter : 21mm
2. Max diameter of rope reel: 1400mm
3. Total weight: 4350kg
4. Bull-wheel diameter: 540mm
5. Groove number: 8
6. Overall dimension (length*width*height): 4500×2100×2450mm

Description
This machine allows for the tension stringing of twin-bundle conductor of 500mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 630mm2 and below in flat lands, and of single conductor 720mm2 in various terrains; besides, it can be used for traction stringing of OPGW or ADSS optical cable and 220kV haulage rope in various terrains.

Performance
Max intermittent pull: 100kN
Max continuous pull: 90kN
Speed at max pull: 2.5km/h
Max speed: 5km/h
Pull at max speed: 40kN

Engine

Main configuration
Engine: Cummins
Main pump: German--Rexroth
Main motor speed reducer: German--Rexroth
Tail bracket hoisting motor: American--Eton
Hydraulic meter: German--

Operating handle: German--Rexroth

Configuration

1. Hydraulic dynamometer with set-point and automatic control of maximum pull
2. Hydraulic oil cooling system
3. Control instruments for hydraulic system and diesel engine
4. On board reel winder with automatic level wind, suitable for standard reel mod. 1100 and 1400
5. Hydraulic front stabilizer
6. Grounding connection point


Hydraulic Transmission
Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.

Additional Devices

 ·Lighting system for the trailer
·Hydraulic rope clamp for reel change
·Swivel guide rope roller
·Trailer for towing at max speed of 30 km/h
·Extra shaft
·Digital speed and meter counter


More pictures



Company Introduction
Jiangsu Province Yixing Boyu Electric Power Machinery Company is located in west side of the beautiful and fertile Taihu Lake.
Our company is high-tech enterprise of Jiangsu province having six patents, including two invention patents. Our company has a total area of 42800 square meters, having formed four series products:

1. Hydraulic rope clamp for reel change operations
2. Extra shaft
3. Electronic pull and speed recorder
4. Lighting system for the trailer
5. Hydraulic brake system for the trailer
6. Extra rollers for an additional pilot rope

• Transmission line stringing equipment and accessories and tools.
• Nonmetallic galvanized the production equipment (Achieved high-tech products)
• Numerical control machine
• Low voltage no power-arc furnace compensation system

We produce 40~60sets of stringing equipment each month and all kinds of accessories.

　　1. Main configurations of our machine are from Germany and USA
　　Engine: American Cummins
　　Main pump: German Rexroth
　　Main motor& speed reducer: German Rexroth
　　Tail bracket hoisting motor: American Eton
　　Hydraulic meter: German
　　2. Our company was founded in 1994, having 27 years rich experience in this field. Our product sells in distant markets: Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Germany etc. Our product is also very popular in china.
　　3. We have one year quality guarantee, if internal components go wrong within one year, we will change another for free.
　　4. We can supply the specific components to the buyers with cost price after warranty period.

Max Pulling Force 100kN 10T 330kv Power Line Stringing Equipment Hydraulic Puller machine
