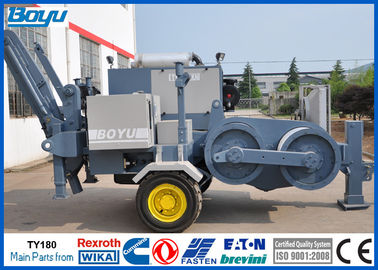

High Voltage Power Line Stringing Equipment TY180 Hydraulic Puller

High Voltage Power Line Stringing Equipment TY180 Hydraulic Puller
High Voltage Power Line Stringing Equipment TY180 Hydraulic Puller High Voltage Power Line Stringing Equipment TY180 Hydraulic Puller High Voltage Power Line Stringing Equipment TY180 Hydraulic Puller High Voltage Power Line Stringing Equipment TY180 Hydraulic Puller

Large Image :  High Voltage Power Line Stringing Equipment TY180 Hydraulic Puller

Product Details:
Place of Origin: China
Brand Name: Boyu
Certification: ISO9001
Model Number: TY180-2
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Container
Delivery Time: 25-35 days
Payment Terms: TT/LC
Supply Ability: 100sets/month.
Price terms.: FOB(Shanghai) or CIF (assigned port).
Detailed Product Description
Type: Stringing Equipment Hydraulic Puller Bull-wheel Diameter: 750mm
Max Intermittent Pull: 190kN Max Continuous Pull: 180kN
Overall Dimension (length*width*height): 5000x2300x2500mm Diesel: 325hp
Engine: Cummins Max Diameter Of Coupling: 100mm
High Light:

conductor stringing equipment

,

transmission line equipment

Max Pull 190kN 19T High Voltage Power Line Stringing Equipment Hydraulic Pulling machine TY180

Quick details:

  1. Tail bracket hoisting motor: American-Eton
  2. Diesel: Cummins 325hp
  3. Max rope diameter: 28mm
  4. Max reel size: 1400mm
  5. High Voltage Tansmission Line Stringing Equipment
  6. Hydraulic Pulling machine
  7. Main pump and motor: German-Rexroth
  8. Max pull: 190kN-19Tons

Performance

  1. Max intermittent pull: 190kN
  2. Max continuous pull: 180kN
  3. Speed at max pull: 2.5km/h
  4. Max speed: 6km/h
  5. Pull at max speed: 75kN

Engine

  1. Diesel 325hp
  2. Cooling system liquid
  3. Electrical system 24V

Description
The machine allows for the tension stringing of 4-bundle conductor of 630mm2 and below in mountainous and hilly areas, and of 4-bundle conductor of 720mm2 and below in flat lands; besides, it can be used for traction stringing of OPGW or ADSS optical cable and 500kV traction stringing in various terrains.

Characteristics

  1. Bull-wheel diameter: 750mm
  2. Groove number: 10
  3. Max rope diameter : 28mm
  4. Max diameter of coupling: 100mm
  5. Electric system: 24V
  6. Max diameter of rope reel: 1400mm
  7. Total weight: 6700kg
  8. Overall dimension (length*width*height): 5000x2300x2500mm

Main configuration

  1. Engine: Cummins
  2. Main pump: German-Rexroth
  3. Main motor speed reducer: German-Rexroth
  4. Tail bracket hoisting motor: American-Eton
  5. Hydraulic meter: German

Configuration


Hydraulic dynamometer with set-point and automatic control of maximum pullHydraulic oil cooling system
Control instruments for hydraulic system and diesel engineOn board reel winder with automatic level wind, suitable for standard reel mod. 1100 and 1400
Hydraulic front stabilizerGrounding connection point


Hydraulic Transmission
Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.

Additional Devices

Lighting system for the trailer
Hydraulic brake system for the trailer
Extra rollers for an additional pilot rope
Hydraulic rope clamp for reel change operations
Extra shaft
Electronic pull and speed recorder

High Voltage Power Line Stringing Equipment TY180 Hydraulic Puller 0

More pictures
High Voltage Power Line Stringing Equipment TY180 Hydraulic Puller 1High Voltage Power Line Stringing Equipment TY180 Hydraulic Puller 2High Voltage Power Line Stringing Equipment TY180 Hydraulic Puller 3


Company Introduction
Yixing Boyu Electric Power Machinery Company is located in west side of the beautiful and fertile Taihu Lake.
We are near Shanghai, Nanjing city.
Established in 1997, Yixing Boyu Electric Power Machinery Co., Ltd. is a manufacturer specialized in the research, development and production of Electric Power Machinery.
We are located in beautiful and rich city: Yixing city. We are a High-tech enterprise in Jiangsu Province, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
  1. Main configurations of our machine are from Germany and USA
  Engine: American Cummins
  Main pump: German Rexroth
  Main motor& speed reducer: German Rexroth
  Tail bracket hoisting motor: American Eton
  Hydraulic meter: German
  2. Our company was founded in 1997, having 15 years rich experience in this field. Our product sells in distant markets: Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Germany etc. Our product is also very popular in china.
  3. We have one year quality guarantee, if internal components go wrong within one year, we will change another for free.
  4. We can supply the specific components to the buyers with cost price after warranty period.
History
Founded in 1993, Yixing city power machinery factory
Established in 1997, Yixing city Boyu power machinery Co., LTD
In 2001 the company passed ISO9001 certification, and obtain the AAA certificate
In 2006 attains the Wuxi city contract trustworthiness enterprise, also achieved famous brand product in Wuxi city
In 2007 attains the high-tech enterprise of Jiangsu province, also achieved brand-name products in Jiangsu province
In 2009 reworded significant achievement in Wuxi city
In 2010 Boyu cooperated with Germany famous Caesar Company establishing the Boset brand
In 2010 achieved the national ministry of science and technology innovation in science and technology project.
To November, 2013, Boyu enterprise has already sell puller and tension equipment (excluding mobile ground grinding) nearly 5000 sets. Our products are sold well in Australia, Egypt, England, Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Algeria, Turkey, Peru, Colombia, Brazil, Argentina etc.

High Voltage Power Line Stringing Equipment TY180 Hydraulic Puller 4High Voltage Power Line Stringing Equipment TY180 Hydraulic Puller 5

Max Pull 190kN 19T High Voltage Power Line Stringing Equipment Hydraulic Pulling machine TY180
