| Highlight: | overhead line tools,transmission line construction equipment |
||
|---|---|---|---|

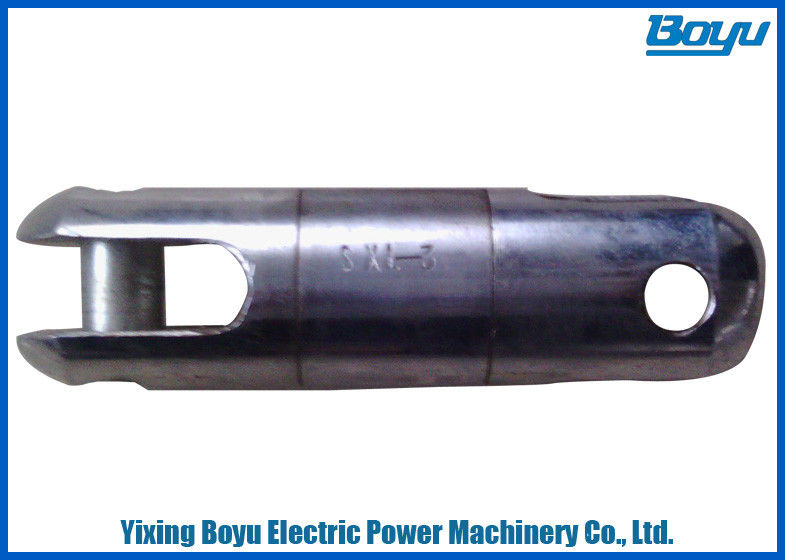

Rated Load 30kN Swivel Joints Transmission Line Stringing Accessories Tools Outside Diameter 37mm
Quick details:
1. Transmission Line Stringing Equipment Accessories & Tools
2. Swivel Joints
3. Rated Load: 30kN
4. Outside Diameter: 37mm
5. Boyu Brand
Description:
The swivel joints are suitable to connect the pulling rope to the mesh sock joint mounted on the conductor, they are mounted on thrust bearings and they are designed to avoid torsion stain accumulation. They are made of highly tensile galvanized steel, the special design can bear the high radial loads, which occur during the passage over the pulleys.
Specification:
|
Model |
Dimensions (mm) |
Rated load |
Weight |
||||
|
|
A |
B |
C |
D |
E |
(kN) |
(kg) |
|
SLX-1 |
30 |
100 |
70 |
12 |
13 |
10 |
0.4 |
|
SLX-2 |
35 |
120 |
90 |
14 |
14 |
20 |
0.55 |
|
SLX-3 |
37 |
129 |
95 |
16 |
16 |
30 |
0.65 |
|
SLX-5 |
42 |
154 |
116 |
18 |
17 |
50 |
1.5 |
|
SLX-6.5 |
51 |
185 |
140 |
20 |
19 |
65 |
2.0 |
|
SLX-8 |
57 |
220 |
165 |
24 |
22 |
80 |
2.4 |
|
SLX-13 |
62 |
248 |
192 |
26 |
24 |
130 |
3.5 |
|
SLX-18 |
75 |
294 |
222 |
26 |
26 |
180 |
7.2 |
|
SLX-25 |
85 |
331 |
251 |
30 |
30 |
250 |
10.6 |
|
SLX-32 |
85 |
346 |
264 |
38 |
30 |
320 |
9.7 |
