Aluminum Made Ground Cable Self Gripping Clamps Size 50~70mm2 Transmission Line Stringing Tools

Aluminum Made Ground Cable Self Gripping Clamps Size 50~70mm2 Transmission Line Stringing Tools
Aluminum Made Ground Cable Self Gripping Clamps Size 50~70mm2 Transmission Line Stringing Tools

Large Image :  Aluminum Made Ground Cable Self Gripping Clamps Size 50~70mm2 Transmission Line Stringing Tools

Product Details:
Place of Origin: China
Brand Name: Boyu
Certification: ISO9001
Model Number: TYSKDS-2
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Container
Delivery Time: 25-35 days
Payment Terms: TT/LC
Supply Ability: 100sets/month.
Price terms.: FOB(Shanghai) or CIF (assigned port)
Detailed Product Description
OEM: Available After Sales Service: Available
Rated Load: 30kn Max. Opening (mm): 11,13,15
Conductor Size (mm2): 25-120 Brand: Boyu
High Light:

transmission line construction equipment

,

overhead transmission line stringing equipment


Aluminum Made Ground Cable Self Gripping Clamps Size 50~70mm2 Transmission Line Stringing Tools

Quick details:
1. Transmission Line Stringing Equipment Accessories & Tools
2. Self Gripping Clamps
3. Rated Load: 20kN
4. Conductor size: 50~70mm2
5. Max. Opening: 13mm
6. Weight: 3.1kgs
7. Ground Cable

8. Boyu Brand

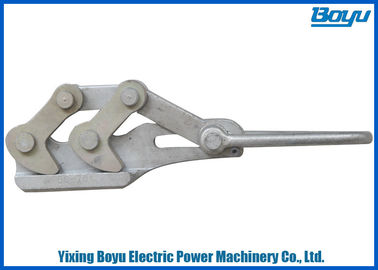

Description:
The self gripping clamps can be use to anchor and to string conductor (aluminum, ACSR, copper...) and steel rope. The body is made of high strength hot forged steel or Aluminum, in order to minimize the ratio between weight and working load.


Specification:

Model

Conductor size (mm2)

Rated load (kN)

Max. opening (mm)

Weight (kg)

SKDS-1

25~50

10

11

2.6

SKDS-2

50~70

20

13

3.1

SKDS-3

70~120

30

15

4.1


More Pictures
Aluminum Made Ground Cable Self Gripping Clamps Size 50~70mm2 Transmission Line Stringing Tools 0Aluminum Made Ground Cable Self Gripping Clamps Size 50~70mm2 Transmission Line Stringing Tools 1

Maufacturer Introduction

Jiangsu Province Yixing Boyu Electric Power Machinery Company is located in west side of the beautiful and fertile Taihu Lake. We are near Shanghai City, about 3 hours by car.

Our company is high-tech enterprise of Jiangsu province having six patents, including two invention patents. Our company has a total area of 42800 square meters, having formed four series products:

1: Line Stringing Equipment and accessories and tools.
2: Nonmetallic galvanized the production equipment (Achieved high-tech products)
3: Numerical control machine
4: Low voltage no power-arc furnace compensation system





History

Established in 1994, Yixing city Boyu power machinery Co., LTD

In 2001 the company passed ISO9001 certification, and obtain the AAA certificate

In 2006 attains the Wuxi city contract trustworthiness enterprise, also achieved famous brand product in Wuxi city

In 2007 attains the high-tech enterprise of Jiangsu province, also achieved brand-name products in Jiangsu province

In 2009 reworded significant achievement in Wuxi city

In 2010 Boyu cooperated with Germany famous Caesar Company establishing the Boset brand

In 2010 achieved the national ministry of science and technology innovation in science and technology project.

To November, 2013, Boyu enterprise has already sell puller and tension equipment (excluding mobile ground grinding) nearly 5000 sets. Our products are sold well in Australia, Egypt, England, Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Algeria, Turkey, Peru, Colombia, Brazil, Argentina etc.
