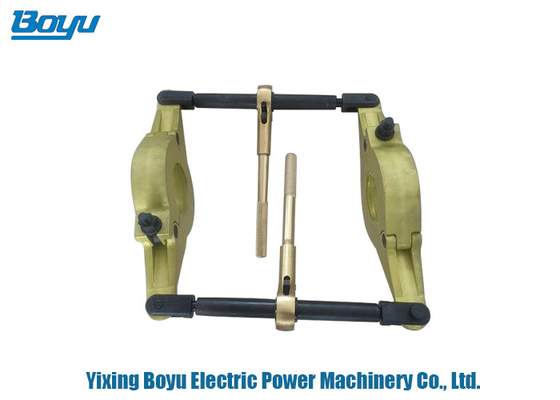

TYDBK-36 36kN Aluminum Alloy Transmission Line Stringing Tools Conductor

TYDBK-36 36kN Aluminum Alloy Transmission Line Stringing Tools Conductor
TYDBK-36 36kN Aluminum Alloy Transmission Line Stringing Tools Conductor TYDBK-36 36kN Aluminum Alloy Transmission Line Stringing Tools Conductor

Large Image :  TYDBK-36 36kN Aluminum Alloy Transmission Line Stringing Tools Conductor

Product Details:
Place of Origin: China
Brand Name: BOYU
Certification: ISO9001
Model Number: TYDBK-36
Payment & Shipping Terms:
Minimum Order Quantity: 100 pieces
Price: Negotiable
Packaging Details: Container
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 2000sets/month.
Detailed Product Description
Main Material: Aluminum Alloy Rated Load: 36kN
Fixture Center Distance: 380~400mm Screw Stroke: 220mm
Voltage Class: 35~110KV Ordinary Insulator Type: 100kN
High Light:

Aluminum Alloy Transmission Line Stringing Tools

,

conductor transmission stringing tools

,

36kN conductor stringing tools

Transmission Line Stringing Tools TYDBK-36 Aluminum Alloy Insulator Replacement Tool



TYDBK Insulator Replacement Tool

  • The closed card is designed for 10-1000KV potential or power failure to replace the porcelain bottle.
  • It is mainly used for any piece of porcelain bottle in the tension-resistant porcelain bottle string or straight-line porcelain bottom string.
  • Tighten the broken porcelain bottle string on both sides, loosen the middle one and replace it at the same time, and then release the two tightened porcelain bottles.
  • Either the job can be done or the end clamps can be produced.
  • Applicable: porcelain bottle insulator; glass insulator
  • Tools should be used when using: canceller (sold separately)
  • Front and rear hanging points: steel cap.
Model

Rated load

(KN)

Ordinary insulator type (KN)

Voltage class (KV)

Fixture center distance

(mm)

Screw stroke

(mm)

Main material

TYDBK-30 30 70 10~35 350~380 220 Aluminum alloy
TYDBK-36 36 100 35~110 380~400 220 Aluminum alloy
TYDBK-42 42 160 110~220 400~420 420~620 Aluminum alloy
TYDBK-46 46 210 110~220 420~440 450~720 Aluminum alloy
TYDBK-80 80 300 220~330 420~500 480~720 Aluminum alloy
TYDBK-100 100 400 220~500 480~520 480~720 Aluminum alloy
TYDBK-125 125 420 220~500 480~520 480~720 Aluminum alloy
TYDBK-150 150 550 500~1000 540~600 480~750 Aluminum alloy
