Product Details:
Payment & Shipping Terms:
|
| Type: | Hydraulic Pipe Bender | Out Put: | 60Mpa |
|---|---|---|---|
| Stroke: | 120mm | Weight: | 16kg |
| High Light: | 60mpa hydraulic pipe bender,transmission line stringing hydraulic pipe bender,60mpa hydraulic tube bender |
||

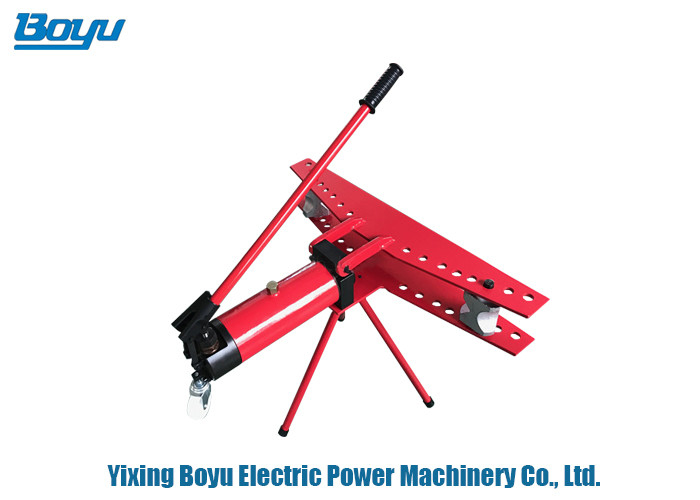

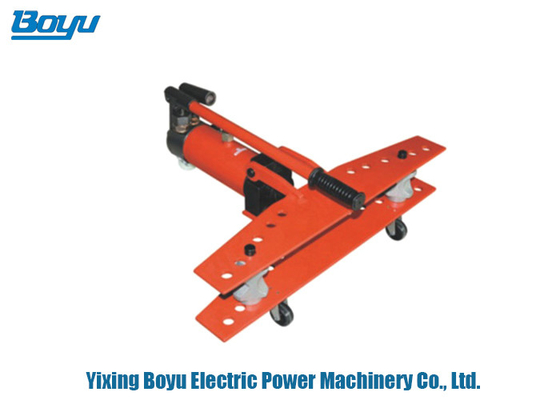

Transmission Line Stringing Tools Hydraulic Pipe Bender Output 60Mpa
| Hydraulic Pipe Bender | ||||||
|
Uses: It is suitable for bending and forming of galvanized water pipes,thick steel pipes,conductor pipes and gas pipes. Explain:Type CPB need to be equipped with a hydraulic pump. |
||||||
| Model | SWG-25 | SWG-1 | SWG-2 | SWG-3 | SWG-4 | SWG-255 |
| Output | 60 | 100 | 160 | 180 | 200 | 200 |
| Stroke(mm) | 120 | 160 | 230 | 320 | 380 | 380 |
| Wall thickness(mm) | 1.5-5 | 2-5 | 2.5-5 | 2.5-5 | 2.5-6 | 2.5-6 |
| Weight(kg) | 16 | 20 | 47.5 | 97 | 137 | 186 |
| Beding angle(rad) | π/2≤a≤π | π/2≤a≤π | π/2≤a≤π | π/2≤a≤π | π/2≤a≤π | ≤90° |
| Pipediameter(mm) |
Φ10 Φ13 Φ16 Φ19 Φ22 Φ25 |
Φ13 Φ16 Φ19 Φ22 Φ28 Φ34 |
Φ22 Φ28 Φ34 Φ42 Φ48 Φ60
|
Φ22 Φ28 Φ34 Φ42 Φ48 Φ60 Φ75.5 Φ89 |
Φ22 Φ28 Φ34 Φ42 Φ48 Φ60 Φ75.5 Φ89 Φ108 |
Φ22 Φ28 Φ34 Φ42 Φ48 Φ60 Φ75.5 Φ89 Φ108 Φ114 |
