Product Details:
Payment & Shipping Terms:
|
| Type: | Hydraulic Bus-bar Bender | Out Put: | 44Mpa |
|---|---|---|---|
| Stroke: | 250mm | Bending Ability: | 40-100(Width) 4-10(Thickness) |
| Bending Angle: | 90°| Radius Of Curvature: |
25 Times The Width |
|
| High Light: | output 44 mpa hydraulic bus bar bender,transmission line hydraulic bus bar bender,transmission line stringing busbar bending tool |
||

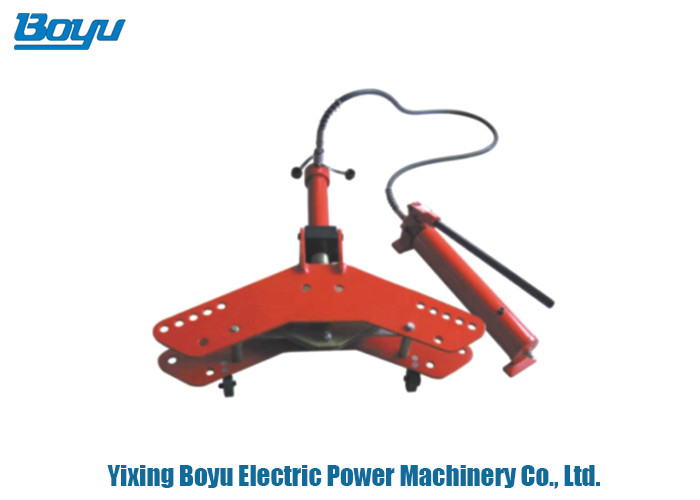

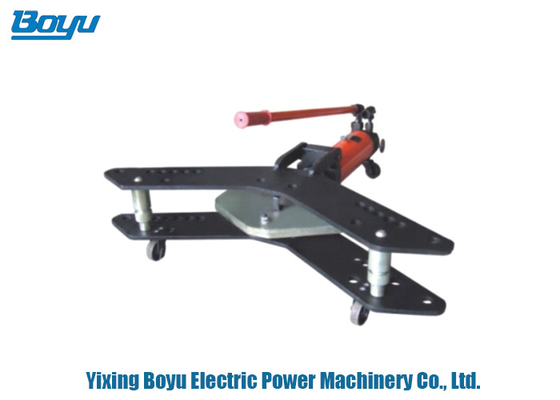

Transmission Line Stringing Tools Hydraulic Bus-bar Bender Out Put 44 Mpa
| Hydraulic Bus-bar Bender | ||||
| Uses: For vertical bending. | ||||
| Model | SCB-100D | BCB-100A | SCB-120D | BCB-120A |
| Out put (Mpa) | 44 | 59 | ||
| Stroke(mm) | 250 | 320 | ||
| Bending ability(mm) | 40-100(Width) 4-10(Thickness) | 40-100(Width) 4-10(Thickness) | ||
| Bending angle(mm) | 90°<A< 180° | 90°<A< 180° | ||
| Radius of curvature | 25 times the width | 25 times the width | ||
| Weight(kg) | 50kg | 100kg | ||
| Size(mm) | 760x380x580mm | 960x450x540mm | ||
