30mm Transmission Line Stringing Tools Cable Wire Peeling Stripper

Large Image : 30mm Transmission Line Stringing Tools Cable Wire Peeling Stripper

Product Details:

Place of Origin:	China
Brand Name:	BOYU
Certification:	ISO9001
Model Number:	TYBP40

Payment & Shipping Terms:

Minimum Order Quantity:	10 pieces
Price:	Negotiable
Packaging Details:	Container
Delivery Time:	15~25 days
Payment Terms:	L/C, T/T
Supply Ability:	10000sets/month.

Contact Now

Detailed Product Description

Type:	Cable Stripper	Insulated Conductor Diameter:	30mm
Insulating Layer:	4.5mm	Weight:	0.8kg
Remark:	Ending Or Middle Stripping	Application:	Transmission Line Stringing Construction
Highlight:	30mm transmission line stringing tools , peeling stripper transmission line stringing tools

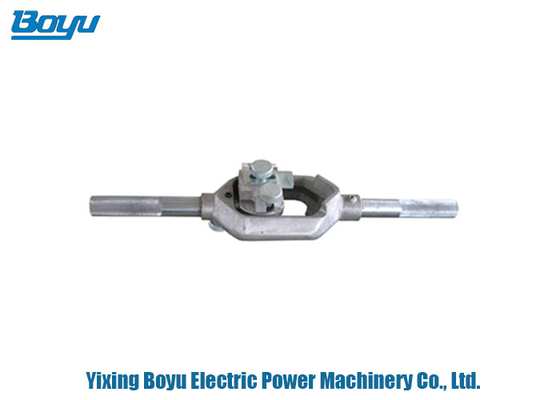

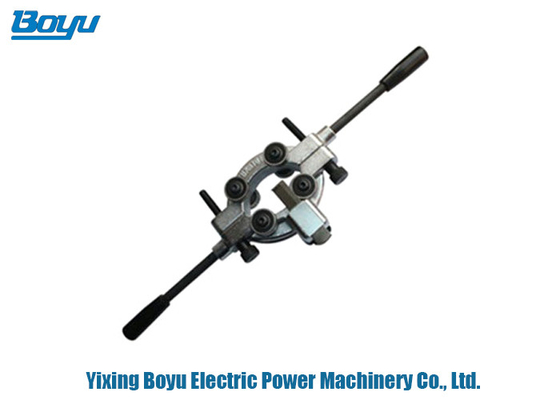

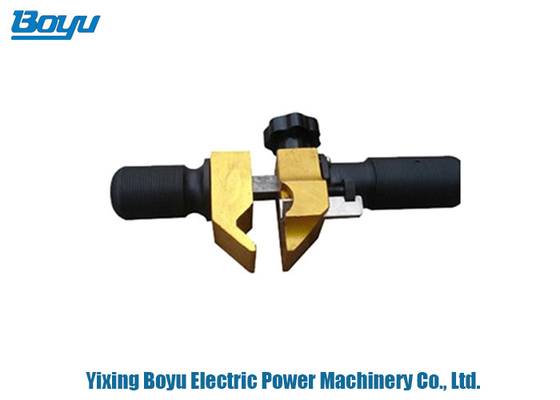

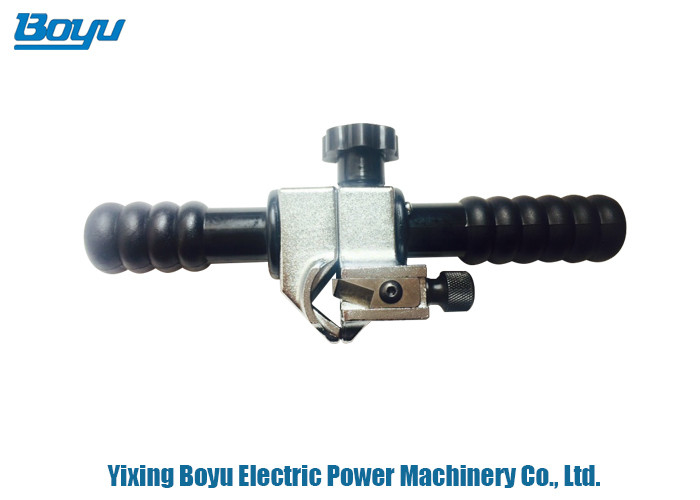

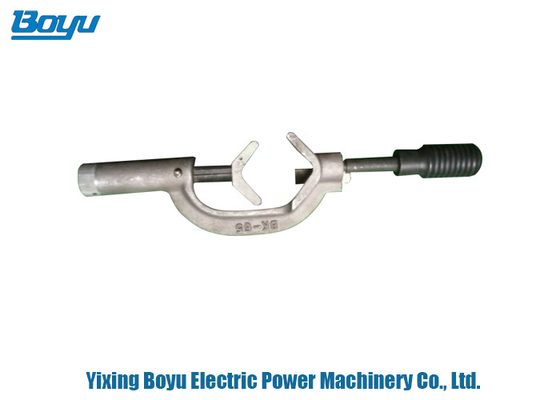

Transmission Line Stringing Tools Cable Wire Peeling Stripper

Cable Stripper
Uses: Apply to stripping the insulation layer of insulated conductor and the semi-insulation layer of cable and it will not damage the insulation layer.
Model	Insulated Conductor Diameter (mm)	Insulating Layer (mm)	Weight (KG)	Remark
BP40	≤30	≤4.5	0.8	Ending or Middle Stripping
BK40	≤40	≤12	0.8
BK65	≤65	≤15	1
BK105	≤105	≤30	3.5
BK160	≤160	≤35	5

30mm Transmission Line Stringing Tools Cable Wire Peeling Stripper 0

30mm Transmission Line Stringing Tools Cable Wire Peeling Stripper 1
