Type: | Hydraulic Puller Power Line Stringing Equipment | Max Intermittent Pulling Force: | 150 KN |
---|---|---|---|
Overall Dimension (length*width*height): | 4800*2350*2470 Mm | Engine: | Cummins |
Model: | Straight Type Six-cylinder Pressurizing Four-stroke Diesel Engine | Rotary Speed When Maximum Torque: | 1500 R/min |
High Light: | hydraulic overhead line stringing tools,conductor stringing tools,transmission line stringing machine |

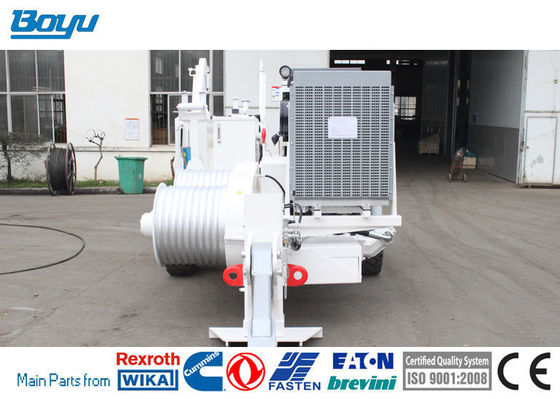

TY150 Hydraulic Puller Power Line Stringing Equipment German Rexroth Main Pump
Structure parameter | Pulling wheel diameter: 600 mm |
Groove number: 9 | |
Max diameter of applicable pulling rope: 26 mm | |
Weight: 6600 kg | |
Overall dimension (length*width*height): 4800*2350*2470 mm | |
Hoisting mode: Single point |
Main technical performance parameter | Max intermittent pulling force: 150 kN |
Max continuous pulling force: 120 kN | |
Corresponding speed: 2.5 km/h | |
Max continuous tractive speed: 5 km/h | |
Corresponding pulling force: 60 kN |
Electric system | Storage battery: 24V electric starting |
System voltage: 24V |
Engine | Type: Cummins 6CTA8.3-C260 |
Model: Straight type six-cylinder pressurizing four-stroke diesel engine | |
Cylinder diameter * stroke: 114*135 mm | |
Total air output: 8.3 L | |
Rated speed: 2200 r/min | |
Rated power (one hour power): 194 kw | |
Max torque: 1135 Nm | |
Rotary speed when maximum torque: 1500 r/min | |
Fuel consumption rate (bench test): 238 g/kw.h | |
Cooling method: forced air cooling |
Auxiliary oilway hydraulic system | Open type constant displacement throttle speed governing hydraulic system is supplied oil by gear pump and controls oil liquor’s cooling and hoisting tail bracket’s lifting of the whole hydraulic system through hand operated direction valve and ball valve. |
System working pressure: 12Mpa | |
Duplex gear pump: 1PF2G2-4X/016+014RR20MRL | |
Fan motor: GM5-12-1FE13-S-20 | |
Hoisting motor: J2K-305 | |
Sleeve extension oil cylinder: 3TG110×250 | |
Radiator: B5024 |
Taking puller’s place
1. Haul puller into selected field to put; make incoming line groove of pulling wheel aim to rod tower center as much as possible; the deviation range is ±7°to reduce lateral load. The laying location and rod tower shall be 100m~150m apart, when deviating from this range, the pulling wheel and pulling wheel cover shall be worn out in the process of traction.
2. After determining the location of puller, start adjusting working location of puller (given as figure 1). Retract fore stabilizer completely; make back stabilizer be adjusted to suitable location and insert pin shaft. Here the puller is in working position.
3. Anchoring puller (given as figure 3). Center stressing direction of anchor bed shall align with stretch direction of anchor in order to make anchor bear pulling force and not bear lateral force. When anchoring, anchor block, steel wire rope loop, shackle, lever block or double hook with above 10-ton stress shall be used; directly pre-tension the anchor after jointing.
4. Two anchor points in the forepart of puller are to adjust the consistency of puller and wire tower direction. If the deviation of puller and wire tower is more than 10°, the double-end anchor in the forepart shall be adjusted to correct.
