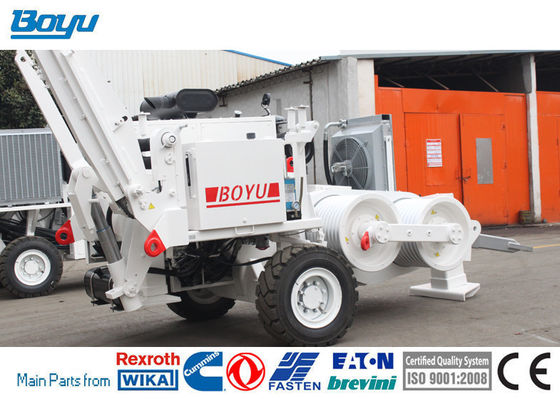

Power Line Stringing Equipment 150kN Puller Machine For Overhead Line With Cummins Engine
| Purposes and characteristic | |
|
The machine is a kind of high efficiency electric construction machinery, with good entire performance, high configuration of main functional components, large power reserve, quick pulling speed and wide application. The machine is mainly matched with small efficiency tensioner, is used for the stringing of pulling ropes and also pulls conductor under meeting pulling force. It can satisfy the stringing of double-bundle LGJ-720 and below conductor in mountainous area and foothills, four-bundle LGJ-630 and below conductor in flatlands, OPGW or ADSS optical cable in various terrains, and 500KV and below wire pulling ropes in various terrains. |
|
| Performance parameter | |
| Main technical performance parameter | |
| Max intermittent pulling force | 150 kN |
| Max continuous pulling force | 120 kN |
| Corresponding speed | 2.5 km/h |
| Max continuous tractive speed | 5 km/h |
| Corresponding pulling force | 60 kN |
| Structure parameter | |
| Pulling wheel diameter | 600 mm |
| Groove number | 9 |
| Max diameter of applicable pulling rope | 26 mm |
| Weight | 6600 kg |
| Overall dimension (length*width*height) | 4800*2350*2470 mm |
| Hoisting mode | Single point |
| Engine | |
| Type | Cummins 6CTA8.3-C260 |
| Model | Straight type six-cylinder pressurizing four-stroke diesel engine |
| Cylinder diameter * stroke | 114*135 mm |
| Total air output | 8.3 L |
| Rated speed | 2200 r/min |
| Rated power (one hour power) | 194 kw |
| Max torque | 1135 Nm |
| Rotary speed when maximum torque | 1500 r/min |
| Fuel consumption rate (bench test) | 238 g/kw.h |
| Cooling method | Forced air cooling |
| Electric system | |
| System voltage | 24V |
| Storage battery |
24V electric starting |
| Auxiliary oilway hydraulic system | |
| Open type constant displacement throttle speed governing hydraulic system is supplied oil by gear pump and controls oil liquor’s cooling and hoisting tail bracket’s lifting of the whole hydraulic system through hand operated direction valve and ball valve. | |
| System working pressure | 12Mpa |
| Duplex gear pump | 1PF2G2-4X/016+014RR20MRL |
| Fan motor | GM5-12-1FE13-S-20 |
| Hoisting motor | J2K-305 |
| Sleeve extension oil cylinder | 3TG110×250 |
| Radiator | B5024 |
| Drive system | |
| Closed type circuit hydraulic drive system adjusts speed through hydraulic plunger pump with bi-directional variable displacement, reduces speed through planet gear and drives pulling wheels to rotate in positive and negative directions through the first level gear terminal drive. | |
| Cooling mode | Forced cooling |
| Main pump | |
| Model | sloping cam plate bi-directional plunger pump (German Rexroth) |
| Type | A4VG250EP4DT1/32R-NSF02F021 |
| Hydraulic motor | |
| Model | inclined-axis bi-directional constant displacement tapered plunger motor (German Rexroth) |
| Type | A2FE180/61W-VZL106 |
| Speed reducer | |
| Model | two-grade planet gear reduction (German Rexroth made by Beijing sole investment plant) |
| Type | 310 L2 |
| Reduction ratio | 21.8 |
| Brake response pressure | 2.5Mpa |
