Power Line Stringing Equipment Hydraulic Cable Puller Tension Stringing Of 4-bundle Conductor

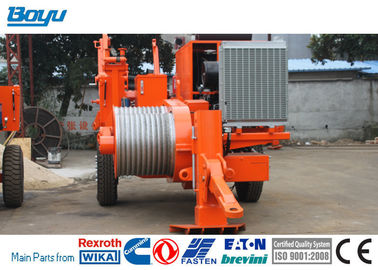

TY180 Hydraulic Puller
The machine allows for the tension stringing of 4-bundle conductor of 630mm2 and below in mountainous and hilly areas, and of 4-bundle conductor of 720mm2 and below in flat lands; besides, it can be used for traction stringing of OPGW or ADSS optical cable and 500kV traction stringing in various terrains, suitable for use at altitudes up to 1500 meters above sea level.
| Model | TY180 |
| Max pull | 190kN |
| Max continuous pull | 180kN |
| Engine | Cummins |
| Diesel | 325hp |
Performance
Max pull: 190kN
Max continuous pull: 180kN
Speed at max pull: 2.5km/h
Max speed: 6km/h
Pull at max speed: 75kN
Characteristics
Bull-wheel diameter: 750mm
Groove number: 10
Max rope diameter : 28mm
Max diameter of rope reel: 1400mm
Total weight: 6700kg
Overall dimension (length*width*height): 5000x2300x2500mm
Main configuration
Engine: Cummins
hydraulic pump: German Rexroth
Main motor: German Rexroth
speed reducer: German Rexroth
Tail bracket hoisting motor: American Eton
Hydraulic meter: German
Operating handle: German Rexroth
Engine
Diesel 325hp Euro III, 4-stroke cycle, turbo-charged
Cooling system liquid, Electrical system 24V
Configuration
Hydraulic dynamometer with set-point and automatic control of maximum pull
Control instruments for hydraulic system and diesel engine
On board reel winder with automatic level wind, suitable for standard reel mod. 1100 and 1400
Hydraulic oil cooling system
Hydraulic front stabilizer, Grounding connection point
Additional Devices
Trailer for towing at max speed of 30 km/h
Lighting system for the trailer
Swivel guide rope roller
Hydraulic rope clamp for reel change
Extra shaft
Digital speed and meter counter (extra charge)
Additional Devices
The chassis provided with Brake, back lights and mudguard, with a single point lift to allow lifting with a crane.
Cable and radio remote control fully replacing all controls at machine panel.
Biodegradable hydraulic oil, Allowable tension indictor, Overload tension alarm, First Aid Kit
Manufacturer's workshop maintenance manual, in English
Manufacturer's recommended tools.
Hydraulic system for drum stand control with flat face quick action couplings
Auxiliary Hydraulic system (700/1000 bar) for power pressing tool
Manufacturer's routine spares for five years' duty (filters, bulbs, etc.).
Remote diagnosis via GSM network with GPS modem, Synchronization system
Lockable toolbox, Holding fixture for hose kit, Grounding plate, Acoustic insulation
