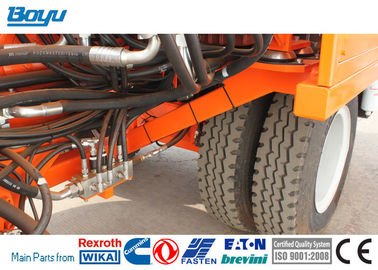

Cummins Engine Power Line Stringing Equipment Max Intermittent Pull 220kn

Cummins Engine Power Line Stringing Equipment Max Intermittent Pull 220kn
Cummins Engine Power Line Stringing Equipment Max Intermittent Pull 220kn
video play

Large Image :  Cummins Engine Power Line Stringing Equipment Max Intermittent Pull 220kn

Product Details:
Place of Origin: China
Brand Name: Boyu
Certification: ISO9001
Model Number: TY220-7
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Container
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 100sets/month.
Contact Now
Detailed Product Description
Max Intermittent Pull: 220kN Bull-wheel Diameter: 760mm
Max Rope Diameter: 30mm Overall Dimension (length*width*height): 5300×2600×2750mm
Diesel: 239kw(320hp) Engine: Cummins
Main Pump: German Rexroth Tail Bracket Hoisting Motor: American Eton
High Light:

transmission line equipment

,

cable pulling equipment

Power Line Stringing Equipment Cummins Engine Hydraulic Puller Max Intermittent Pull 220kN



TY220 Hydraulic Puller
The machine allows for the tension stringing of 4-bundle conductor of 630mm2 and below in mountainous and hilly areas, and of 4-bundle conductor of 720mm2 and below in flat lands; besides, it can be used for traction stringing of OPGW or ADSS optical cable and 500kV traction stringing in various terrains.
Characteristics
  • Bull-wheel diameter: 760mm
  • Groove number: 10
  • Max rope diameter : 30mm
  • Max diameter of coupling: 100mm
  • Electric system: 24V
  • Max diameter of rope reel: 1600mm
  • Total weight: 6800kg
  • Overall dimension (length*width*height): 5300×2600×2750mm
Performance
  • Max intermittent pull: 220kN
  • Max continuous pull: 180kN
  • Speed at max pull: 2.5km/h
  • Max speed: 5km/h
  • Pull at max speed: 90kN
Engine
  • Diesel: 239kw(320hp)
  • Cooling system: water
  • Electrical system: 24V
Main configuration
  • Engine: Cummins
  • Main pump: German Rexroth
  • Main motor speed reducer: German Rexroth
  • Tail bracket hoisting motor: American Eton
  • Hydraulic meter: German
  • Operating handle: German Rexroth
Hydraulic Transmission
Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.
Configuration
  • Hydraulic dynamometer with set-point and automatic control of maximum pull
  • Hydraulic oil cooling system
  • Control instruments for hydraulic system and diesel engine
  • On board reel winder with automatic level wind, suitable for standard reel mod. 1400 and 1600
  • Hydraulic front stabilizer
  • Grounding connection point
Additional Devices
  • Lighting system for the trailer
  • Air brake system for the trailer
  • Hydraulic rope clamp for reel change(extra charge)
  • Swivel guide rope roller
  • Trailer for towing at max speed of 30 km/h
  • Extra shaft
  • Digital speed and meter counter
