TY280 Hydraulic Puller Stringing Equipment Max Intermittent Pull 280kN

TY280 Hydraulic Puller Stringing Equipment Max Intermittent Pull 280kN
TY280 Hydraulic Puller Stringing Equipment Max Intermittent Pull 280kN
video play

Large Image :  TY280 Hydraulic Puller Stringing Equipment Max Intermittent Pull 280kN

Product Details:
Place of Origin: China
Brand Name: Boyu
Certification: ISO9001
Model Number: TY280-1
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Container
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 100sets/month.
Detailed Product Description
Max Intermittent Pull: 280kN Max Continuous Pull: 250kN
Bull-wheel Diameter: 960mm Groove Number: 11
Total Weight: 15500kg Overall Dimension (length*width*height): 5800×2300×2700mm
Engine: Cummins Diesel: 298kw(400hp)
High Light:

conductor stringing equipment

,

transmission line equipment



Power Line Stringing Equipment TY280 Hydraulic Puller Max Intermittent Pull 280kN



TY280 Hydraulic Puller

This machine is mainly applied in long-span and mountainous areas and foothills for tension stringing of 4-bundle conductor of 500kV or twin-bundle conductor of 220kV and conductor 800mm2 below, allowing for the tension stringing of 500kV haulage rope in various terrains.



Model TY280
Max intermittent pull 280kN
Diesel 298kw(400hp)
Engine Cummins



Characteristics

  1. Bull-wheel diameter: 960mm
  2. Groove number: 11
  3. Max rope diameter : 38mm
  4. Max diameter of connector: 100mm
  5. Max diameter of rope reel: 1600mm
  6. Total weight: 15500kg
  7. Overall dimension (length*width*height): 5800×2300×2700mm

Performance

  1. Max intermittent pull: 280kN
  2. Max continuous pull: 250kN
  3. Speed at max pull: 2.5km/h
  4. Max speed: 5km/h
  5. Pull at max speed: 120kN

Engine

  1. Diesel: 298kw(400hp)
  2. Cooling system: water
  3. Electrical system: 24V

Main configuration

  1. Engine: Cummins
  2. Hydraulic meter: German
  3. Operating handle: German Rexroth
  4. Tail bracket hoisting motor: American Eton
  5. Main pump: German Rexroth
  6. Main motor speed reducer: German Rexroth

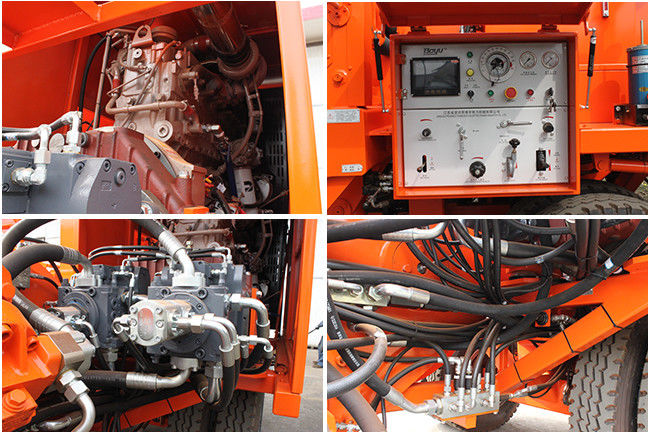

TY280 Hydraulic Puller Stringing Equipment Max Intermittent Pull 280kN 0



Hydraulic Transmission

Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.

Configuration

Hydraulic dynamometer with set-point and automatic control of maximum pull

Hydraulic oil cooling system

Control instruments for hydraulic system and diesel engine

On board reel winder with automatic level wind, suitable for standard reel mod. 1400 and 1600

Hydraulic front stabilizer

Grounding connection point

Additional Devices

Lighting system for the trailer

Air brake system for the trailer

Hydraulic rope clamp for reel change

Swivel guide rope roller

Trailer for towing at max speed of 30 km/h

Extra shaft

Digital speed and meter counter



TY280 Hydraulic Puller Stringing Equipment Max Intermittent Pull 280kN 1
