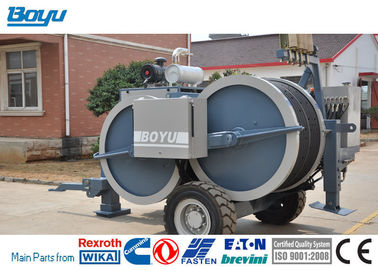

TY1x80 Overhead Line Stringing Equipment Twin Bundle Conductor Hydraulic Tensioner

Large Image : TY1x80 Overhead Line Stringing Equipment Twin Bundle Conductor Hydraulic Tensioner

Product Details:

Place of Origin:	China
Brand Name:	Boyu
Certification:	ISO9001
Model Number:	TY1X80

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	Negotiable
Packaging Details:	Container
Delivery Time:	25-35 days
Payment Terms:	TT/LC
Supply Ability:	100sets/month.

Contact Now

Detailed Product Description

Max Tension:	1x80kN	Diesel:	105hp
Cooling System:	Liquid	Main Motor:	German Rexroth/French Leduc
Engine:	Cummins	Groove Number:	8
Overall Dimension (lengthwidthheight):	4500×2350×2700mm	Type:	Overhead Line Stringing Equipment Hydraulic Tensioner
Highlight:	hydraulic cable puller , Power Line Stringing Equipment

Hydraulic Cable Tensioner TY1x80 Twin-bundle Conductor Hydraulic Tensioner Max Tension: 1x80kN

TY1x160 Hydraulic Tensioner

The machine allows for the tension stringing of one,two, three or four-bundle conductor of 630mm2;
besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains, suitable for use at altitudes up to 1500 meters above sea level.

Characteristics
Bull-wheel diameter	1500mm
Max conductor diameter	42mm
Groove number	8
Total weight	6230kg
Overall dimension (lengthwidthheight)	4500×2350×2700mm
Performance
Max tension	1x80kN
Speed at max pull	2.5km/h
Max speed	6km/h
Pull at max speed	1x40kN
Max reverse pulling force	1x70kN
Main configuration
Engine	Cummins
Hydraulic pump	German Rexroth/Dnish Danfoss
Main motor	German Rexroth/French Leduc
Speed reducer	German Rexroth
Hydraulic meter	German
Operating handle	German Rexroth
Engine
Diesel	105hp Euro II, 4-stroke cycle, turbo-charged
Cooling system	liquid
Electrical system	24V
Hydraulic Transmission
The machine can realize step less speed.
The machine is provided with tension presetting system.

Additional Devices

Lighting system for the trailer

Swivel guide rope roller

Hydraulic front stabilizer

Trailer for towing at max speed of 30 km/h

Digital speed and meter counter

Lighting system for the trailer

The chassis provided with Brake, back lights and mudguard, with a single point lift to allow lifting with a crane.

Cable and radio remote control fully replacing all controls at machine panel.

Hydraulic system for drum stand control with flat face quick action couplings

Remote diagnosis via GSM network with GPS modem, Synchronization system

Auxiliary Hydraulic system (700/1000 bar) for power pressing tool

Lockable toolbox, Holding fixture for hose kit, Grounding plate, Acoustic insulation

Biodegradable hydraulic oil, Allowable tension indictor, Overload tension alarm, First Aid Kit

Manufacturer's workshop maintenance manual, in English

Manufacturer's recommended tools.

Manufacturer's routine spares for five years' duty (filters, bulbs, etc.).

Configuration

Negative self-acting hydraulic brakes

Digital speed and meters counter

Hydraulic dynamometers, Hydraulic oil cooling system

Control instruments for hydraulic system and diesel engine

Hydraulic power pack to control up to 2 separate drum stands with hydraulic motor

Rigid axle for towing at max speed of 30km/h with parking brake

Grounding connection point

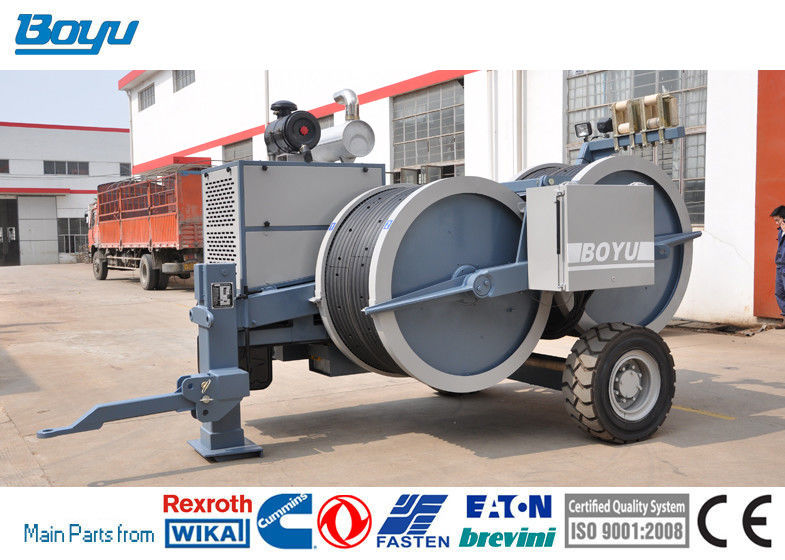

TY1x80 Overhead Line Stringing Equipment Twin Bundle Conductor Hydraulic Tensioner 0
