Product Details:
Payment & Shipping Terms:
|
| Conductor Size: | 90-120mm2 | Rated Load: | 15kN |
|---|---|---|---|
| Max.opening: | 18mm | Weight: | 1.4kg |
| Usage: | Heavy Duty | Type: | Self Gripping Clamp |
| High Light: | transmission line construction equipment,overhead transmission line stringing equipment |
||

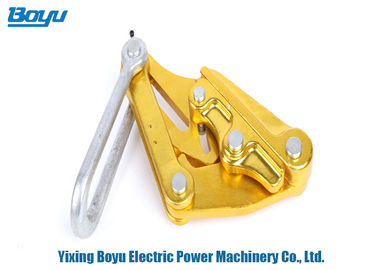

Come Along Clamps Conductor Gripper Aluminum Self Gripping Clamps
| For Conductor | ||||
| Model | Conductor size (mm2) | Rated load (kN) | Max. opening (mm) | Weight (kg) |
| SKL-7 | 25~70 | 7 | 14 | 1.0 |
| SKL-15 | 95~120 | 15 | 18 | 1.4 |
| SKL-25 | 150~240 | 25 | 22.5 | 3.0 |
| SKL-40 | 300~400 | 40 | 32 | 4.0 |
| SKL-50 | 500~630 | 50 | 36 | 6.6 |
| SKL-40G | 400 | 40 | 32 | 4.3 |
| SKL-50GA | 500 | 50 | 34 | 7.0 |
| SKL-50GB | 630 | 50 | 36 | 7.3 |
| SKL-60G | 720 | 60 | 38 | 9.2 |
| SKL-70G | 900 | 70 | 42 | 14 |
| SKL-80G | 1000 | 80 | 45 | 18 |
| SKL-80GA | 1200 | 80 | 48 | 18 |
| G-with protection hook device | ||||
