Product Details:
Payment & Shipping Terms:
|
| Conductor Size: | 25-70mm2 | Rated Load: | 7kN |
|---|---|---|---|
| Max.opening: | 14mm | Weight: | 1.0kg |
| Usage: | Heavy Duty | Type: | Self Gripping Clamp |
| High Light: | transmission line construction equipment,overhead transmission line stringing equipment |
||

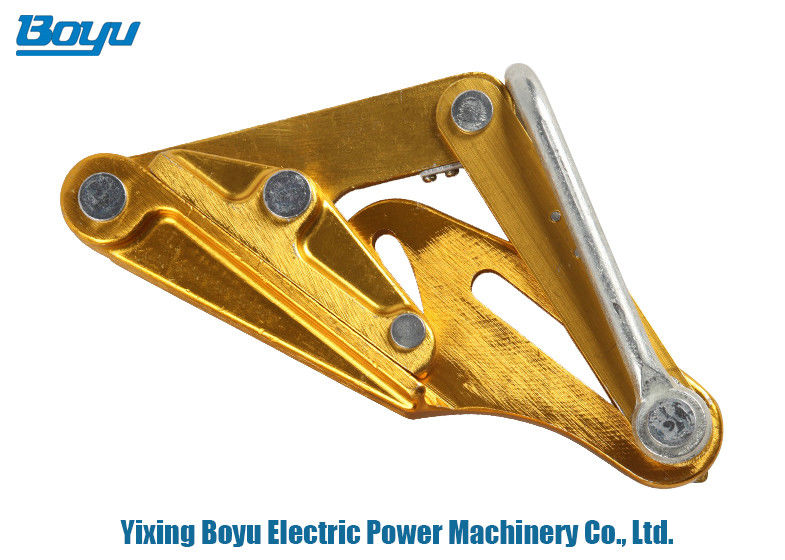

Transmission Line Stringing Tools Conductor Aluminum Self Gripping Clamps
The self gripping clamps can be use to anchor and to string conductor (aluminum, ACSR, copper...) and steel rope. The body is made of high strength hot forged steel or Aluminum, in order to minimize the ratio between weight and working load.
| For Conductor | ||||
| Model | Conductor size (mm2) | Rated load (kN) | Max. opening (mm) | Weight (kg) |
| SKL-7 | 25~70 | 7 | 14 | 1.0 |
| SKL-15 | 95~120 | 15 | 18 | 1.4 |
| SKL-25 | 150~240 | 25 | 22.5 | 3.0 |
| SKL-40 | 300~400 | 40 | 32 | 4.0 |
| SKL-50 | 500~630 | 50 | 36 | 6.6 |
| SKL-40G | 400 | 40 | 32 | 4.3 |
| SKL-50GA | 500 | 50 | 34 | 7.0 |
| SKL-50GB | 630 | 50 | 36 | 7.3 |
| SKL-60G | 720 | 60 | 38 | 9.2 |
| SKL-70G | 900 | 70 | 42 | 14 |
| SKL-80G | 1000 | 80 | 45 | 18 |
| SKL-80GA | 1200 | 80 | 48 | 18 |
| G-with protection hook device | ||||
