Stringing Equipment Hydraulic Cable Tensioner Cummins Engine Groove number 2x5

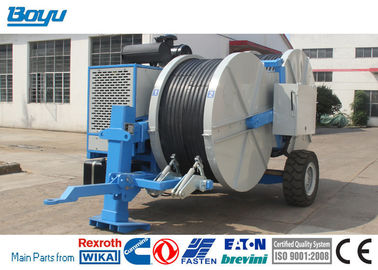

TY2x40 Hydraulic Tensioner
The machine allows for the tension stringing of twin-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains; besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains
| Characteristics |
Bull-wheel diameter: 1300/1500mm Max conductor diameter: 40mm Groove number: 2x5 Total weight: 5800kg Overall dimension (length*width*height): 4300×2250×2700mm |
| Performance |
Max intermittent pull: 2x45kN Max continuous pull: 2x40kN Speed at max pull: 2.5km/h Max speed: 5km/h Pull at max speed: 2x20kN Max reverse pulling force: 2x35kN Max reverse pulling speed: 5km/h |
| Main configuration |
Engine: Cummins Hydraulic pump: German Rexroth/Dnish Danfoss Main motor:German Rexroth/French Leduc Speed reducer: German Rexroth Hydraulic meter: German Operating handle: German Rexroth |
| Engine |
Diesel 77kw(103hp) Cooling system water Electrical system 24V |
| Hydraulic Transmission |
The machine can realize step less speed. The machine is provided with tension presetting system. |
| Main configuration |
Engine: Cummins Hydraulic pump: German Rexroth/Dnish Danfoss Main motor:German Rexroth/French Leduc Speed reducer: German Rexroth Hydraulic meter: German Operating handle: German Rexroth |
| Additional Devices |
Lighting system for the trailer 2 hydraulic rope/conductor clamp(extra charge) Swivel guide rope roller Trailer for towing at max speed of 30 km/h Digital speed and meter counter |
| Configuration |
Hydraulic dynamometers Hydraulic oil cooling system Digital speed and meter counter Hydraulic front stabilizer Grounding connection point Hydraulic power pack to control up to 2 separated drum stands with hydraulic motor |
| Model | Bull-wheel diameter | Max conductor diameter | Total weight | Overall damension |
| mm | mm | kg | mm | |
| TY1X7.5 | 1100 | 24 | 850 | 2300*1250*1620 |
| TY1X20 | 1300 | 40 | 1920 | 4080*1930*2300 |
| TY1X20II | 800 | 23 | 950 | 2400*1500*1650 |
| TY1X20III | 800 | 22.5 | 1150 | 2500*1500*1700 |
| TY1X30 | 1300 | 40 | 2064 | 3700*1950*2150 |
| TY1X40 | 1300 | 40 | 3430 | 4000*2000*2300 |
| TY140IV | 1500 | 40 | 10000 | 5500*2280*2700 |
| TY2X35 | 1300 | 40 | 4500 | 4300*2250*2700 |
| TY2X40 | 1300/1500 | 40 | 6230 | 4300*2250*2700 |
| TY2X70 | 1700 | 40 | 7500 | 4700*2300*2700 |
| TY2x70IV | 1500 | 40 | 10000 | 5500*2280*2700 |
| TY2X90 | 1900 | 50 | 7500 | 5400*2300*2700 |
| Model | Bull-wheel diameter | Max conductor diameter | Max optical fiber cable diameter | Groove width | Groove number | Total weight | Overall damension |
| mm | mm | mm | mm | kg | mm | ||
| TY1X7.5 | 1100 | 24 | 21 | 220 | 1 | 850 | 2300*1250*1620 |
| TY1X20 | 1300 | 40 | 21 | 55 | 5 | 1920 | 4080*1930*2300 |
| TY1X20II | 800 | 23 | 45 | 5 | 950 | 2400*1500*1650 | |
| TY1X20III | 800 | 22.5 | 55 | 5 | 1150 | 2500*1500*1700 | |
| TY1X30 | 1300 | 40 | 21 | 60 | 5 | 2064 | 3700*1950*2150 |
| TY1X40 | 1300 | 40 | 21 | 55 | 5 | 3430 | 4000*2000*2300 |
| TY1X50 | 1300/1500 | 55 | 21 | 68 | 6 | 2400 | 4000*1900*2300 |
| TY140IV | 1500 | 40 | 16 | 10000 | 5500*2280*2700 | ||
| TY2X35 | 1300 | 40 | 2x5 | 4500 | 4300*2250*2700 | ||
| TY2X40 | 1300/1500 | 40 | 2x5 | 6230 | 4300*2250*2700 | ||
| TY2X50 | 1300/1500 | 40 | 2x5 | 6000 | 4700*2300*2700 | ||
| TY2X70 | 1700 | 40 | 2x6 | 7500 | 4700*2300*2700 | ||
| TY2x70IV | 1500 | 40 | 2x8 | 10000 | 5500*2280*2700 | ||
| TY2X90 | 1900 | 50 | 2x6 | 7500 | 5400*2300*2700 | ||
| TY4x50 | 1500 | 40 | 4x5 | 13000 | 5900*2300*2700 |
