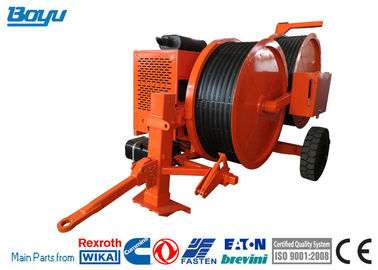

Bull - Wheel Hydraulic Puller Tensioner Diameter 1500mm Cable Stringing Equipment

Large Image : Bull - Wheel Hydraulic Puller Tensioner Diameter 1500mm Cable Stringing Equipment

Product Details:

Place of Origin:	China
Brand Name:	BOYU
Certification:	ISO9001
Model Number:	TY1X60

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Container
Delivery Time:	25-35 days
Payment Terms:	L/C, T/T
Supply Ability:	100sets/month.

Contact Now

Detailed Product Description

Bull-wheel Diameter:	1500mm	Max Conductor Diameter:	40mm
Groove Width:	65mm	Groove Number:	6
Speed At Max Pull:	2.5km/h	Diesel:	77kw(103hp)
Engine:	Cummins	Electrical System:	24V
Highlight:	cable stringing equipment , power line stringing equipment

Overhead Line Stringing Equipment Cummins Engine Hydraulic Tensioner

The single beam trailer chassis is adopted, and the lifting points are set up in advance for anchoring and temporary anchoring, which is light, compact, complete, convenient for loading and unloading, transportation and transshipment.
Using hydraulic control tension, equipped with hydraulic crushing, high-performance radiator, hydraulic power device, precision filter device and other high-quality parts, to support safe, high-quality, efficient performance.
Hydraulic power units provide lead traction in both positive and negative directions.

Max intermittent pull	70kN
Max continuous pull	60kN
Speed at max pull	2.5km/h
Max speed	5km/h
Pull at max speed	35kN
Max reverse pulling force	50kN
Max reverse pulling speed	5km/h
Bull-wheel diameter	1500mm
Max conductor diameter	40mm
Groove width	65mm
Groove number	6
Total weight	4800kg
Overall dimension (lengthwidthheight)	4300×2050×2600mm
Engine	Cummins
Hydraulic pump	German Rexroth/Dnish Danfoss
Main motor	German Rexroth/French Leduc
Speed reducer	German Rexroth
Hydraulic meter	German
Operating handle	German Rexroth
Diesel	77kw(103hp)
Cooling system	water
Electrical system	24V

Bull - Wheel Hydraulic Puller Tensioner Diameter 1500mm Cable Stringing Equipment 0
