| Highlight: | powerline tools,transmission tools |
||
|---|---|---|---|

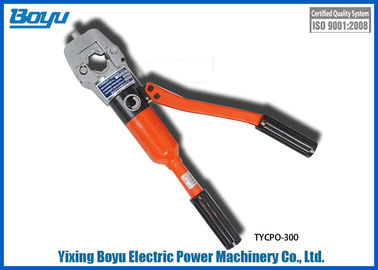

Hydraulic Crimping Tool Transmission Line Tools Accessories 130kn
Quick details:
1. Transmission Line Stringing Equipment Accessories & Tools
2. Hydraulic Crimping Tool
3. Max pressure: 130kn
4. Plastic case package for easy carrying can well tool protection
5. Application: Crimp Cu/AL Cable connectors (Lugs Splices etc.)
6. Double speed unit for quick oil delivery and ram advancement
7. Boyu Brand
Description:
CPO is a self-contained hand-operated hydraulic crimping tools. Capable of crimping Cu/Al cable connectors for cable connection can be widely used in power transmission and distribution project.
CPO-400 is designed with Bolt-Lock 180 degree rotatable head, some sets hexagon crimping dies,
double speed unit and safety valves.
Specification:
| Model | Max pressure | Stroke | Copper die | Aluminum die | Weight | Hexagon die |
| CPO-300 | 120kn | 19mm | 16-300mm^2 | 16-240mm^2 | 4.3kg | 16 / 25 / 35 / 50 / 70 / 95 / 120 / 150 / 185 / 240 / 300 |
| CPO-400 | 130kn | 22mm | 50-400mm^2 | 50-300mm^2 | 6.6kg | 50 / 70 / 95 / 120 / 150 / 185 / 240 / 300 / 400 |
More pictures:
We produce 40~60sets of stringing equipment each month and all kinds of accessories.
