120x30 Single Nylon Wheel Diameter 120mm Width 30mm Stringing Blocks Small Pulleys

Name: 120x30 Single Nylon Wheel Diameter 120mm Width 30mm Stringing Blocks Small Pulleys
Brand: Boyu
SKU: SHDN-120x30
Rating: 4.7 (139 reviews)

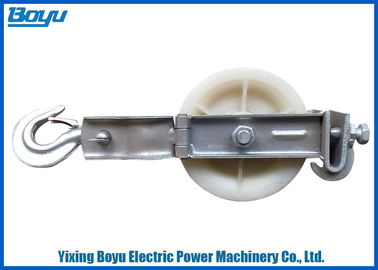

Large Image : 120x30 Single Nylon Wheel Diameter 120mm Width 30mm Stringing Blocks Small Pulleys

Product Details:

Place of Origin:	China
Brand Name:	Boyu
Certification:	ISO9001
Model Number:	SHDN-120x30

Payment & Shipping Terms:

Minimum Order Quantity:	10set
Price:	Negotiable
Packaging Details:	Container
Delivery Time:	25-35 days
Payment Terms:	TT/LC
Supply Ability:	100sets/month.
Price terms.:	FOB(Shanghai) or CIF (assigned port)

Contact Now

Detailed Product Description

Highlight:

wire rope pulley block

winch pulley block

120x30 Single Nylon Wheel Diameter 120mm Width 30mm Stringing Blocks Small Pulleys

Quick details:
1. Transmission Line Stringing Accessories
2. Conductor/Cable/OPGW Stringing Blocks Small Pulleys
3. Diameter: 120mm Wheel Width: 30mm
4. Single Wheels Nylon Wheels
5. Galvanized Steel Frame
6. With Rubber Covered or Without Rubber Covered
7. Rated Load: 5kN
8. Conductor Size: 25~70mm2

9.Boyu Brand

Specification:

Single Wheel-Wheel material aluminum or Nylon, and it could be covered by rubber.

Model	Wheel size Diameter x Width (mm)	Conductor size (mm2)	Rated load (kN)	Weight (kg)	Wheel material
SHD-120X30	120x30	25~70	5	2.1	Aluminum
SHD-160X40	160X40	95~120	10	3.1
SHD-200X40	200X40	150~240	15	3.7
SHD-200X60	200X60	150~240	15	4.1
SHD-250X40	250X40	150~240	20	5.1
SHD-250X60	250X60	300~400	20	5.4
SHD-270X60	270X60	300~400	20	6.7
SHD-320X60	320X60	300~400	20	10.4
SHD-400X80	400X80	400~500	20	11.9
SHDN-120X30	120x30	25~70	5	1.5	Nylon
SHDN-160X40	160X40	95~120	10	2.3
SHDN-200X40	200X40	150~240	15	2.5
SHDN-200X60	200X60	150~240	15	3.0
SHDN-250X40	250X40	150~240	20	3.6
SHDN-250X60	250X60	300~400	20	3.8
SHDN-270X60	270X60	300~400	20	4.3
SHDN-320X60	320X60	300~400	20	7.5
SHDN-400X80	400X80	400~500	20	8
SHD-508X75	508X75	≤400	20	22.3	Aluminum
SHD-660X100	660X100	≤500	20	30	Aluminum
SHDN-508X75	508X75	≤400	20	18	Nylon
SHDN-660X100	660X100	≤500	20	20
SHDN-830X110	830X110	≤630	30	25
SHDN-916X110	916X110	≤800	50	45
SHDN-1040X125	1040X125	≤1000	55	105

Three Wheels-The pulleys are suitable for string two or three bundled conductor lines.

Model	Wheel size Diameter x Width (mm)	Conductor size (mm2)	Rated load (kN)	Weight (kg)	Wheel material
SHS-508X75	3X508X75	≤400	40	85.5	Middle steel Two Nylon
SHS-660X100	3X660X100	≤500	20	106	Middle steel Two Nylon
SHSN-508X75	3X508X75	≤400	40	60	Nylon
SHSN-660X100	3X660X100	≤500	40	85
SHSN-830X110	3X830X110	≤630	60	100
SHSN-916X110	3X916X110	≤800	80	140
SHSN-1040X125	3X1040X125	≤1000	110	210

Five Wheels-The pulleys are suitable for string four bundled conductor lines.

Model	Wheel size Diameter x Width (mm)	Conductor size (mm2)	Rated load (kN)	Weight (kg)	Wheel material
SHW-508X75	3X508X75	≤400	40	85.5	Middle steel Two Nylon
SHW-660X100	3X660X100	≤500	40	106	Middle steel Two Nylon
SHWN-508X75	5X508X75	≤400	40	60	Nylon
SHWN-660X100	5X660X100	≤500	40	85
SHWN-830X110	5X830X110	≤630	60	100
SHWN-916X110	5X916X110	≤800	80	140
SHWN-1040X125	5X1040X125	≤1000	110	210

Maufacturer Introduction

Established in 1994, Yixing Boyu Electric Power Machinery Co., Ltd. is a manufacturer specialized in the research, development and production of Electric Power Machinery.
We are located in beautiful and rich city: Yixing city. We are a High-tech enterprise in Jiangsu Province, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
　　1. Main configurations of our machine are from Germany and USA
　　Engine: American Cummins
　　Main pump: German Rexroth
　　Main motor& speed reducer: German Rexroth
　　Tail bracket hoisting motor: American Eton
　　Hydraulic meter: German
　　2. Our company was founded in 1994, having 27 years rich experience in this field. Our product sells in distant markets: Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Germany etc. Our product is also very popular in china.
　　3. We have one year quality guarantee, if internal components go wrong within one year, we will change another for free.
　　4. We can supply the specific components to the buyers with cost price after warranty period.

Jiangsu Province Yixing Boyu Electric Power Machinery Company is located in west side of the beautiful and fertile Taihu Lake.
We are near Shanghai, Nanjing & Hongzhou city about 2~3 hours by car.

Our company is high-tech enterprise of Jiangsu province having six patents, including two invention patents. Our company has a total area of 42800 square meters, having formed four series products:
