Highlight: | winch pulley block,conductor stringing block |
---|

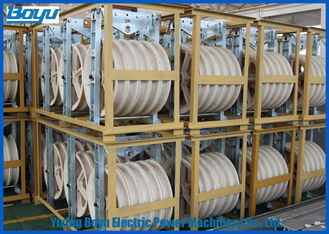

5x830x110 Five Wheels Diameter 830mm Width 110mm Stringing Blocks Pulley Conductor Section Area 630mm2
Quick details:
1. Transmission Line Stringing Accessories
2. Conductor/Cable/OPGW Bundled Conductor Pulley
3. Diameter: 830mm
4. Wheel Width: 110mm
5. Five Wheels
6. Nylon Wheels
7. Galvanized Steel Frame
8. With Rubber Covered or Without
9. Rated Load: 60kN
10. Conductor Size: under 630mm2
11.Boyu Brand
Specification:
Single Wheel-Wheel material aluminum or Nylon, and it could be covered by rubber.
Model |
Wheel size Diameter x Width (mm) |
Conductor size (mm2) |
Rated load (kN) |
Weight (kg) |
Wheel material |
SHD-120X30 |
120x30 |
25~70 |
5 |
2.1 |
Aluminum |
SHD-160X40 |
160X40 |
95~120 |
10 |
3.1 |
|
SHD-200X40 |
200X40 |
150~240 |
15 |
3.7 |
|
SHD-200X60 |
200X60 |
150~240 |
15 |
4.1 |
|
SHD-250X40 |
250X40 |
150~240 |
20 |
5.1 |
|
SHD-250X60 |
250X60 |
300~400 |
20 |
5.4 |
|
SHD-270X60 |
270X60 |
300~400 |
20 |
6.7 |
|
SHD-320X60 |
320X60 |
300~400 |
20 |
10.4 |
|
SHD-400X80 |
400X80 |
400~500 |
20 |
11.9 |
|
SHDN-120X30 |
120x30 |
25~70 |
5 |
1.5 |
Nylon |
SHDN-160X40 |
160X40 |
95~120 |
10 |
2.3 |
|
SHDN-200X40 |
200X40 |
150~240 |
15 |
2.5 |
|
SHDN-200X60 |
200X60 |
150~240 |
15 |
3.0 |
|
SHDN-250X40 |
250X40 |
150~240 |
20 |
3.6 |
|
SHDN-250X60 |
250X60 |
300~400 |
20 |
3.8 |
|
SHDN-270X60 |
270X60 |
300~400 |
20 |
4.3 |
|
SHDN-320X60 |
320X60 |
300~400 |
20 |
7.5 |
|
SHDN-400X80 |
400X80 |
400~500 |
20 |
8 |
|
SHD-508X75 |
508X75 |
≤400 |
20 |
22.3 |
Aluminum |
SHD-660X100 |
660X100 |
≤500 |
20 |
30 |
|
SHDN-508X75 |
508X75 |
≤400 |
20 |
18 |
Nylon |
SHDN-660X100 |
660X100 |
≤500 |
20 |
20 |
|
SHDN-830X110 |
830X110 |
≤630 |
30 |
25 |
|
SHDN-916X110 |
916X110 |
≤800 |
50 |
45 |
|
SHDN-1040X125 |
1040X125 |
≤1000 |
55 |
105 |
Three Wheels-The pulleys are suitable for string two or three bundled conductor lines.
Model |
Wheel size Diameter x Width (mm) |
Conductor size (mm2) |
Rated load (kN) |
Weight (kg) |
Wheel material |
SHS-508X75 |
3X508X75 |
≤400 |
40 |
85.5 |
Middle steel Two Nylon |
SHS-660X100 |
3X660X100 |
≤500 |
20 |
106 |
|
SHSN-508X75 |
3X508X75 |
≤400 |
40 |
60 |
Nylon |
SHSN-660X100 |
3X660X100 |
≤500 |
40 |
85 |
|
SHSN-830X110 |
3X830X110 |
≤630 |
60 |
100 |
|
SHSN-916X110 |
3X916X110 |
≤800 |
80 |
140 |
|
SHSN-1040X125 |
3X1040X125 |
≤1000 |
110 |
210 |
Five Wheels-The pulleys are suitable for string four bundled conductor lines.
Model |
Wheel size Diameter x Width (mm) |
Conductor size (mm2) |
Rated load (kN) |
Weight (kg) |
Wheel material |
SHW-508X75 |
3X508X75 |
≤400 |
40 |
85.5 |
Middle steel Two Nylon |
SHW-660X100 |
3X660X100 |
≤500 |
40 |
106 |
|
SHWN-508X75 |
5X508X75 |
≤400 |
40 |
60 |
Nylon |
SHWN-660X100 |
5X660X100 |
≤500 |
40 |
85 |
|
SHWN-830X110 |
5X830X110 |
≤630 |
60 |
100 |
|
SHWN-916X110 |
5X916X110 |
≤800 |
80 |
140 |
|
SHWN-1040X125 |
5X1040X125 |
≤1000 |
110 |
210 |
Maufacturer Introduction
Yixing Boyu Electric Power Machinery Company is located in west side of the beautiful and fertile Taihu Lake.
Jiangsu Provice, China, near Shanghai, Nanjing & Hongzhou city etc.
Our company is high-tech enterprise of Jiangsu province having six patents, including two invention patents. Our company has a total area of 42800 square meters, having formed four series products:
History
Established in 1994, Yixing city Boyu power machinery Co., LTD
In 2001 the company passed ISO9001 certification, and obtain the AAA certificate
In 2006 attains the Wuxi city contract trustworthiness enterprise, also achieved famous brand product in Wuxi city
In 2007 attains the high-tech enterprise of Jiangsu province, also achieved brand-name products in Jiangsu province
In 2009 reworded significant achievement in Wuxi city
In 2010 Boyu cooperated with Germany famous Caesar Company establishing the Boset brand
In 2010 achieved the national ministry of science and technology innovation in science and technology project.
To November, 2013, Boyu enterprise has already sell puller and tension equipment (excluding mobile ground grinding) nearly 5000 sets. Our products are sold well in Australia, Egypt, England, Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Algeria, Turkey, Peru, Colombia, Brazil, Argentina etc.
