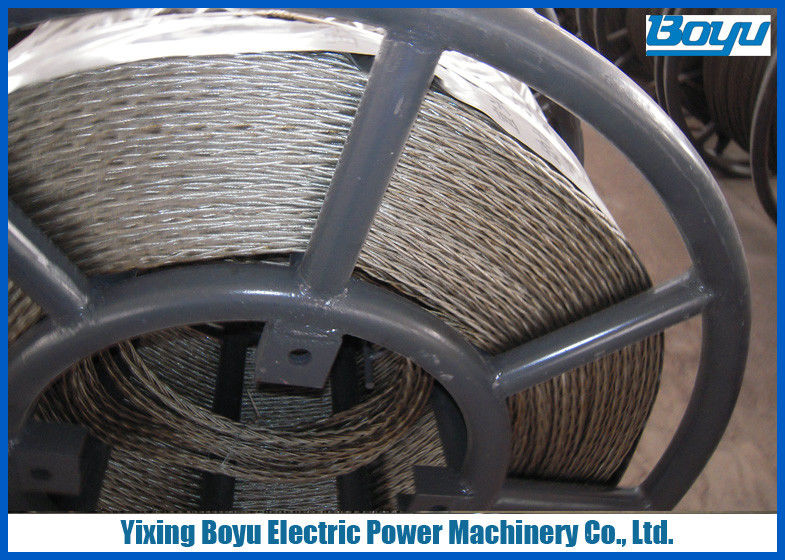

Customized Galvanized Steel Pilot Rope 1000m Length With Good Flexibility

China Yixing Boyu Electric Power Machinery Co.,LTD certification
China Yixing Boyu Electric Power Machinery Co.,LTD certification
We have some compliments for your products: The goods is eye-catching Label is very clear Your production is fast and on schedule You are enthus

—— Ms. Yen Purchasing Executive

I would like to tell you that I have already begun to distribute the catalog on the Egyptian companies to transfer electricity and all the companies

—— Mr. Mostafa Abolila

We have bought from you in the past and we are very satisfied with your quality and service. Now we need to order some more goods with you.

—— Mr. Pham Van Ha –Director

I'm Online Chat Now

Customized Galvanized Steel Pilot Rope 1000m Length With Good Flexibility

Customized Galvanized Steel Pilot Rope 1000m Length With Good Flexibility
Customized Galvanized Steel Pilot Rope 1000m Length With Good Flexibility

Large Image :  Customized Galvanized Steel Pilot Rope 1000m Length With Good Flexibility

Product Details:
Place of Origin: China
Brand Name: Boyu
Certification: ISO9001
Model Number: YL22-12x29Fi
Payment & Shipping Terms:
Minimum Order Quantity: 1000m
Price: Negotiable
Packaging Details: Steel Reel
Delivery Time: 15~25 days
Payment Terms: TT/LC
Supply Ability: 300000m/month.
Price terms.: FOB(Shanghai) or CIF (assigned port)
Detailed Product Description
High Light:

anti twisting steel wire rope

,

pilot rope

22mm Anti-twisting Rope Structure Structure 29Fi Steel Pilot Wire Rope High Voltage Line Stringing



Quick details:

  • Breakage load: 320kN
  • Size available: 9~30mm
  • 6 Squares 12 Strands
  • Length: 1000m  Reel diameter: 1400mm
  • Transmission Line Stringing Accessories
  • Anti-twisting Steel Pilot Wire Rope
  • Normal Diameter: 22mm
  • Boyu Brand

Description
Anti-twisting braided pilot wire rope with high strength hot dip galvanized steel quality air processed by the special process of special woven rope line. It has high strength, good flexibility, corrosion rust-proof, not to fight the golden hook, and difficult to tie, long life and so on. Tension applied to pay-off power lines construction, lifting equipment with the balance shaft and the tail rope of mine, port and other major lift crane wire rope does not rotate when the required place.

Item no.

Normal Diameter (mm)

Structure

Breakage tension(kN)

Standard Length (m)

Diameter of spool

(mm)

Total weight

(kgs)

YL9-12x19W

9

12 Strands

55

1000

850

294

YL10-12x19W

10

12 Strands

55

1000

850



YL11-12x19W

11

12 Strands

80

1000

1000

454

YL13-12x19W

13

12 Strands

120

1000

1100

642

YL16-12x19W

16

12 Strands

158

1000

1250

886

YL18-12x19W

18

12 Strands

210

1000

1400

1154

YL20-12x29Fi

20

12 Strands

250

1000

1400

1394

YL22-12X29Fi

22

12 Strands

320

1000

1400

1258

YL24-12x29Fi

24

12 Strands

360

800

1440

1474

YL28-12x29Fi

28

12 Strands

480

500

1600



YL30-12x29Fi

30

12 Strands

540

500

1600



YL20-18x19W

20

18 Strands

300

1000

1440

1368

YL22-18X29Fi

22

18 Strands

389

800

1440



YL24-18x29Fi

24

18 Strands

440

800

1440



YL28-18x29Fi

28

18 Strands

580

500

1600

1655

YL30-18x29Fi

30

18 Strands

658

500

1600

1900

Structure: 22mm 320kN Anti twisted Steel Pilot Wire Rope Line Stringing 6 Squares 12 Strands

Customized Galvanized Steel Pilot Rope 1000m Length With Good Flexibility 0Maufacturer Introduction
Established in 1994, Yixing Boyu Electric Power Machinery Co., Ltd. is a manufacturer specialized in the research, development and production of Electric Power Machinery.
We are located in beautiful and rich city: Yixing city. We are a High-tech enterprise in Jiangsu Province, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
  1. Main configurations of our machine are from Germany and USA
  Engine: American Cummins
  Main pump: German Rexroth
  Main motor& speed reducer: German Rexroth
  Tail bracket hoisting motor: American Eton
  Hydraulic meter: German
  2. Our company was founded in 1994, having 27 years rich experience in this field. Our product sells in distant markets: Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Germany etc. Our product is also very popular in china.
  3. We have one year quality guarantee, if internal components go wrong within one year, we will change another for free.
  4. We can supply the specific components to the buyers with cost price after warranty period.

Our company has a total area of 42800 square meters, having formed four series products:

  • Line Stringing Equipment and accessories and tools.
  • Nonmetallic galvanized the production equipment (Achieved high-tech products)
  • Numerical control machine
  • Low voltage no power-arc furnace compensation system

22mm Anti-twisting Rope Structure Structure 29Fi Steel Pilot Wire Rope High Voltage Line Stringing
