Product Details:
Payment & Shipping Terms:
|
| Name: | Anti Twisting Steel Braided Rope | Nominal Diameter: | 18mm |
|---|---|---|---|
| Structure: | 12Strands | Breakage Tension: | 200kN |
| Standard Length: | 1000m | Diameter Of Reel: | 1400mm |
| High Light: | galvanized steel wire rope,braided steel rope |
||

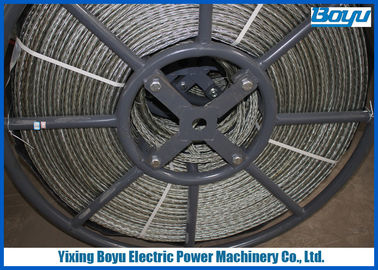

18mm Anti-twisting Braided Steel Wire Rope Conductor Stringing Rope 12 Strands 6 Squares
Quick details:
Description
Anti-twisting braided wire rope with high strength hot dip galvanized steel quality air processed by the special process of special woven rope line. It has high strength, good flexibility, corrosion rust-proof, not to fight the golden hook, and difficult to tie, long life and so on. Tension applied to pay-off power lines construction, lifting equipment with the balance shaft and the tail rope of mine, port and other major lift crane wire rope does not rotate when the required place.
|
Item no. |
Normal Diameter (mm) |
Structure |
Breakage tension(kN) |
Standard Length (m) |
Diameter of spool (mm) |
Total weight (kgs) |
|
YL9-12x19W |
9 |
12 Strands |
55 |
1000 |
850 |
294 |
|
YL10-12x19W |
10 |
12 Strands |
55 |
1000 |
850 |
|
|
YL11-12x19W |
11 |
12 Strands |
80 |
1000 |
1000 |
454 |
|
YL13-12x19W |
13 |
12 Strands |
120 |
1000 |
1100 |
642 |
|
YL16-12x19W |
16 |
12 Strands |
158 |
1000 |
1250 |
886 |
|
YL18-12x19W |
18 |
12 Strands |
210 |
1000 |
1400 |
1154 |
|
YL20-12x29Fi |
20 |
12 Strands |
250 |
1000 |
1400 |
1394 |
|
YL22-12X29Fi |
22 |
12 Strands |
320 |
1000 |
1400 |
1258 |
|
YL24-12x29Fi |
24 |
12 Strands |
360 |
800 |
1440 |
1474 |
|
YL28-12x29Fi |
28 |
12 Strands |
480 |
500 |
1600 |
|
|
YL30-12x29Fi |
30 |
12 Strands |
540 |
500 |
1600 |
|
|
YL20-18x19W |
20 |
18 Strands |
300 |
1000 |
1440 |
1368 |
|
YL22-18X29Fi |
22 |
18 Strands |
389 |
800 |
1440 |
|
|
YL24-18x29Fi |
24 |
18 Strands |
440 |
800 |
1440 |
|
|
YL28-18x29Fi |
28 |
18 Strands |
580 |
500 |
1600 |
1655 |
|
YL30-18x29Fi |
30 |
18 Strands |
658 |
500 |
1600 |
1900 |
Structure: 18mm Anti-twisting Braided Steel Wire Rope Conductor Stringing Rope 12 Strands 6 Squares
Maufacturer Introduction
Jiangsu Province Yixing Boyu Electric Power Machinery Company is located in west side of the beautiful and fertile Taihu Lake.
Our company is high-tech enterprise of Jiangsu province having six patents, including two invention patents.
1. Main configurations of our machine are from Germany and USA
Engine: American Cummins
Main pump: German Rexroth
Main motor& speed reducer: German Rexroth
Tail bracket hoisting motor: American Eton
Hydraulic meter: German
2. Our company was founded in 1994, having 27 years rich experience in this field. Our product sells in distant markets: Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Germany etc. Our product is also very popular in china.
3. We have one year quality guarantee, if internal components go wrong within one year, we will change another for free.
4. We can supply the specific components to the buyers with cost price after warranty period.
Our company has a total area of 42800 square meters, having formed four series products:
18mm Anti-twisting Braided Steel Wire Rope Conductor Stringing Rope 12 Strands 6 Squares
