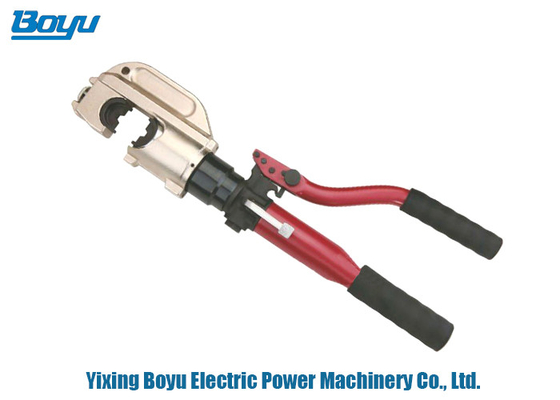

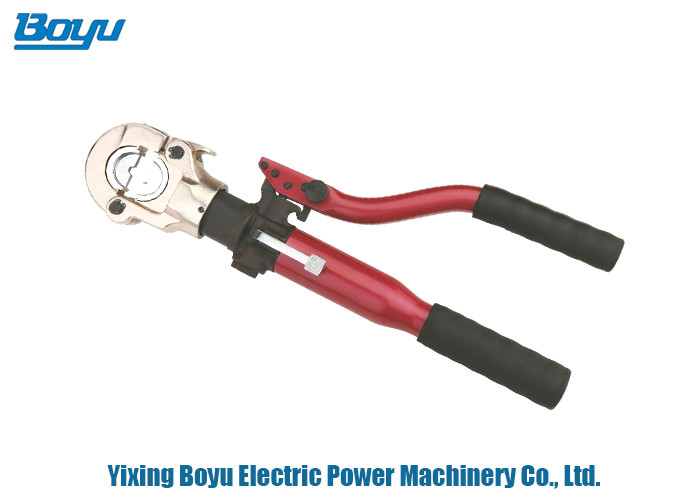

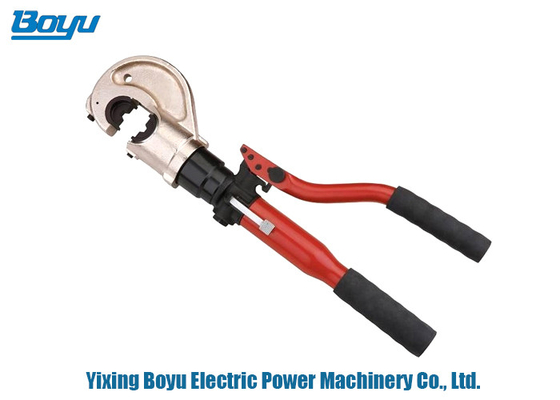

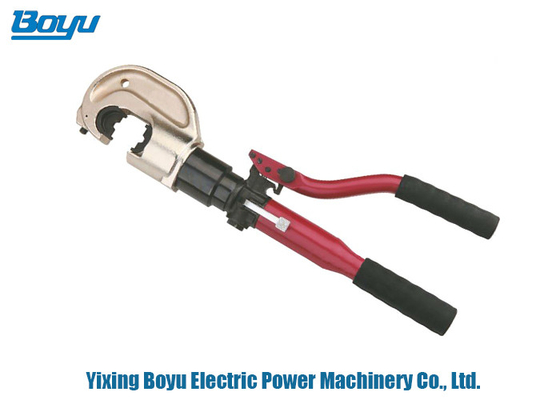

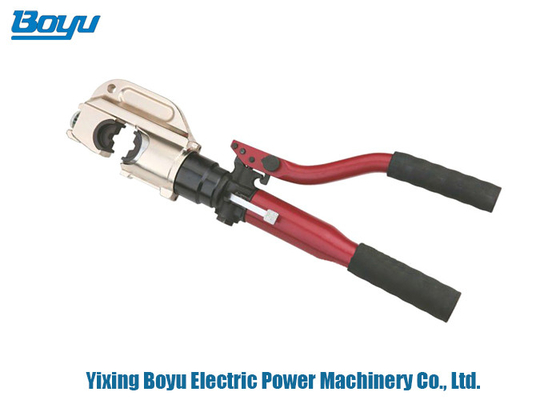

Hydraulic Transmission Line Tool Crimping Cutting Punching Operated

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Hydraulic Transmission Line Tool Crimping Cutting Punching Operated

Product Details:
Place of Origin: China
Brand Name: Boyu
Certification: ISO9001
Model Number: TYHT-300
Payment & Shipping Terms:
Minimum Order Quantity: 20 pieces
Price: Negotiable
Packaging Details: Container
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 5000sets/month.
Detailed Product Description
Type: Hydraulic Crimping Cutting Punching Operated Tool Crimping Range: 16-300mm2
Crimping Force: 60KN Crimping Type: Hexagon
Weight: 3.3kg Stroke: 17mm
High Light:

hydraulic transmission line tool

,

crimping cutting punching transmission line tool

,

60kn transmission line tool

Transmission Line Tool Hydraulic Crimping Cutting Punching Operated Tool



Quick Details

  • Head Design: Crimping head, Rotates 180°, flip top style
  • Hand-load Button: Manual retract in case of need
  • Handle: High tensile aluminum alloy handiness
  • Handle grip: Prevent-slip handle

Technical Data

Model TYHT-300 TYHT-12030 TYHT-12032 TYHT-12038 TYHT-13042
Crimping range 16-300mm2 16-300mm2 16-400mm2 16-400mm2 16-400mm2
Crimping force 60KN 120KN 120KN 120KN 130KN
Crimping type Hexagon Hexagon Hexagon Hexagon Hexagon
Stroke 17mm 32mm 32mm 38mm 42mm
Length 460mm 545mm 552mm 560mm 560mm
Weight 3.3kg 6.5kg 6.5kg 6.8kg 7.0kg
Package Aluminium alloy code case Aluminium alloy code case Aluminium alloy code case Aluminium alloy code case Aluminium alloy code case
Standard accessories 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300mm2 35, 50, 70, 95, 120, 150, 185, 240, 300mm2 50, 70, 95, 120, 150, 185, 240, 300, 400mm2 50, 70, 95, 120, 150, 185, 240, 300, 400mm2 50, 70, 95, 120, 150, 185, 240, 300, 400mm2



General features:

The tool has stages speed of the ram and automatically switches from a fast advancing speed of dies to a slower crimping speed.

For ease of operation and comfort of the operator the tool head can be fully rotated through 180 degrees.

The tool is provided with max pressure valve, when the max pressure is activated and a “click” is heard to warn the operator stopping working.

With interchangeable crimping dies with multiple crimping geometry’s.



Hydraulic Transmission Line Tool Crimping Cutting Punching Operated 0
