| Type: | Hydraulic Cable Terminate Crimping Tools | Crimping Force: | 100KN |
|---|---|---|---|
| Crimping Range: | 8-150mm2 | Crimping Type: | Hexagon |
| Weight: | 4.8kg | Stroke: | 17mm |
| High Light: | 17mm stroke transmission line tool,cable terminate crimping transmission line tool,17mm stroke hydraulic lug crimping tool |
||

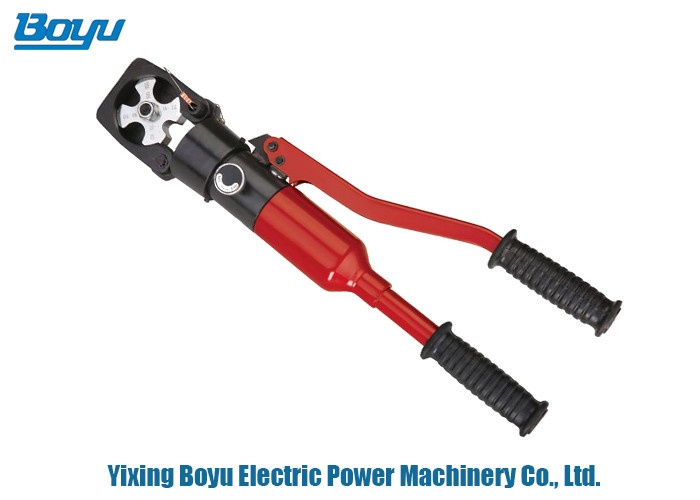

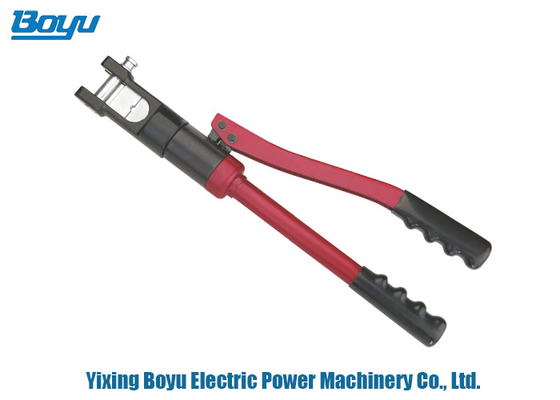

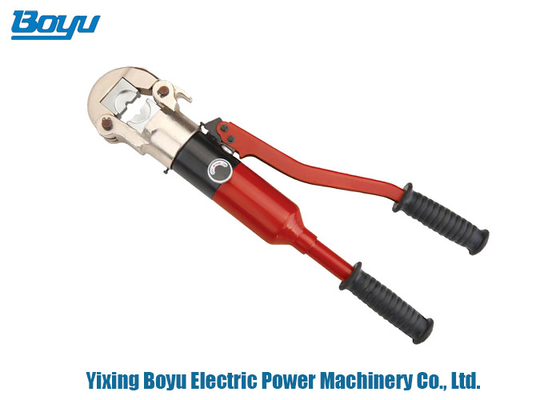

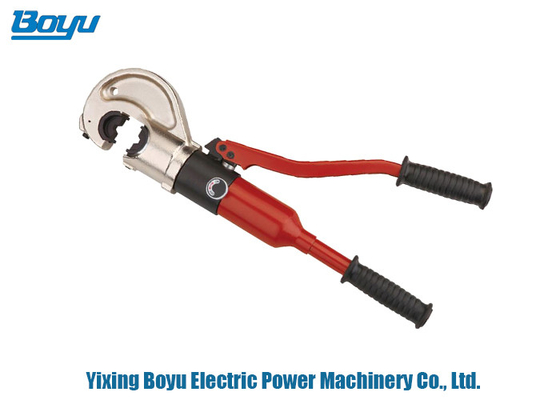

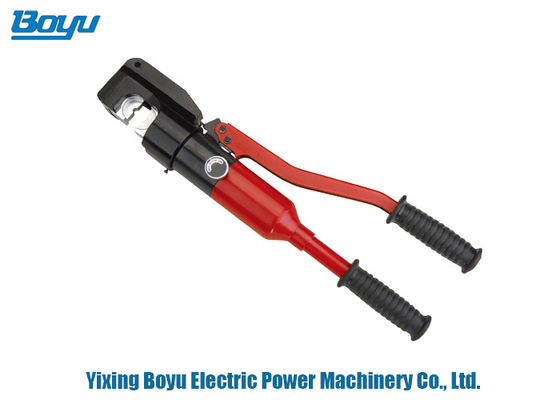

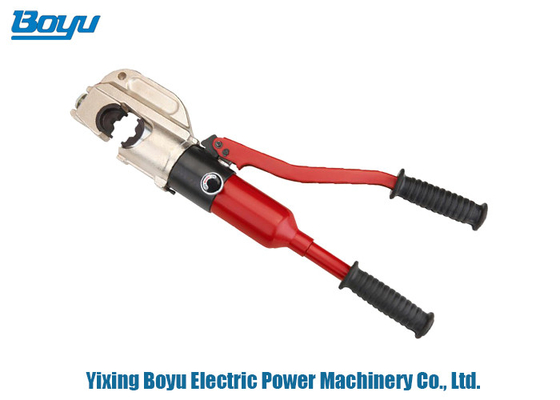

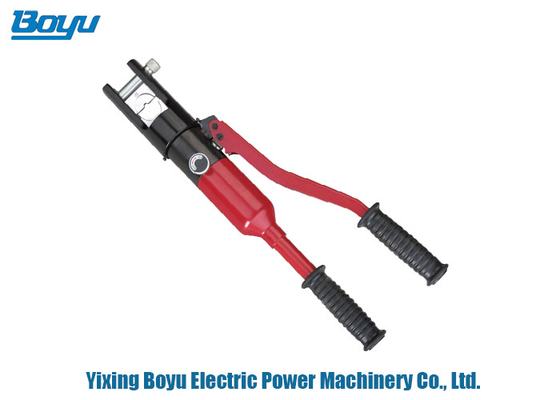

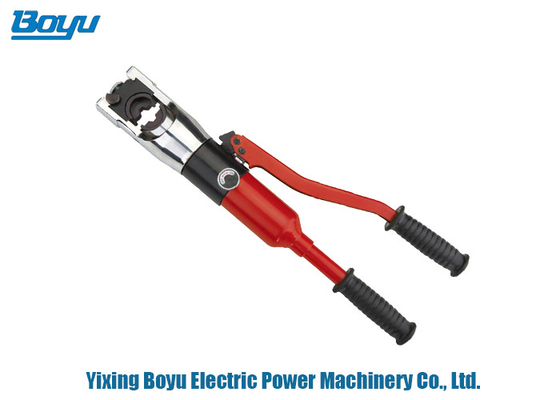

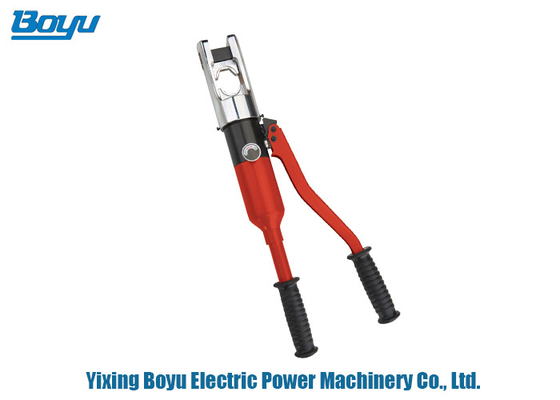

Transmission Line Tool Hydraulic Cable Terminate Crimping Tools
Hydraulic crimping tool is a professional tool for crimping copper and aluminum lugs, with different types. The main crimping shape is hexagon. Special shapes design is provided.
General Features:
For interchangeable dies, Crimping head, rotates 180°
Two stages hydraulics
With safety valve inside
Manual retract in case of need
Safety Valve Inside
| Model | TYZCO-300 | TYZCO-400 | TYZYO-400 | TYCYO-300C | TYFKO-240A | TYCPO-150S | TYYQH-240 | TYZHO-240 | TYZHO-300 |
| Crimping range |
16-300 mm2 |
16-400 mm2 |
16-400 mm2 |
16-300 mm2 |
16-240 mm2 |
8-150 mm2 |
16-240 mm2 |
16-240 mm2 |
16-300 mm2 |
| Crimping force | 100KN | 120KN | 120KN | 120KN | 100KN | 100KN | 60KN | 100KN | 100KN |
| Crimping type | Hexagon | Hexagon | Hexagon | Hexagon | Hexagon | Hexagon | Hexagon | Hexagon | Hexagon |
| Stroke | 16mm | 32mm | 16mm | 32mm | 16mm | 17mm | 13mm | 16mm | 16mm |
| Length | 540mm | 540mm | 540mm | 540mm | 540mm | approx 540mm | 470mm | 540mm | 540mm |
| Weight | 5kg | 6.5kg | 5.5kg | 6.2kg | 4.8kg | 4.8kg | 3.0kg | 4.5kg | 4.5kg |
| Package | Plastic case | Plastic case | Plastic case | Plastic case | Plastic case | Plastic case | Plastic case | Plastic case | Plastic case |
| Standard accessories |
16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300 mm2 |
50, 70, 95, 120, 150, 185, 240, 300, 400 mm2 |
50, 70, 95, 120, 150, 185, 240, 300, 400 mm2 |
35, 50, 70, 95, 120, 150, 185, 240, 300 mm2 |
16, 25, 35, 50, 70, 95, 120, 150, 185, 240 mm2 |
Male: 8-38, 60-150mm2 Female: 14-22, 38-60, 70-80, 100-150 mm2 |
16, 25, 35, 50, 70, 95, 120, 150, 185, 240 mm2 |
16, 25, 35, 50, 70, 95, 120, 150, 185, 240 mm2 |
16, 25, 35, 50, 70, 95, 120, 150, 185, 240 mm2 |
