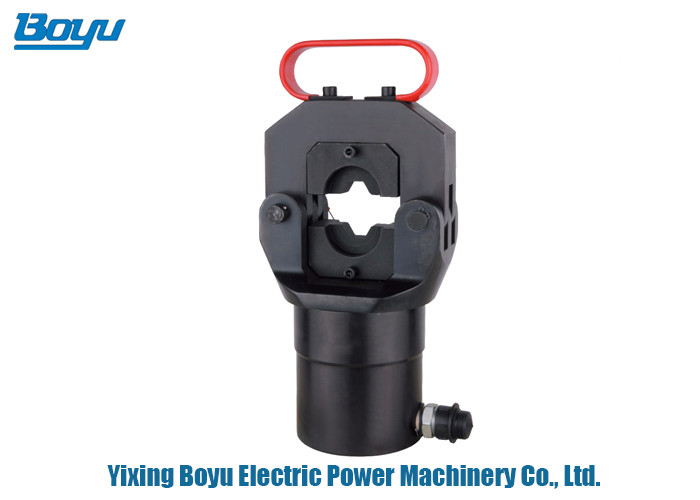

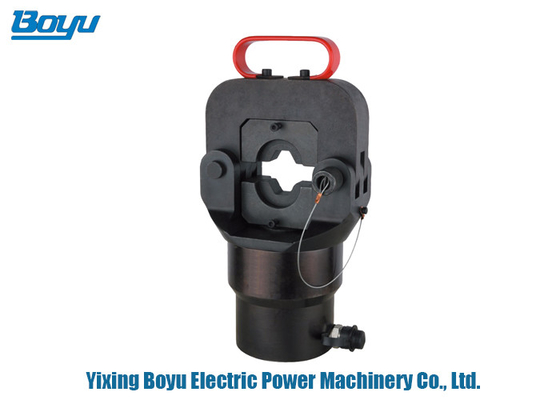

150mm Transmission Line Tool Hydraulic Crimping For Cable Lugs

Large Image : 150mm Transmission Line Tool Hydraulic Crimping For Cable Lugs

Product Details:

Place of Origin:	China
Brand Name:	Boyu
Certification:	ISO9001
Model Number:	TYCHY-130

Payment & Shipping Terms:

Minimum Order Quantity:	20 pieces
Price:	Negotiable
Packaging Details:	Container
Delivery Time:	15~25 days
Payment Terms:	L/C, T/T
Supply Ability:	5000sets/month.

Contact Now

Detailed Product Description

Type:	Hydraulic Crimping Tool For Cable Lugs	Crimping Range:	150-630mm2
Crimping Force:	350KN	Stroke:	26mm
Weight:	17.5kg	Crimping Type:	Hexagon
Highlight:	hydraulic crimping transmission line tool , transmission line tool for cable lugs , 150mm hydraulic cable lug crimping tool

Transmission Line Tool Hydraulic Crimping Tool For Cable Lugs

Model	TYCO-630A	TYCO-1000
Crimping range	150-630mm2	400-1000mm2
Crimping force	350KN	550KN
Stroke	26mm	24mm
Weight	17.5kg	32kg
Length	370mm	380mm
Package	Heavy duty carton	Heavy duty carton
Crimping type	Hexagon	Hexagon
Accessories	150, 185, 240, 300, 400, 500, 630mm2	400, 500, 630, 800, 1000mm2
Match pump	TYCP-700, TYZH-700B	TYCP-700, TYZH-700B
