Hand Operated Hydraulic 550kn Aluminium Crimping Tool For Transmission Line

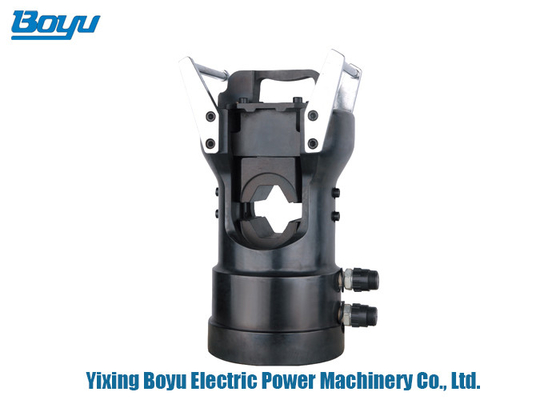

Large Image : Hand Operated Hydraulic 550kn Aluminium Crimping Tool For Transmission Line

Product Details:

Place of Origin:	China
Brand Name:	Boyu
Certification:	ISO9001
Model Number:	TYCHY-130

Payment & Shipping Terms:

Minimum Order Quantity:	20 pieces
Price:	Negotiable
Packaging Details:	Container
Delivery Time:	15~25 days
Payment Terms:	L/C, T/T
Supply Ability:	5000sets/month.

Contact Now

Detailed Product Description

Type:	Hand Operated Hydraulic Crimping Tool	Crimping Range:	12512512mm
Crimping Force:	550KN	Stroke:	15mm
Weight:	31.5kg	Crimping Type:	Embossing
Highlight:	550kn aluminium crimping tool , transmission line aluminium crimping tool , aluminum crimping tool for transmission line

Transmission Line Tool Hand Operated Hydraulic Aluminium Crimping Tool

Technical Data

Model	TYCO-100S	TYCO-200S	TYCHY-130
Crimping range	14-76mm	14-90mm	12512512mm
Crimping force	1000KN	2000KN	550KN
Stroke	24mm	35mm	15mm
Weight	40kg	97kg	31.5kg
Package	Wooden case	Wooden case	Wooden case
Crimping type	Hexagon	Hexagon	Embossing

Hand Operated Hydraulic 550kn Aluminium Crimping Tool For Transmission Line 0
