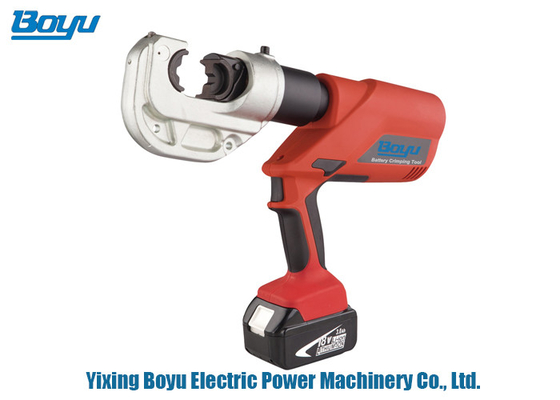

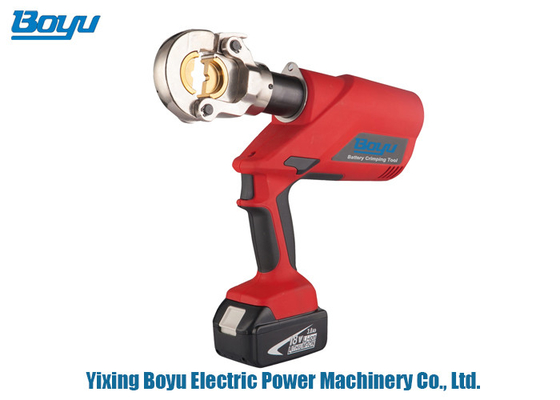

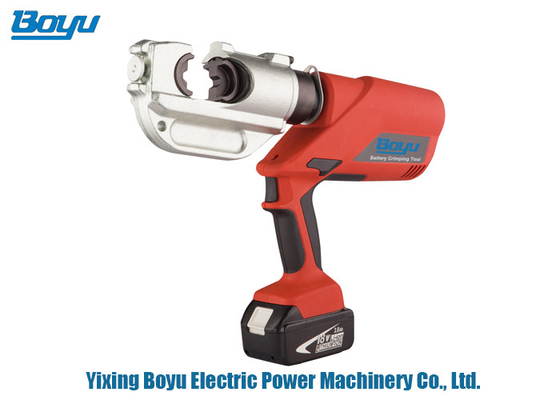

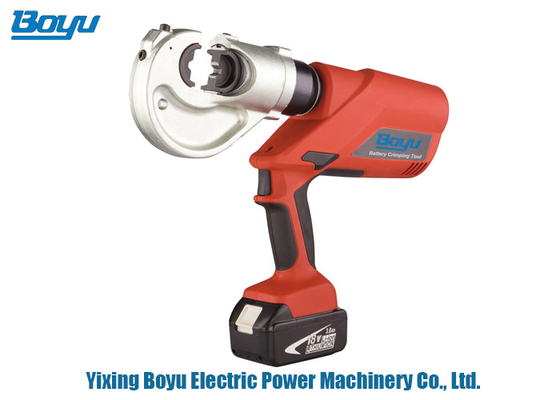

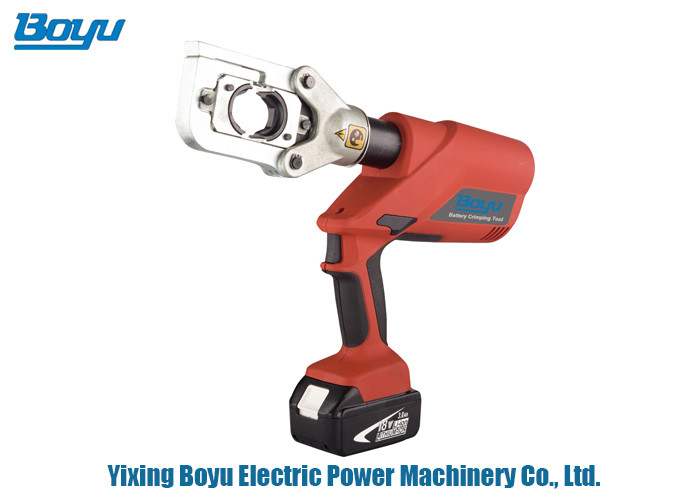

Battery Powered Wire Cable Crimping Transmission Line Tool Oil Capacity 145cc

Battery Powered Wire Cable Crimping Transmission Line Tool Oil Capacity 145cc
Battery Powered Wire Cable Crimping Transmission Line Tool Oil Capacity 145cc Battery Powered Wire Cable Crimping Transmission Line Tool Oil Capacity 145cc Battery Powered Wire Cable Crimping Transmission Line Tool Oil Capacity 145cc Battery Powered Wire Cable Crimping Transmission Line Tool Oil Capacity 145cc Battery Powered Wire Cable Crimping Transmission Line Tool Oil Capacity 145cc

Large Image :  Battery Powered Wire Cable Crimping Transmission Line Tool Oil Capacity 145cc

Product Details:
Place of Origin: China
Brand Name: Boyu
Certification: ISO9001
Model Number: TYEC-60UNV
Payment & Shipping Terms:
Minimum Order Quantity: 20 pieces
Price: Negotiable
Packaging Details: Container
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 5000sets/month.
Detailed Product Description
Crimping Force: 60KN Stroke: 42mm
Crimping Range: 16-300mm2 Cutting Range: 40mm Cu/Al Cable And Armoured Cable
Punching Range: 22.5-61.5 Crimp/charge: 160times
Voltage: 18V Type: Battery Powered Wire Cable Crimping Tools
High Light:

battery operated transmission line tool

,

145cc transmission line tool

,

145cc battery operated hydraulic crimping tool

Transmission Line Tool Battery Powered Wire Cable Crimping Tools Oil Capacity 145CC



Technical Data

Model TYEC-60UNV
Crimping force 60KN
Stroke 42mm
Crimping range 16-300mm2
Cutting range 40mm Cu/Al cable and armoured cable
Punching range 22.5-61.5
Crimp/charge 160times
Working cycle 3-16s
Voltage 18V
Capacity 3.0Ah
Charging time 45minutes
Package Plastic case
Crimping die 16.25.35.50.70.95.120.150.185.240.300mm2
Punching & Die 22.5,28.3,34.6,43.2,49.6,61.5mm
Blade 1set
Adapter for crimping 1pc
Adapter for punching 1pc
3/4" Draw stud/7/16"Draw stud 1pc
Spacer 1pc
Battery 2pcs
Charger 1pc(AC110-240V,50-60Hz)
Sealing ring of cylinder 1set
Sealing ring of safety valve 1set



Technical Data

Model TYEC-300 TYEC-300C TYEC-400 TYEC-400B
Crimping force 60KN 120KN 130KN 130KN
Crimping range 16-300mm2 16-300mm2 16-400mm2 16-400mm2
Stroke 17mm 32mm 17mm 42mm
Crimp/charge

320times

(Cu150mm2)

320times

(Cu150mm2)

320times

(Cu150mm2)

120times

(Cu150mm2)

Crimping cycle

3-6s

(depend on the size of cable)

3-6s

(depend on the size of cable)

10-16s

(depend on the size of cable)

10-20s

(depend on the size of cable)

Voltage 18V 18V 18V 18V
Capacity 3.0Ah 3.0Ah 3.0Ah 3.0Ah
Charging time 45minutes 45minutes 45minutes 45minutes
Package Plastic case Plastic case Plastic case Plastic case
Crimping die 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300mm2 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300mm2 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400mm2 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400mm2
Battery 2pcs 2pcs 2pcs 2pcs
Charger

1pc

(AC110-240V,50-60Hz)

1pc

(AC110-240V,50-60Hz)

1pc

(AC110-240V,50-60Hz)

1pc

(AC110-240V,50-60Hz)

Sealing ring of cylinder 1set 1set 1set 1set
Sealing ring of safety valve 1set 1set 1set 1set



General features:

  1. The hydraulic unit incorporates an automatic retraction which returns the piston into its starting position when the maximum operating pressure is reached.
  2. A manual retraction allows the user to return the piston into the starting position in case of an incorrect crimp. The unit is equipped with a special brake when stops the forward motion of the piston & die when the trigger is released.
  3. The unit is equipped with a double piston pump which is characterized by a rapid approach of the dies forwards the connector and a slow crimping motion.
  4. The crimping head can be smoothly turned by 360° around the longitudinal axis in order to gain better access to tight corners and other difficult working areas.
  5. Li-ion batteries do neither have a memory effect nor self discharge. Even after long periods of non operation the tool is always ready to operate. In addition we see a lower power weight ratio with 50% more capacity and shorter charging cycles compare to NiMH batteries.
  6. A Temperature sensor makes the tool stop working automatically when the temperature over 60℃ under long time working, the fault signal sounds, it means the tool can’t continue work until the temperature reduced to the normal.
