Cable Battery Hydraulic Crimping Tool Force 120kn

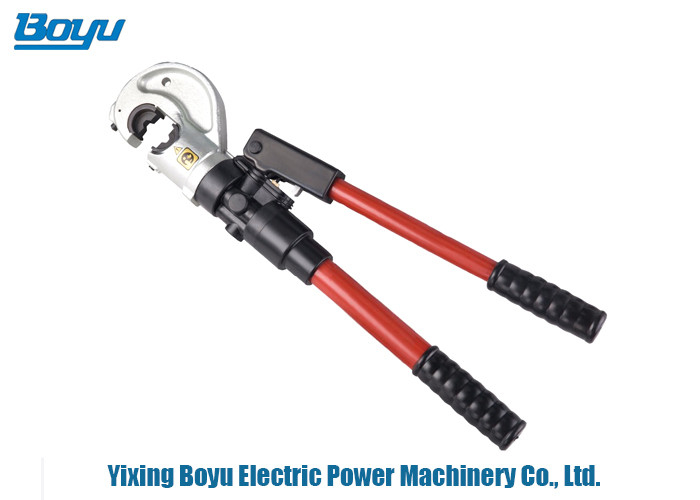

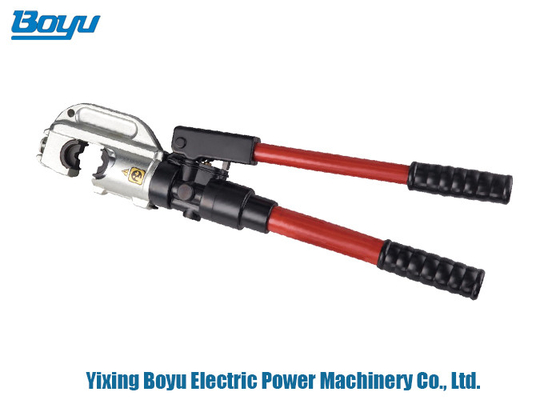

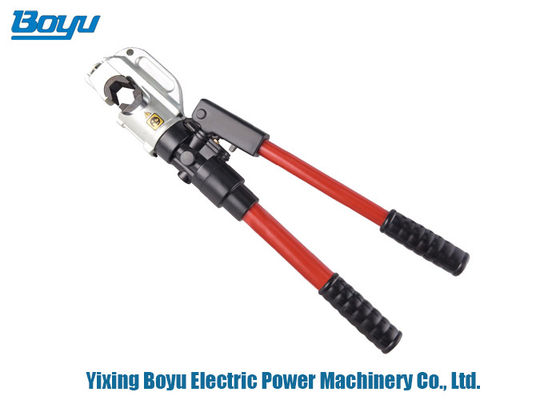

Large Image : Cable Battery Hydraulic Crimping Tool Force 120kn

Product Details:

Place of Origin:	China
Brand Name:	Boyu
Certification:	ISO9001
Model Number:	TYEP-410

Payment & Shipping Terms:

Minimum Order Quantity:	20 pieces
Price:	Negotiable
Packaging Details:	Container
Delivery Time:	15~25 days
Payment Terms:	L/C, T/T
Supply Ability:	5000sets/month.

Contact Now

Detailed Product Description

Crimping Range:	16-300mm2	Crimping Force:	120KN
Crimping Type:	Hexagon	Stroke:	32mm
Oil Capacity:	145CC	Weight:	6.4kg
Highlight:	cable battery hydraulic crimping tool , force 120kn battery hydraulic crimping tool , 120kn battery operated hydraulic crimping tool

Transmission Line Tool 12T Hydraulic Battery Powered Cable Crimping Tool

The EP Semi-automatic series hydraulic crimping tool is an efficient tool for crimping lugs, terminals, or conductors on a cable.

General features:

For interchangeable dies
Crimping head, C-type, rotates 180°
Two stages hydraulics
Semi-automatic retraction when crimping is complete
Manual retract in case of need

Safety Valve Inside

Technical Data
Model	TYEP-430	TYEP-410	TYEP-510
Crimping range	16-400mm2	16-300mm2	16-400mm2
Crimping force	120KN	120KN	130KN
Crimping type	Hexagon	Hexagon	Hexagon
Stroke	32mm	32mm	38mm
Oil capacity	145CC	145CC	145CC
Weight	6.5kg	6.4kg	6.8kg
Package	Plastic case	Plastic case	Plastic case
Standard accessories	50, 70, 95, 120, 150, 185, 240, 300, 400mm2	35, 50, 70, 95, 120, 150, 185, 240, 300mm2	50, 70, 95, 120, 150, 185, 240, 300, 400mm2
