Cutting Rang: | Cutting Off Cu/Al Cable Smaller Than 300mm2 | Weigt: | 2.0kg |
---|---|---|---|
Size: | 240*40 *50mm | Type: | Ratchet Cable Cutter |
High Light: | transmission line ratchet cable cutter,manual ratchet cable cutter,transmission line ratchet wire cutters |

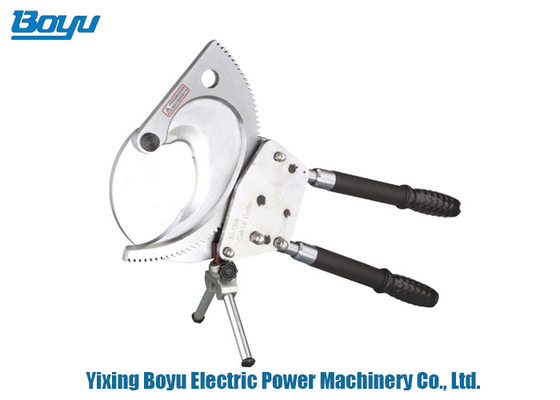

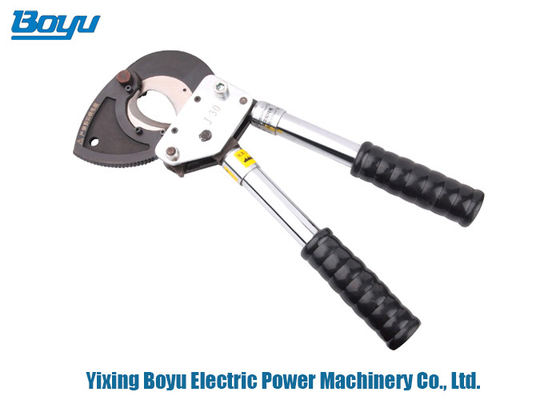

Transmission Line Tool Manual Ratchet Cable Cutter Weigth 2KG
General features
Ratchet cable cutter with handiness & save labour.
The blades are manufactured from high strength special steel, heat treated to ensure a long service life.
The blades can sharpen or replace
The handle can be extended as your requirement
Model | TYXD-40 | TYXD-520A | TYXD-J-40 | TYXD-75A | TYXD-100A | TYXD130A | TYJ-40B | TYJ-30 | TYJ-40 |
Cutting range | Cutting off Cu/Al cable smaller than 300mm2 | Cutting off Cu/Al cable smaller than 600mm2 | Cutting off ACSR cable smaller than 800mm2 | Cutting off ACSR cable smaller than 800mm2 |
Al/Cu cable max.Φ100 mm |
Al/Cu cable max.Φ130 mm |
Cutting off Cu/Al cable smaller than 240mm2 | Cutting off steel wire ropes smaller than 100mm2 and ACSR small than 630mm2 | Cutting off Cu/Al armored cable smaller than 300mm2 and 1000pairs of communication cables |
ACSR 32mm | Strands steel wire smaller than 120mm2 | Strands steel wire smaller than 120mm2 |
Armored cable max.Φ100 mm |
Armored cable max.Φ130 mm |
|||||
Bolt Φ10mm | |||||||||
Steel wire ropes Φ8-16 | |||||||||
Length | 325-425mm | 350-450mm | 350-450mm | 550-730mm | 600-900mm | ||||
Weigth | 2.0kg | 1.9kg | 2.6kg | 2.6kg | 6.8kg | 7.0kg | 0.65kg | 3.5kg | 1kg |
Package | Plastic case | Fabric bag | Fabric bag | Fabric bag | Fabric bag | Steel case | Fabric bag | Fabric bag | Fabric bag |
Size |
240*40 *50mm |
33*15 *5.5cm |
38*17 *16cm |
38*17 *16cm |
55*27 *6.5cm |
60*31.5 *9.5cm |
350(510)* 120*45mm |
400(580)* 160*60mm |
330*120 *35mm |
